This class implements a concrete tool to select layer features using an extent. More...

#include <Selection.h>

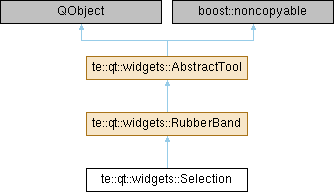

Inheritance diagram for te::qt::widgets::Selection:

Public Member Functions
Initializer Methods
Methods related to instantiation and destruction.
	Selection (MapDisplay display, const QCursor &cursor, const std::list< te::map::AbstractLayerPtr > &layers, QObject parent=0)
	It constructs a selection tool associated with the given map display.

	~Selection ()
	Destructor.

Initializer Methods
Methods related to instantiation and destruction.
virtual void	init ()

Protected Attributes
AbstractTool Methods
Methods related with tool behavior.
QPoint	m_origin
	Origin point on mouse pressed.

QRectF	m_rect
	The boundary rectangle managed by the rubber band.

QPen	m_pen
	The pen used to draw the rubber band shape.

QBrush	m_brush
	The brush used to draw the rubber band shape.

AbstractTool Methods
Methods related with tool behavior.
std::list< te::map::AbstractLayerPtr >	m_layers
	The layer list that will be selected.

bool	m_selectionStarted
	Flag that indicates if selection operation was started.

bool	m_keepPreviousSelection
	Flag that indicates if the tool must keep the previous selection.

bool	m_selectionByPointing
	Flag that indicates if the selection is by pointing.

bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

void	setLayers (const std::list< te::map::AbstractLayerPtr > &layers)

void	executeSelection (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &e)

void	layerSelectedObjectsChanged (const te::map::AbstractLayerPtr &layer)

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object.

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor.

MapDisplay *	m_display
	The map display associated with the tool.

QCursor	m_cursor
	The default tool cursor.

QCursor	m_curCursor
	The current mapdisplay cursor.

Detailed Description

This class implements a concrete tool to select layer features using an extent.

Definition at line 65 of file Selection.h.

Constructor & Destructor Documentation

◆ Selection()

te::qt::widgets::Selection::Selection	(	MapDisplay *	display,
		const QCursor &	cursor,
		const std::list< te::map::AbstractLayerPtr > &	layers,
		QObject *	parent = `0`
	)

It constructs a selection tool associated with the given map display.

Parameters

display	The map display associated with the tool.
cursor	The tool cursor.
layer	The layer list that will be selected.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

◆ ~Selection()

te::qt::widgets::Selection::~Selection ( )

Destructor.

Member Function Documentation

◆ eventFilter()

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::edit::GeometriesUpdateTool, te::qt::widgets::Measure, te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

◆ executeSelection()

void te::qt::widgets::Selection::executeSelection	(	const te::map::AbstractLayerPtr &	layer,
		const te::gm::Envelope &	e
	)

private

◆ init()

virtual void te::qt::widgets::AbstractTool::init ( )

virtualinherited

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::MoveGeometryTool, te::qt::widgets::CoordTracking, and te::qt::widgets::Measure.

◆ layerSelectedObjectsChanged

void te::qt::widgets::Selection::layerSelectedObjectsChanged ( const te::map::AbstractLayerPtr & layer )

signal

This signal is emitted when the layer selection changed.

◆ mouseDoubleClickEvent()

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::AggregateAreaTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::edit::CreatePolygonTool, te::edit::SplitPolygonTool, te::edit::SubtractAreaTool, te::edit::VertexTool, te::mnt::ProfileTools, te::qt::widgets::Measure, and te::qt::widgets::PolygonAcquire.

◆ mouseMoveEvent()

bool te::qt::widgets::Selection::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::RubberBand.

◆ mousePressEvent()

bool te::qt::widgets::Selection::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::RubberBand.

◆ mouseReleaseEvent()

bool te::qt::widgets::Selection::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::RubberBand.

◆ setCursor()

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

◆ setLayers

void te::qt::widgets::Selection::setLayers ( const std::list< te::map::AbstractLayerPtr > & layers )

slot

Member Data Documentation

◆ m_brush

QBrush te::qt::widgets::RubberBand::m_brush

protectedinherited

The brush used to draw the rubber band shape.

Definition at line 95 of file RubberBand.h.

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 175 of file AbstractTool.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 174 of file AbstractTool.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 173 of file AbstractTool.h.

◆ m_keepPreviousSelection

bool te::qt::widgets::Selection::m_keepPreviousSelection

private

Flag that indicates if the tool must keep the previous selection.

Definition at line 123 of file Selection.h.

◆ m_layers

std::list<te::map::AbstractLayerPtr> te::qt::widgets::Selection::m_layers

private

The layer list that will be selected.

Definition at line 121 of file Selection.h.

◆ m_origin

QPoint te::qt::widgets::RubberBand::m_origin

protectedinherited

Origin point on mouse pressed.

Definition at line 92 of file RubberBand.h.

◆ m_pen

QPen te::qt::widgets::RubberBand::m_pen

protectedinherited

The pen used to draw the rubber band shape.

Definition at line 94 of file RubberBand.h.

◆ m_rect

QRectF te::qt::widgets::RubberBand::m_rect

protectedinherited

The boundary rectangle managed by the rubber band.

Definition at line 93 of file RubberBand.h.

◆ m_selectionByPointing

bool te::qt::widgets::Selection::m_selectionByPointing

private

Flag that indicates if the selection is by pointing.

Definition at line 124 of file Selection.h.

◆ m_selectionStarted

bool te::qt::widgets::Selection::m_selectionStarted

private

Flag that indicates if selection operation was started.

Definition at line 122 of file Selection.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/tools/Selection.h
