An atomic property like an integer or double. More...

#include <SimpleProperty.h>

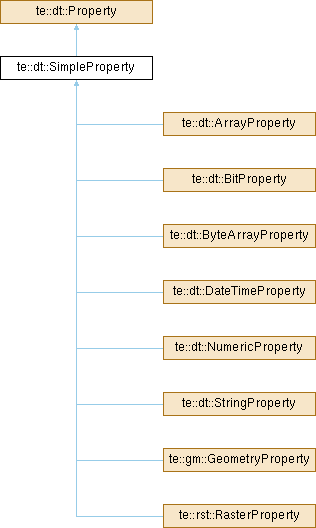

Inheritance diagram for te::dt::SimpleProperty:

Public Member Functions
virtual Property *	clone () const
	It returns a clone of the object.

const std::string &	getDatasetName () const
	It returns the name of the propery's dataset.

std::string *	getDefaultValue () const
	It returns the default value associated to the property, or NULL if none is associated.

unsigned int	getId () const
	It returns the property identifier.

const std::string &	getName () const
	It returns the property name.

Property *	getParent () const
	It returns the parent of this property, or NULL, if it doesn't have one.

int	getType () const
	It returns the property data type.

bool	has (Property *p) const
	It checks if the Property "p" is associated to this property or any other parent.

bool	isAutoNumber () const
	It returns true if the attribute is an autonumber, otherwise it returns false.

bool	isRequired () const
	It returns true if the attribute is required, otherwise it returns false.

SimpleProperty &	operator= (const SimpleProperty &rhs)
	Assignment operator.

void	setAutoNumber (bool a)
	It tells if the property is an autonumber or not.

void	setDatasetName (const std::string &dsName)
	It sets the property name.

void	setDefaultValue (std::string *d)
	It sets the default value associated to the property, or NULL if none is associated.

void	setId (unsigned int id)
	It sets the property identifier.

void	setName (const std::string &name)
	It sets the property name.

void	setParent (Property *p)
	It associate this property to the informed parent.

void	setRequired (bool r)
	It tells if the property is required or not.

	SimpleProperty (const SimpleProperty &rhs)
	Copy constructor.

	SimpleProperty (const std::string &name, int datatype, bool isRequired=false, std::string defaultValue=0, unsigned int id=0, Property parent=0)
	It constructs a new simple property.

virtual	~SimpleProperty ()
	Destructor.

Protected Attributes
std::string	m_datasetName
	The property's dataset name.

std::string *	m_defaultValue
	Default value.

unsigned int	m_id
	An identification number that can be used internally.

bool	m_isAutoNumber
	A flag that indicates if this is an autonumber or serial type.

bool	m_isRequired
	This flag indicates if the attribute is required or not.

std::string	m_name
	The property name.

Property *	m_parent
	The parent property type: it must be a CompositeProperty.

int	m_type
	The property data type.

Detailed Description

An atomic property like an integer or double.

See also: Property, CompositeProperty, NumericProperty, StringProperty, ArrayProperty, DateTimeProperty

Definition at line 47 of file SimpleProperty.h.

Constructor & Destructor Documentation

◆ SimpleProperty() [1/2]

te::dt::SimpleProperty::SimpleProperty	(	const std::string &	name,
		int	datatype,
		bool	isRequired = false,
		std::string *	defaultValue = 0,
		unsigned int	id = 0,
		Property *	parent = 0 )

It constructs a new simple property.

Parameters

name	The simple property name.
datatype	The property data type.
isRequired	Tells if the the property is required (mandatory) or not.
defaultValue	The default value to be used or NULL if none is informed.
id	The property identifier.
parent	A reference to the parent Property of the new object if it has one.

Postcondition: The simple property will take the ownership of the default value.

Warning: The identifier value (id) may be used by data source implementations. So, don't rely on its value!; By default, a simple property is not an autonumber (or serial).

References isRequired(), and te::dt::Property::Property().

Referenced by operator=(), and SimpleProperty().

◆ SimpleProperty() [2/2]

te::dt::SimpleProperty::SimpleProperty ( const SimpleProperty & rhs )

Copy constructor.

Parameters

rhs	The right-hand-side copy used to copy from.

References SimpleProperty().

◆ ~SimpleProperty()

virtual te::dt::SimpleProperty::~SimpleProperty ( )

virtual

Destructor.

Member Function Documentation

◆ clone()

virtual Property * te::dt::SimpleProperty::clone ( ) const

virtual

It returns a clone of the object.

For a simple type, this method will not preserve the parent Property pointer.

Returns: A clone of the object.

Implements te::dt::Property.

Reimplemented in te::dt::ArrayProperty, te::dt::BitProperty, te::dt::ByteArrayProperty, te::dt::DateTimeProperty, te::dt::NumericProperty, te::dt::StringProperty, te::gm::GeometryProperty, and te::rst::RasterProperty.

References te::dt::Property::Property().

◆ getDatasetName()

const std::string & te::dt::Property::getDatasetName ( ) const

inlineinherited

It returns the name of the propery's dataset.

Returns: The the propery's dataset name.

Definition at line 144 of file Property.h.

References m_datasetName.

◆ getDefaultValue()

std::string * te::dt::SimpleProperty::getDefaultValue ( ) const

inline

It returns the default value associated to the property, or NULL if none is associated.

Returns: The default value associated to the property, or NULL if none is associated.

Note: The caller of this method will not take the ownership of the given string.

Definition at line 127 of file SimpleProperty.h.

References m_defaultValue.

◆ getId()

unsigned int te::dt::Property::getId ( ) const

inlineinherited

It returns the property identifier.

Returns: A number used to identify the property.

Warning: The identifier value may be used by data source implementations. So, don't rely on its value!

Definition at line 109 of file Property.h.

References m_id.

◆ getName()

const std::string & te::dt::Property::getName ( ) const

inlineinherited

It returns the property name.

Returns: The property name.

Note: For DataSetTypes the name can have namespace prefix or schema name prefix, it will depend on the data source implementation.

Definition at line 127 of file Property.h.

References m_name.

◆ getParent()

Property * te::dt::Property::getParent ( ) const

inlineinherited

It returns the parent of this property, or NULL, if it doesn't have one.

Returns: The parent of this property, or NULL, if it doesn't have one.

Definition at line 168 of file Property.h.

References m_parent, and Property().

◆ getType()

int te::dt::Property::getType ( ) const

inlineinherited

It returns the property data type.

Returns: The property data type.

Definition at line 161 of file Property.h.

References m_type.

Referenced by te::dt::CompositeProperty::findFirstPropertyOfType().

◆ has()

bool te::dt::SimpleProperty::has ( Property * p ) const

virtual

It checks if the Property "p" is associated to this property or any other parent.

This method can be used to ask if a given Property belongs to a more complex type (like: CompositeProperty or DataSetType).

Parameters

p	The Property we are checking.

Returns: True if the given Property "p" is associated to to this Property, otherwise, returns false.

Implements te::dt::Property.

References te::dt::Property::Property().

◆ isAutoNumber()

bool te::dt::SimpleProperty::isAutoNumber ( ) const

inline

It returns true if the attribute is an autonumber, otherwise it returns false.

Returns: True if the attribute is an autonumber, otherwise it returns false.

Definition at line 111 of file SimpleProperty.h.

References m_isAutoNumber.

◆ isRequired()

bool te::dt::SimpleProperty::isRequired ( ) const

inline

It returns true if the attribute is required, otherwise it returns false.

Returns: True if the attribute is required, otherwise it returns false.

Definition at line 97 of file SimpleProperty.h.

References m_isRequired.

Referenced by te::dt::ArrayProperty::ArrayProperty(), te::dt::BitProperty::BitProperty(), te::dt::ByteArrayProperty::ByteArrayProperty(), te::dt::DateTimeProperty::DateTimeProperty(), te::dt::DateTimeProperty::DateTimeProperty(), te::dt::DateTimeProperty::DateTimeProperty(), te::dt::DateTimeProperty::DateTimeProperty(), te::gm::GeometryProperty::GeometryProperty(), te::gm::GeometryProperty::GeometryProperty(), te::dt::NumericProperty::NumericProperty(), te::rst::RasterProperty::RasterProperty(), te::rst::RasterProperty::RasterProperty(), SimpleProperty(), and te::dt::StringProperty::StringProperty().

◆ operator=()

SimpleProperty & te::dt::SimpleProperty::operator= ( const SimpleProperty & rhs )

Assignment operator.

Parameters

rhs	The right-hand-side copy used to copy from.

Returns: A reference to this object.

References SimpleProperty().

◆ setAutoNumber()

void te::dt::SimpleProperty::setAutoNumber ( bool a )

inline

It tells if the property is an autonumber or not.

Parameters

a	If true the property is marked as an autonumber (serial), otherwise it is not.

Definition at line 118 of file SimpleProperty.h.

References m_isAutoNumber.

Referenced by te::pgis::Convert2TerraLib().

◆ setDatasetName()

void te::dt::Property::setDatasetName ( const std::string & dsName )

inlineinherited

It sets the property name.

Parameters

name	The new property name.

Warning: Take care when calling this method for a DataSetType associated to a DataSourceCatalog. Prefer using the rename method on the DataSourceCatalog API instead of using this method.

Definition at line 154 of file Property.h.

References m_datasetName.

◆ setDefaultValue()

void te::dt::SimpleProperty::setDefaultValue ( std::string * d )

It sets the default value associated to the property, or NULL if none is associated.

Parameters

d	The default value associated to the property, or NULL if none is associated.

Note: The SimpleProperty qill take the ownership of the given string.

◆ setId()

void te::dt::Property::setId ( unsigned int id )

inlineinherited

It sets the property identifier.

Parameters

id	A number used to identify the property.

Warning: The identifier value may be used by data source implementations. So, don't rely on its value!

Definition at line 118 of file Property.h.

References m_id.

◆ setName()

void te::dt::Property::setName ( const std::string & name )

inlineinherited

It sets the property name.

Parameters

name	The new property name.

Warning: Take care when calling this method for a DataSetType associated to a DataSourceCatalog. Prefer using the rename method on the DataSourceCatalog API instead of using this method.

Definition at line 137 of file Property.h.

References m_name.

◆ setParent()

void te::dt::Property::setParent ( Property * p )

inlineinherited

It associate this property to the informed parent.

Parameters

p	Teh parent property.

Warning: Don't use this method without knowing the internal details of its use.

Definition at line 177 of file Property.h.

References m_parent, and Property().

◆ setRequired()

void te::dt::SimpleProperty::setRequired ( bool r )

inline

It tells if the property is required or not.

Parameters

r	If true the property is marked as required, otherwise it is not required.

Definition at line 104 of file SimpleProperty.h.

References m_isRequired.

Member Data Documentation

◆ m_datasetName

std::string te::dt::Property::m_datasetName

protectedinherited

The property's dataset name.

Definition at line 208 of file Property.h.

Referenced by getDatasetName(), and setDatasetName().

◆ m_defaultValue

std::string* te::dt::SimpleProperty::m_defaultValue

protected

Default value.

Definition at line 164 of file SimpleProperty.h.

Referenced by getDefaultValue().

◆ m_id

unsigned int te::dt::Property::m_id

protectedinherited

An identification number that can be used internally.

Definition at line 205 of file Property.h.

Referenced by getId(), and setId().

◆ m_isAutoNumber

bool te::dt::SimpleProperty::m_isAutoNumber

protected

A flag that indicates if this is an autonumber or serial type.

Definition at line 163 of file SimpleProperty.h.

Referenced by isAutoNumber(), and setAutoNumber().

◆ m_isRequired

bool te::dt::SimpleProperty::m_isRequired

protected

This flag indicates if the attribute is required or not.

Definition at line 162 of file SimpleProperty.h.

Referenced by isRequired(), and setRequired().

◆ m_name

std::string te::dt::Property::m_name

protectedinherited

The property name.

Definition at line 207 of file Property.h.

Referenced by getName(), and setName().

◆ m_parent

Property* te::dt::Property::m_parent

protectedinherited

The parent property type: it must be a CompositeProperty.

Definition at line 204 of file Property.h.

Referenced by getParent(), and setParent().

◆ m_type

int te::dt::Property::m_type

protectedinherited

The property data type.

Definition at line 206 of file Property.h.

Referenced by getType().

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/datatype/SimpleProperty.h

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SimpleProperty() [1/2]

◆ SimpleProperty() [2/2]

◆ ~SimpleProperty()

Member Function Documentation

◆ clone()

◆ getDatasetName()

◆ getDefaultValue()

◆ getId()

◆ getName()

◆ getParent()

◆ getType()

◆ has()

◆ isAutoNumber()

◆ isRequired()

◆ operator=()

◆ setAutoNumber()

◆ setDatasetName()

◆ setDefaultValue()

◆ setId()

◆ setName()

◆ setParent()

◆ setRequired()

Member Data Documentation

◆ m_datasetName

◆ m_defaultValue

◆ m_id

◆ m_isAutoNumber

◆ m_isRequired

◆ m_name

◆ m_parent

◆ m_type
