2D Geometric transformation base class. More...

#include <GeometricTransformation.h>

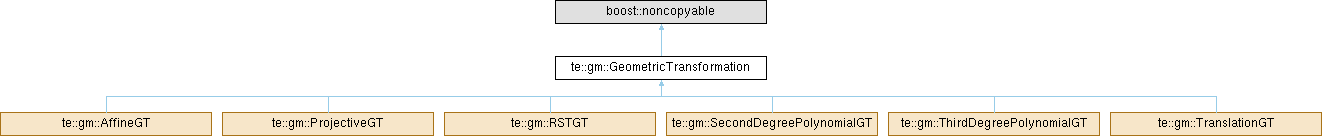

Inheritance diagram for te::gm::GeometricTransformation:

Public Member Functions
virtual GeometricTransformation *	clone () const =0
	Creat a clone copy of this instance.

void	directMap (const Coord2D &pt1, Coord2D &pt2) const
	Direct mapping (from pt1 space into pt2 space).

void	directMap (const double &pt1X, const double &pt1Y, double &pt2X, double &pt2Y) const
	Direct mapping ( from pt1 space into pt2 space ).

void	directMap (const GTParameters &params, const Coord2D &pt1, Coord2D &pt2) const
	Direct mapping (from pt1 space into pt2 space).

virtual void	directMap (const GTParameters &params, const double &pt1X, const double &pt1Y, double &pt2X, double &pt2Y) const =0
	Direct mapping (from pt1 space into pt2 space).

double	getDirectMappingError (const GTParameters::TiePoint &tiePoint) const
	Calculates the direct mapping error for the supplied tie-point.

double	getDirectMappingError (const GTParameters::TiePoint &tiePoint, const GTParameters &params) const
	Calculates the direct mapping error for the supplied tie-point.

double	getDirectMapRMSE () const
	Calculates root mean square direct mapping error.

double	getDirectMapRMSE (const GTParameters &params) const
	Calculates root mean square direct mapping error for the supplied parameters.

double	getDirectMapRMSE (const std::vector< GTParameters::TiePoint > &tiePoints) const
	Calculates root mean square direct mapping error for the supplied tie-points.

double	getDirectMapRMSE (const std::vector< GTParameters::TiePoint > &tiePoints, const GTParameters &params) const
	Calculates root mean square direct mapping error for the supplied tie-points using the supplied parameters.

double	getInverseMappingError (const GTParameters::TiePoint &tiePoint) const
	Calculates the inverse mapping error for the supplied tie-point.

double	getInverseMappingError (const GTParameters::TiePoint &tiePoint, const GTParameters &params) const
	Calculates the inverse mapping error for the supplied tie-point.

double	getInverseMapRMSE () const
	Calculates root mean square inverse mapping error.

double	getInverseMapRMSE (const GTParameters &params) const
	Calculates root mean square inverse mapping error for the supplied parameters.

double	getInverseMapRMSE (const std::vector< GTParameters::TiePoint > &tiePoints) const
	Calculates root mean square inverse mapping error for the supplied tie-points.

double	getInverseMapRMSE (const std::vector< GTParameters::TiePoint > &tiePoints, const GTParameters &params) const
	Calculates root mean square inverse mapping error for the supplied tie-points using the supplied parameters.

double	getMaxDirectMappingError () const
	Calculates the current transformation maximum direct mapping error.

double	getMaxDirectMappingError (const GTParameters &params) const
	Calculates maximum direct mapping error for the supplied parameters.

double	getMaxInverseMappingError () const
	Calculates the current transformation maximum inverse mapping error.

double	getMaxInverseMappingError (const GTParameters &params) const
	Calculates maximum inverse mapping error for the supplied parameters.

virtual unsigned int	getMinRequiredTiePoints () const =0
	Returns the minimum number of required tie-points for the current transformation.

virtual const std::string &	getName () const =0
	Returns the current transformation name.

const GTParameters &	getParameters () const
	Returns a reference of the current internal transformation parameters.

bool	initialize (const GTParameters &newParameters)
	Initialize the current transformation following the new supplied parameters.

void	inverseMap (const Coord2D &pt2, Coord2D &pt1) const
	Inverse mapping (from pt2 space into pt1 space).

void	inverseMap (const double &pt2X, const double &pt2Y, double &pt1X, double &pt1Y) const
	Inverse mapping (from pt2 space into pt1 space).

void	inverseMap (const GTParameters &params, const Coord2D &pt2, Coord2D &pt1) const
	Inverse mapping ( from pt2 space into pt1 space ).

virtual void	inverseMap (const GTParameters &params, const double &pt2X, const double &pt2Y, double &pt1X, double &pt1Y) const =0
	Inverse mapping (from pt2 space into pt1 space).

bool	isValid () const
	Tells if the current instance has a valid transformation.

virtual bool	isValid (const GTParameters &params) const =0
	Verifies if the supplied parameters already has a valid transformation.

virtual	~GeometricTransformation ()
	Virtual destructor.

Protected Member Functions
virtual bool	computeParameters (GTParameters &params) const =0
	Calculate the transformation parameters following the new supplied tie-points.

	GeometricTransformation ()
	Default constructor.

Protected Attributes
GTParameters	m_internalParameters
	The current internal parameters.

Friends
class	GTFilter

Detailed Description

2D Geometric transformation base class.

Definition at line 56 of file GeometricTransformation.h.

Constructor & Destructor Documentation

◆ ~GeometricTransformation()

virtual te::gm::GeometricTransformation::~GeometricTransformation ( )

virtual

Virtual destructor.

◆ GeometricTransformation()

te::gm::GeometricTransformation::GeometricTransformation ( )

protected

Default constructor.

Referenced by te::gm::AffineGT::clone(), clone(), te::gm::ProjectiveGT::clone(), te::gm::RSTGT::clone(), te::gm::SecondDegreePolynomialGT::clone(), te::gm::ThirdDegreePolynomialGT::clone(), and te::gm::TranslationGT::clone().

Member Function Documentation

◆ clone()

virtual GeometricTransformation * te::gm::GeometricTransformation::clone ( ) const

pure virtual

Creat a clone copy of this instance.

Returns: A clone copy of this instance (the caller of this method must take the ownership of the returned object and delete it when appropriate.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

References GeometricTransformation().

◆ computeParameters()

virtual bool te::gm::GeometricTransformation::computeParameters ( GTParameters & params ) const

protectedpure virtual

Calculate the transformation parameters following the new supplied tie-points.

Parameters

params Transformation parameters.

Returns: true if OK, false on errors.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

◆ directMap() [1/4]

void te::gm::GeometricTransformation::directMap	(	const Coord2D &	pt1,
		Coord2D &	pt2 ) const

inline

Direct mapping (from pt1 space into pt2 space).

Parameters

pt1	pt1 coordinate.
pt2	pt2 coordinate.

Definition at line 161 of file GeometricTransformation.h.

References directMap(), isValid(), m_internalParameters, te::gm::Coord2D::x, and te::gm::Coord2D::y.

◆ directMap() [2/4]

void te::gm::GeometricTransformation::directMap	(	const double &	pt1X,
		const double &	pt1Y,
		double &	pt2X,
		double &	pt2Y ) const

inline

Direct mapping ( from pt1 space into pt2 space ).

Parameters

pt1X	pt1 X coordinate.
pt1Y	pt1 Y coordinate.
pt2X	pt2 X coordinate.
pt2Y	pt2 Y coordinate.

Definition at line 133 of file GeometricTransformation.h.

References directMap(), isValid(), and m_internalParameters.

◆ directMap() [3/4]

void te::gm::GeometricTransformation::directMap	(	const GTParameters &	params,
		const Coord2D &	pt1,
		Coord2D &	pt2 ) const

inline

Direct mapping (from pt1 space into pt2 space).

Parameters

params	Transformation parameters.
pt1	pt1 coordinate.
pt2	pt2 coordinate.

Definition at line 150 of file GeometricTransformation.h.

References directMap(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

◆ directMap() [4/4]

virtual void te::gm::GeometricTransformation::directMap	(	const GTParameters &	params,
		const double &	pt1X,
		const double &	pt1Y,
		double &	pt2X,
		double &	pt2Y ) const

pure virtual

Direct mapping (from pt1 space into pt2 space).

Parameters

params	Transformation parameters.
pt1X	pt1 X coordinate.
pt1Y	pt1 Y coordinate.
pt2X	pt2 X coordinate.
pt2Y	pt2 Y coordinate.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

Referenced by directMap(), directMap(), and directMap().

◆ getDirectMappingError() [1/2]

double te::gm::GeometricTransformation::getDirectMappingError ( const GTParameters::TiePoint & tiePoint ) const

inline

Calculates the direct mapping error for the supplied tie-point.

Parameters

tiePoint The tie-point.

Returns: The current direct mapping error.

Definition at line 374 of file GeometricTransformation.h.

References getDirectMappingError(), and m_internalParameters.

◆ getDirectMappingError() [2/2]

double te::gm::GeometricTransformation::getDirectMappingError	(	const GTParameters::TiePoint &	tiePoint,
		const GTParameters &	params ) const

Calculates the direct mapping error for the supplied tie-point.

Parameters

tiePoint	The tie-point.
params	Transformation parameters.

Returns: The current maximum direct mapping error.

Referenced by getDirectMappingError().

◆ getDirectMapRMSE() [1/4]

double te::gm::GeometricTransformation::getDirectMapRMSE ( ) const

inline

Calculates root mean square direct mapping error.

Returns: The root mean square error.

Definition at line 305 of file GeometricTransformation.h.

References getDirectMapRMSE(), and m_internalParameters.

◆ getDirectMapRMSE() [2/4]

double te::gm::GeometricTransformation::getDirectMapRMSE ( const GTParameters & params ) const

inline

Calculates root mean square direct mapping error for the supplied parameters.

Parameters

params Transformation parameters.

Returns: The root mean square error.

Definition at line 283 of file GeometricTransformation.h.

References getDirectMapRMSE(), and te::gm::GTParameters::m_tiePoints.

◆ getDirectMapRMSE() [3/4]

double te::gm::GeometricTransformation::getDirectMapRMSE ( const std::vector< GTParameters::TiePoint > & tiePoints ) const

inline

Calculates root mean square direct mapping error for the supplied tie-points.

Parameters

tiePoints The tie-points.

Returns: The root mean square error.

Definition at line 295 of file GeometricTransformation.h.

References getDirectMapRMSE(), and m_internalParameters.

◆ getDirectMapRMSE() [4/4]

double te::gm::GeometricTransformation::getDirectMapRMSE	(	const std::vector< GTParameters::TiePoint > &	tiePoints,
		const GTParameters &	params ) const

Calculates root mean square direct mapping error for the supplied tie-points using the supplied parameters.

Parameters

tiePoints	The tie-points.
params	Transformation parameters.

Returns: The root mean square error.

Referenced by getDirectMapRMSE(), getDirectMapRMSE(), and getDirectMapRMSE().

◆ getInverseMappingError() [1/2]

double te::gm::GeometricTransformation::getInverseMappingError ( const GTParameters::TiePoint & tiePoint ) const

inline

Calculates the inverse mapping error for the supplied tie-point.

Parameters

tiePoint The tie-point.

Returns: The current inverse mapping error.

Definition at line 397 of file GeometricTransformation.h.

References getInverseMappingError(), and m_internalParameters.

◆ getInverseMappingError() [2/2]

double te::gm::GeometricTransformation::getInverseMappingError	(	const GTParameters::TiePoint &	tiePoint,
		const GTParameters &	params ) const

Calculates the inverse mapping error for the supplied tie-point.

Parameters

tiePoint	The tie-point.
params	Transformation parameters.

Returns: The current maximum inverse mapping error.

Referenced by getInverseMappingError().

◆ getInverseMapRMSE() [1/4]

double te::gm::GeometricTransformation::getInverseMapRMSE ( ) const

inline

Calculates root mean square inverse mapping error.

Returns: The root mean square error.

Definition at line 351 of file GeometricTransformation.h.

References getInverseMapRMSE(), and m_internalParameters.

◆ getInverseMapRMSE() [2/4]

double te::gm::GeometricTransformation::getInverseMapRMSE ( const GTParameters & params ) const

inline

Calculates root mean square inverse mapping error for the supplied parameters.

Parameters

params Transformation parameters.

Returns: The root mean square error.

Definition at line 329 of file GeometricTransformation.h.

References getInverseMapRMSE(), and te::gm::GTParameters::m_tiePoints.

◆ getInverseMapRMSE() [3/4]

double te::gm::GeometricTransformation::getInverseMapRMSE ( const std::vector< GTParameters::TiePoint > & tiePoints ) const

inline

Calculates root mean square inverse mapping error for the supplied tie-points.

Parameters

tiePoints The tie-points.

Returns: The root mean square error.

Definition at line 341 of file GeometricTransformation.h.

References getInverseMapRMSE(), and m_internalParameters.

◆ getInverseMapRMSE() [4/4]

double te::gm::GeometricTransformation::getInverseMapRMSE	(	const std::vector< GTParameters::TiePoint > &	tiePoints,
		const GTParameters &	params ) const

Calculates root mean square inverse mapping error for the supplied tie-points using the supplied parameters.

Parameters

tiePoints	The tie-points.
params	Transformation parameters.

Returns: The root mean square error.

Referenced by getInverseMapRMSE(), getInverseMapRMSE(), and getInverseMapRMSE().

◆ getMaxDirectMappingError() [1/2]

double te::gm::GeometricTransformation::getMaxDirectMappingError ( ) const

inline

Calculates the current transformation maximum direct mapping error.

Returns: The current maximum direct mapping error.

Definition at line 240 of file GeometricTransformation.h.

References getMaxDirectMappingError(), and m_internalParameters.

◆ getMaxDirectMappingError() [2/2]

double te::gm::GeometricTransformation::getMaxDirectMappingError ( const GTParameters & params ) const

Calculates maximum direct mapping error for the supplied parameters.

Parameters

params Transformation parameters.

Returns: The maximum direct mapping error for the supplied parameters.

Referenced by getMaxDirectMappingError().

◆ getMaxInverseMappingError() [1/2]

double te::gm::GeometricTransformation::getMaxInverseMappingError ( ) const

inline

Calculates the current transformation maximum inverse mapping error.

Returns: The current maximum inverse mapping error.

Definition at line 259 of file GeometricTransformation.h.

References getMaxInverseMappingError(), and m_internalParameters.

◆ getMaxInverseMappingError() [2/2]

double te::gm::GeometricTransformation::getMaxInverseMappingError ( const GTParameters & params ) const

Calculates maximum inverse mapping error for the supplied parameters.

Parameters

params Transformation parameters.

Returns: The maximum inverse mapping error for the supplied parameters.

Referenced by getMaxInverseMappingError().

◆ getMinRequiredTiePoints()

virtual unsigned int te::gm::GeometricTransformation::getMinRequiredTiePoints ( ) const

pure virtual

Returns the minimum number of required tie-points for the current transformation.

Returns: The minimum number of required tie-points for the current transformation.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

◆ getName()

virtual const std::string & te::gm::GeometricTransformation::getName ( ) const

pure virtual

Returns the current transformation name.

Returns: The current transformation name.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

◆ getParameters()

const GTParameters & te::gm::GeometricTransformation::getParameters ( ) const

inline

Returns a reference of the current internal transformation parameters.

Returns: A reference of the current internal transformation parameters.

Definition at line 105 of file GeometricTransformation.h.

References m_internalParameters.

◆ initialize()

bool te::gm::GeometricTransformation::initialize ( const GTParameters & newParameters )

Initialize the current transformation following the new supplied parameters.

Parameters

newparams The new parameters.

Returns: true if OK, false on errors.

◆ inverseMap() [1/4]

void te::gm::GeometricTransformation::inverseMap	(	const Coord2D &	pt2,
		Coord2D &	pt1 ) const

inline

Inverse mapping (from pt2 space into pt1 space).

Parameters

pt2	pt2 coordinate.
pt1	pt1 coordinate.

Definition at line 219 of file GeometricTransformation.h.

References inverseMap(), isValid(), m_internalParameters, te::gm::Coord2D::x, and te::gm::Coord2D::y.

◆ inverseMap() [2/4]

void te::gm::GeometricTransformation::inverseMap	(	const double &	pt2X,
		const double &	pt2Y,
		double &	pt1X,
		double &	pt1Y ) const

inline

Inverse mapping (from pt2 space into pt1 space).

Parameters

pt1X	pt1 X coordinate.
pt1Y	pt1 Y coordinate.
pt2X	pt2 X coordinate.
pt2Y	pt2 Y coordinate.

Definition at line 191 of file GeometricTransformation.h.

References inverseMap(), isValid(), and m_internalParameters.

◆ inverseMap() [3/4]

void te::gm::GeometricTransformation::inverseMap	(	const GTParameters &	params,
		const Coord2D &	pt2,
		Coord2D &	pt1 ) const

inline

Inverse mapping ( from pt2 space into pt1 space ).

Parameters

params	Transformation parameters.
pt2	pt2 coordinate.
pt1	pt1 coordinate.

Definition at line 208 of file GeometricTransformation.h.

References inverseMap(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

◆ inverseMap() [4/4]

virtual void te::gm::GeometricTransformation::inverseMap	(	const GTParameters &	params,
		const double &	pt2X,
		const double &	pt2Y,
		double &	pt1X,
		double &	pt1Y ) const

pure virtual

Inverse mapping (from pt2 space into pt1 space).

Parameters

params	Transformation parameters.
pt1X	pt1 X coordinate.
pt1Y	pt1 Y coordinate.
pt2X	pt2 X coordinate.
pt2Y	pt2 Y coordinate.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

Referenced by inverseMap(), inverseMap(), and inverseMap().

◆ isValid() [1/2]

bool te::gm::GeometricTransformation::isValid ( ) const

inline

Tells if the current instance has a valid transformation.

Returns: true if a transformation is already defined, false otherwise.

Definition at line 86 of file GeometricTransformation.h.

References isValid(), and m_internalParameters.

◆ isValid() [2/2]

virtual bool te::gm::GeometricTransformation::isValid ( const GTParameters & params ) const

pure virtual

Verifies if the supplied parameters already has a valid transformation.

Parameters

params Transformation parameters.

Returns: true if a transformation is already defined, false otherwise.

Implemented in te::gm::AffineGT, te::gm::ProjectiveGT, te::gm::RSTGT, te::gm::SecondDegreePolynomialGT, te::gm::ThirdDegreePolynomialGT, and te::gm::TranslationGT.

Referenced by directMap(), directMap(), inverseMap(), inverseMap(), and isValid().

Friends And Related Symbol Documentation

◆ GTFilter

friend class GTFilter

friend

Definition at line 58 of file GeometricTransformation.h.

References GTFilter.

Referenced by GTFilter.

Member Data Documentation

◆ m_internalParameters

GTParameters te::gm::GeometricTransformation::m_internalParameters

protected

The current internal parameters.

Definition at line 432 of file GeometricTransformation.h.

Referenced by directMap(), directMap(), getDirectMappingError(), getDirectMapRMSE(), getDirectMapRMSE(), getInverseMappingError(), getInverseMapRMSE(), getInverseMapRMSE(), getMaxDirectMappingError(), getMaxInverseMappingError(), getParameters(), inverseMap(), inverseMap(), and isValid().

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/geometry/GeometricTransformation.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ~GeometricTransformation()

◆ GeometricTransformation()

Member Function Documentation

◆ clone()

◆ computeParameters()

◆ directMap() [1/4]

◆ directMap() [2/4]

◆ directMap() [3/4]

◆ directMap() [4/4]

◆ getDirectMappingError() [1/2]

◆ getDirectMappingError() [2/2]

◆ getDirectMapRMSE() [1/4]

◆ getDirectMapRMSE() [2/4]

◆ getDirectMapRMSE() [3/4]

◆ getDirectMapRMSE() [4/4]

◆ getInverseMappingError() [1/2]

◆ getInverseMappingError() [2/2]

◆ getInverseMapRMSE() [1/4]

◆ getInverseMapRMSE() [2/4]

◆ getInverseMapRMSE() [3/4]

◆ getInverseMapRMSE() [4/4]

◆ getMaxDirectMappingError() [1/2]

◆ getMaxDirectMappingError() [2/2]

◆ getMaxInverseMappingError() [1/2]

◆ getMaxInverseMappingError() [2/2]

◆ getMinRequiredTiePoints()

◆ getName()

◆ getParameters()

◆ initialize()

◆ inverseMap() [1/4]

◆ inverseMap() [2/4]

◆ inverseMap() [3/4]

◆ inverseMap() [4/4]

◆ isValid() [1/2]

◆ isValid() [2/2]

Friends And Related Symbol Documentation

◆ GTFilter

Member Data Documentation

◆ m_internalParameters
