A visitor for building an SQL statement from a given Query hierarchy. More...

#include <SQLVisitor.h>

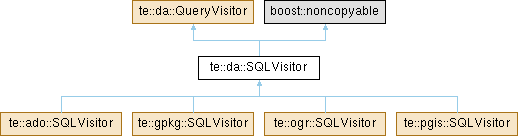

Inheritance diagram for te::da::SQLVisitor:

Public Member Functions
	SQLVisitor (const SQLDialect &dialect, std::string &sql)
	Default constructor.

virtual void	visit (const Cast &visited)

virtual void	visit (const DataSetName &visited)

virtual void	visit (const Expression &visited)

virtual void	visit (const Fields &visited)

virtual void	visit (const From &visited)

virtual void	visit (const FromItem &visited)

virtual void	visit (const Function &visited)

virtual void	visit (const GroupBy &visited)

virtual void	visit (const In &visited)

virtual void	visit (const Insert &visited)

virtual void	visit (const Join &visited)

virtual void	visit (const JoinCondition &visited)

virtual void	visit (const JoinConditionOn &visited)

virtual void	visit (const JoinConditionUsing &visited)

virtual void	visit (const Like &visited)

virtual void	visit (const Literal &visited)

virtual void	visit (const LiteralBool &visited)

virtual void	visit (const LiteralByteArray &visited)

virtual void	visit (const LiteralDateTime &visited)

virtual void	visit (const LiteralDouble &visited)

virtual void	visit (const LiteralEnvelope &visited)

virtual void	visit (const LiteralGeom &visited)

virtual void	visit (const LiteralInt16 &visited)

virtual void	visit (const LiteralInt32 &visited)

virtual void	visit (const LiteralInt64 &visited)

virtual void	visit (const LiteralString &visited)

virtual void	visit (const OrderBy &visited)

virtual void	visit (const PropertyName &visited)

virtual void	visit (const Query &visited)

virtual void	visit (const Select &visited)

virtual void	visit (const SelectExpression &visited)

virtual void	visit (const SubSelect &visited)

virtual void	visitDistinct (const Distinct &visited)

virtual	~SQLVisitor ()
	Virtual destructor.

Protected Attributes
const SQLDialect &	m_dialect
	The function catalog to use when translating the query.

std::string &	m_sql
	The buffer string where the query will be outputed.

Detailed Description

A visitor for building an SQL statement from a given Query hierarchy.

Each driver must implement a SQL dialect in order help this class to translate the query object to its specific dialect.

Definition at line 58 of file SQLVisitor.h.

Constructor & Destructor Documentation

◆ SQLVisitor()

te::da::SQLVisitor::SQLVisitor	(	const SQLDialect &	dialect,
		std::string &	sql )

inline

Default constructor.

Definition at line 65 of file SQLVisitor.h.

References m_dialect, and m_sql.

◆ ~SQLVisitor()

virtual te::da::SQLVisitor::~SQLVisitor ( )

inlinevirtual

Virtual destructor.

Reimplemented in te::ado::SQLVisitor, te::gpkg::SQLVisitor, te::ogr::SQLVisitor, and te::pgis::SQLVisitor.

Definition at line 68 of file SQLVisitor.h.

Member Function Documentation

◆ visit() [1/32]

virtual void te::da::SQLVisitor::visit ( const Cast & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [2/32]

virtual void te::da::SQLVisitor::visit ( const DataSetName & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::gpkg::SQLVisitor, and te::ogr::SQLVisitor.

◆ visit() [3/32]

virtual void te::da::SQLVisitor::visit ( const Expression & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [4/32]

virtual void te::da::SQLVisitor::visit ( const Fields & visited )

virtual

Reimplemented in te::ado::SQLVisitor.

◆ visit() [5/32]

virtual void te::da::SQLVisitor::visit ( const From & visited )

virtual

◆ visit() [6/32]

virtual void te::da::SQLVisitor::visit ( const FromItem & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [7/32]

virtual void te::da::SQLVisitor::visit ( const Function & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor.

◆ visit() [8/32]

virtual void te::da::SQLVisitor::visit ( const GroupBy & visited )

virtual

◆ visit() [9/32]

virtual void te::da::SQLVisitor::visit ( const In & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor.

◆ visit() [10/32]

virtual void te::da::SQLVisitor::visit ( const Insert & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [11/32]

virtual void te::da::SQLVisitor::visit ( const Join & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::gpkg::SQLVisitor, and te::ogr::SQLVisitor.

◆ visit() [12/32]

virtual void te::da::SQLVisitor::visit ( const JoinCondition & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [13/32]

virtual void te::da::SQLVisitor::visit ( const JoinConditionOn & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, te::gpkg::SQLVisitor, and te::ogr::SQLVisitor.

◆ visit() [14/32]

virtual void te::da::SQLVisitor::visit ( const JoinConditionUsing & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [15/32]

virtual void te::da::SQLVisitor::visit ( const Like & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [16/32]

virtual void te::da::SQLVisitor::visit ( const Literal & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [17/32]

virtual void te::da::SQLVisitor::visit ( const LiteralBool & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor.

◆ visit() [18/32]

virtual void te::da::SQLVisitor::visit ( const LiteralByteArray & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, and te::pgis::SQLVisitor.

◆ visit() [19/32]

virtual void te::da::SQLVisitor::visit ( const LiteralDateTime & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, te::ogr::SQLVisitor, and te::pgis::SQLVisitor.

◆ visit() [20/32]

virtual void te::da::SQLVisitor::visit ( const LiteralDouble & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [21/32]

virtual void te::da::SQLVisitor::visit ( const LiteralEnvelope & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, te::gpkg::SQLVisitor, te::ogr::SQLVisitor, and te::pgis::SQLVisitor.

◆ visit() [22/32]

virtual void te::da::SQLVisitor::visit ( const LiteralGeom & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, te::ogr::SQLVisitor, and te::pgis::SQLVisitor.

◆ visit() [23/32]

virtual void te::da::SQLVisitor::visit ( const LiteralInt16 & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [24/32]

virtual void te::da::SQLVisitor::visit ( const LiteralInt32 & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [25/32]

virtual void te::da::SQLVisitor::visit ( const LiteralInt64 & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [26/32]

virtual void te::da::SQLVisitor::visit ( const LiteralString & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor, and te::pgis::SQLVisitor.

◆ visit() [27/32]

virtual void te::da::SQLVisitor::visit ( const OrderBy & visited )

virtual

◆ visit() [28/32]

virtual void te::da::SQLVisitor::visit ( const PropertyName & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, te::gpkg::SQLVisitor, and te::ogr::SQLVisitor.

◆ visit() [29/32]

virtual void te::da::SQLVisitor::visit ( const Query & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [30/32]

virtual void te::da::SQLVisitor::visit ( const Select & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::gpkg::SQLVisitor, and te::ogr::SQLVisitor.

◆ visit() [31/32]

virtual void te::da::SQLVisitor::visit ( const SelectExpression & visited )

virtual

Implements te::da::QueryVisitor.

◆ visit() [32/32]

virtual void te::da::SQLVisitor::visit ( const SubSelect & visited )

virtual

Implements te::da::QueryVisitor.

◆ visitDistinct()

virtual void te::da::SQLVisitor::visitDistinct ( const Distinct & visited )

virtual

Reimplemented in te::gpkg::SQLVisitor.

Member Data Documentation

◆ m_dialect

const SQLDialect& te::da::SQLVisitor::m_dialect

protected

The function catalog to use when translating the query.

Definition at line 109 of file SQLVisitor.h.

Referenced by SQLVisitor().

◆ m_sql

std::string& te::da::SQLVisitor::m_sql

protected

The buffer string where the query will be outputed.

Definition at line 110 of file SQLVisitor.h.

Referenced by SQLVisitor().

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/dataaccess/query/SQLVisitor.h
