te::xsd::List Class Reference

It is used to define a simple type element as a list of values. More...

#include <List.h>

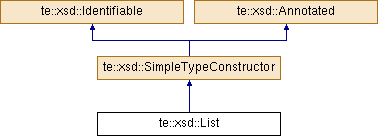

Inheritance diagram for te::xsd::List:

Public Member Functions
SimpleTypeConstructor *	clone () const
	It creates a clone of the object. More...
Annotation *	getAnnotation () const
	It returns the associated annotation. More...
std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...
QName *	getItemType () const
	It returns name of a built-in data type or simpleType element defined in this or another schema. More...
SimpleType *	getSimpleType () const
	It returns list internal simple type. More...
	List (Annotation *ann=0, std::string *id=0)
	Constructor. More...
	List (const List &rhs)
	Copy constructor. More...
List &	operator= (const List &rhs)
	Assignment operator. More...
void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...
void	setId (std::string *id)
	it sets the id. More...
void	setItemType (QName *name)
	It sets the name of a built-in data type or simpleType element defined in this or another schema. More...
void	setSimpleType (SimpleType *a)
	It sets the list internal simple type. More...
	~List ()
	Destructor. More...

Private Attributes
SimpleType *	m_internalSimpleType
	Used when the list has an internal simple type. (Optional if m_itemType is present) More...
QName *	m_itemType
	It specifies the name of a built-in data type or simpleType element defined in this or another schema. This attribute is not allowed if the content contains a simpleType element, otherwise it is required. More...

Detailed Description

It is used to define a simple type element as a list of values.

Definition at line 45 of file List.h.

Constructor & Destructor Documentation

te::xsd::List::List	(	Annotation *	ann = 0,
		std::string *	id = 0
	)

Constructor.

Parameters

ann	An annotation.
id	It specifies a unique ID for the element.

Note

The List object will take the ownership of the annotation and id.

Definition at line 25 of file List.cpp.

te::xsd::List::List

(

const List &

rhs

)

Copy constructor.

Parameters

rhs	Right-hand-side object.

Definition at line 32 of file List.cpp.

References te::xsd::SimpleType::clone(), m_internalSimpleType, and m_itemType.

te::xsd::List::~List

(

)

Destructor.

Definition at line 39 of file List.cpp.

Member Function Documentation

te::xsd::SimpleTypeConstructor * te::xsd::List::clone ( ) const

virtual

It creates a clone of the object.

Returns

A clone of the object. The caller will take the ownership of the returned pointer.

Implements te::xsd::SimpleTypeConstructor.

Definition at line 91 of file List.cpp.

te::xsd::Annotation * te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns

The associated annotation.

Definition at line 30 of file Annotated.cpp.

References te::xsd::Annotated::m_annotation.

std::string * te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

Definition at line 35 of file Identifiable.cpp.

te::xsd::QName * te::xsd::List::getItemType

(

)

const

It returns name of a built-in data type or simpleType element defined in this or another schema.

Returns

The name of a built-in data type or simpleType element defined in this or another schema.

Definition at line 63 of file List.cpp.

te::xsd::SimpleType * te::xsd::List::getSimpleType

(

)

const

It returns list internal simple type.

Returns

The list internal simple type.

Definition at line 68 of file List.cpp.

te::xsd::List & te::xsd::List::operator=

(

const List &

rhs

)

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns

A reference to this object.

Definition at line 45 of file List.cpp.

References te::xsd::SimpleType::clone(), m_internalSimpleType, m_itemType, and te::xsd::SimpleTypeConstructor::operator=().

void te::xsd::Annotated::setAnnotation ( Annotation *  ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

Definition at line 35 of file Annotated.cpp.

Referenced by te::xsd::serialize::ReadAnnotated().

void te::xsd::Identifiable::setId ( std::string *  id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

Definition at line 29 of file Identifiable.cpp.

References te::xsd::Identifiable::m_id.

Referenced by te::xsd::serialize::ReadIdentifiable().

void te::xsd::List::setItemType

(

QName *

name

)

It sets the name of a built-in data type or simpleType element defined in this or another schema.

Parameters

name	The name of a built-in data type or simpleType element defined in this or another schema.

Note

Setting a reference will turn to NULL the internal simpleType.

The List object will take the ownership of the given pointer.

Definition at line 73 of file List.cpp.

void te::xsd::List::setSimpleType

(

SimpleType *

a

)

It sets the list internal simple type.

Parameters

a	The list internal simple type.

Note

Setting a reference will turn to NULL the itemType.

The List object will take the ownership of the given pointer.

Definition at line 82 of file List.cpp.

Member Data Documentation

SimpleType* te::xsd::List::m_internalSimpleType

private

Used when the list has an internal simple type. (Optional if m_itemType is present)

Definition at line 117 of file List.h.

Referenced by List(), and operator=().

QName* te::xsd::List::m_itemType

private

It specifies the name of a built-in data type or simpleType element defined in this or another schema. This attribute is not allowed if the content contains a simpleType element, otherwise it is required.

Definition at line 116 of file List.h.

Referenced by List(), and operator=().

---

The documentation for this class was generated from the following files:

• C:/BB_TL5/terralib5/src/terralib/xsd/List.h
• C:/BB_TL5/terralib5/src/terralib/xsd/List.cpp
