te::layout::PropertyBrowser Class Referenceabstract

#include <PropertyBrowser.h>

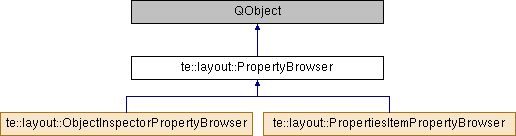

Inheritance diagram for te::layout::PropertyBrowser:
te::layout::ObjectInspectorPropertyBrowser te::layout::PropertiesItemPropertyBrowser

Signals

void changePropertyValue (QtProperty *property, QList< QtBrowserItem * > items)

void changePropertyValue (Property property)


Public Member Functions

virtual bool addProperty (Property property)

virtual void clearAll ()

virtual LayoutPropertyDataType getLayoutType (QVariant::Type type, std::string name="")

virtual Properties * getProperties ()

virtual Property getProperty (std::string name)

QtTreePropertyBrowser * getPropertyEditor ()

virtual std::string getPropGridSettingsName ()

QtVariantPropertyManager * getVariantPropertyManager ()

virtual QVariant::Type getVariantType (LayoutPropertyDataType dataType)

 PropertyBrowser (QObject *parent=0)

virtual bool removeProperty (Property property)

virtual void setHasGridWindows (bool hasWindows=false)

virtual ~PropertyBrowser ()


Protected Member Functions

virtual void addAttribute (QtVariantProperty *vproperty, Property property)

virtual void addPropertyItem (QtProperty *property, const QString &id)

virtual void blockOpenGridWindows (bool block)

virtual void changeVisibility (QList< QtBrowserItem * > items, bool visible)

virtual QVariant checkComplexType (QtVariantProperty *property)

virtual void createManager ()

virtual QtProperty * findProperty (std::string name)

virtual QVariant findPropertyValue (std::string name)

virtual void updateExpandState ()


Protected Attributes

bool m_hasGridWindows

QMap< QString, bool > m_idToExpanded

QMap< QString, QtProperty * > m_idToProperty

QtTreePropertyBrowser * m_propertyEditor

QMap< QtProperty *, QString > m_propertyToId

std::string m_propGridSettingsName

QtStringPropertyManager * m_strDlgManager

QtVariantPropertyManager * m_variantPropertyEditorManager


Private Slots

void onChangeFilter (const QString &filter)

virtual void onSetDlg (QWidget *parent, QtProperty *prop)=0

void propertyEditorValueChanged (QtProperty *property, const QVariant &value)


Detailed Description

Definition at line 55 of file PropertyBrowser.h.

Constructor & Destructor Documentation

te::layout::PropertyBrowser::PropertyBrowser ( QObject *  parent = 0)

Definition at line 43 of file PropertyBrowser.cpp.

References createManager().

te::layout::PropertyBrowser::~PropertyBrowser ( )
virtual

Definition at line 53 of file PropertyBrowser.cpp.

Member Function Documentation

void te::layout::PropertyBrowser::addAttribute ( QtVariantProperty *  vproperty,
Property  property
)
protectedvirtual

Definition at line 233 of file PropertyBrowser.cpp.

References te::layout::Variant::toString().

bool te::layout::PropertyBrowser::addProperty ( Property  property)
virtual

Reimplemented in te::layout::PropertiesItemPropertyBrowser.

Definition at line 181 of file PropertyBrowser.cpp.

References te::layout::DataTypeBool, te::layout::DataTypeColor, te::layout::DataTypeDouble, te::layout::DataTypeInt, te::layout::DataTypeString, te::layout::DataTypeStringList, te::color::RGBAColor::getBlue(), te::color::RGBAColor::getGreen(), te::layout::Property::getName(), te::color::RGBAColor::getRed(), te::layout::Property::getType(), te::layout::Property::getValue(), te::layout::Variant::toBool(), te::layout::Variant::toDouble(), te::layout::Variant::toInt(), and te::layout::Variant::toString().

Referenced by te::layout::PropertiesItemPropertyBrowser::addProperty().

void te::layout::PropertyBrowser::addPropertyItem ( QtProperty *  property,
const QString &  id
)
protectedvirtual

Definition at line 130 of file PropertyBrowser.cpp.

void te::layout::PropertyBrowser::blockOpenGridWindows ( bool  block)
protectedvirtual

Definition at line 488 of file PropertyBrowser.cpp.

void te::layout::PropertyBrowser::changePropertyValue ( QtProperty *  property,
QList< QtBrowserItem * >  items
)
signal
void te::layout::PropertyBrowser::changePropertyValue ( Property  property)
signal
void te::layout::PropertyBrowser::changeVisibility ( QList< QtBrowserItem * >  items,
bool  visible
)
protectedvirtual

Definition at line 160 of file PropertyBrowser.cpp.

QVariant te::layout::PropertyBrowser::checkComplexType ( QtVariantProperty *  property)
protectedvirtual

Definition at line 352 of file PropertyBrowser.cpp.

void te::layout::PropertyBrowser::clearAll ( )
virtual

Reimplemented in te::layout::PropertiesItemPropertyBrowser.

Definition at line 117 of file PropertyBrowser.cpp.

Referenced by te::layout::PropertiesItemPropertyBrowser::clearAll(), and te::layout::PropertiesItemPropertyBrowser::~PropertiesItemPropertyBrowser().

void te::layout::PropertyBrowser::createManager ( )
protectedvirtual

Definition at line 74 of file PropertyBrowser.cpp.

Referenced by PropertyBrowser().

QtProperty * te::layout::PropertyBrowser::findProperty ( std::string  name)
protectedvirtual

Definition at line 346 of file PropertyBrowser.cpp.

QVariant te::layout::PropertyBrowser::findPropertyValue ( std::string  name)
protectedvirtual

Definition at line 324 of file PropertyBrowser.cpp.

te::layout::LayoutPropertyDataType te::layout::PropertyBrowser::getLayoutType ( QVariant::Type  type,
std::string  name = ""
)
virtual

Definition at line 386 of file PropertyBrowser.cpp.

References te::layout::DataTypeBool, te::layout::DataTypeColor, te::layout::DataTypeDouble, te::layout::DataTypeGridSettings, te::layout::DataTypeInt, te::layout::DataTypeNone, te::layout::DataTypeString, and te::layout::DataTypeStringList.

te::layout::Properties * te::layout::PropertyBrowser::getProperties ( )
virtual

Definition at line 372 of file PropertyBrowser.cpp.

References te::layout::Properties::addProperty().

te::layout::Property te::layout::PropertyBrowser::getProperty ( std::string  name)
virtual

Definition at line 252 of file PropertyBrowser.cpp.

References te::layout::Property::addOption(), te::layout::Variant::clear(), te::layout::DataTypeBool, te::layout::DataTypeColor, te::layout::DataTypeDouble, te::layout::DataTypeGridSettings, te::layout::DataTypeInt, te::layout::DataTypeNone, te::layout::DataTypeString, te::layout::DataTypeStringList, te::color::RGBAColor::setColor(), te::layout::Property::setName(), te::layout::Property::setOptionChoice(), te::layout::Variant::setValue(), and te::layout::Property::setValue().

QtTreePropertyBrowser * te::layout::PropertyBrowser::getPropertyEditor ( )

Definition at line 171 of file PropertyBrowser.cpp.

Referenced by te::layout::ObjectInspectorOutside::ObjectInspectorOutside().

std::string te::layout::PropertyBrowser::getPropGridSettingsName ( )
virtual

Definition at line 477 of file PropertyBrowser.cpp.

QtVariantPropertyManager * te::layout::PropertyBrowser::getVariantPropertyManager ( )

Definition at line 176 of file PropertyBrowser.cpp.

QVariant::Type te::layout::PropertyBrowser::getVariantType ( LayoutPropertyDataType  dataType)
virtual

Definition at line 444 of file PropertyBrowser.cpp.

References te::layout::DataTypeBool, te::layout::DataTypeColor, te::layout::DataTypeDouble, te::layout::DataTypeGridSettings, te::layout::DataTypeInt, te::layout::DataTypeString, and te::layout::DataTypeStringList.

void te::layout::PropertyBrowser::onChangeFilter ( const QString &  filter)
privateslot

Definition at line 139 of file PropertyBrowser.cpp.

virtual void te::layout::PropertyBrowser::onSetDlg ( QWidget *  parent,
QtProperty *  prop
)
privatepure virtualslot
void te::layout::PropertyBrowser::propertyEditorValueChanged ( QtProperty *  property,
const QVariant &  value
)
privateslot

Definition at line 97 of file PropertyBrowser.cpp.

bool te::layout::PropertyBrowser::removeProperty ( Property  property)
virtual

Definition at line 247 of file PropertyBrowser.cpp.

void te::layout::PropertyBrowser::setHasGridWindows ( bool  hasWindows = false)
virtual

Definition at line 482 of file PropertyBrowser.cpp.

void te::layout::PropertyBrowser::updateExpandState ( )
protectedvirtual

Definition at line 106 of file PropertyBrowser.cpp.

Member Data Documentation

bool te::layout::PropertyBrowser::m_hasGridWindows
protected

Definition at line 119 of file PropertyBrowser.h.

QMap<QString, bool> te::layout::PropertyBrowser::m_idToExpanded
protected

Definition at line 115 of file PropertyBrowser.h.

QMap<QString, QtProperty*> te::layout::PropertyBrowser::m_idToProperty
protected

Definition at line 114 of file PropertyBrowser.h.

QtTreePropertyBrowser* te::layout::PropertyBrowser::m_propertyEditor
protected

Definition at line 110 of file PropertyBrowser.h.

QMap<QtProperty*, QString> te::layout::PropertyBrowser::m_propertyToId
protected

Definition at line 113 of file PropertyBrowser.h.

std::string te::layout::PropertyBrowser::m_propGridSettingsName
protected

Definition at line 118 of file PropertyBrowser.h.

QtStringPropertyManager* te::layout::PropertyBrowser::m_strDlgManager
protected

Definition at line 112 of file PropertyBrowser.h.

QtVariantPropertyManager* te::layout::PropertyBrowser::m_variantPropertyEditorManager
protected

Definition at line 111 of file PropertyBrowser.h.

The documentation for this class was generated from the following files:
