A raster band description. More...

#include <Band.h>

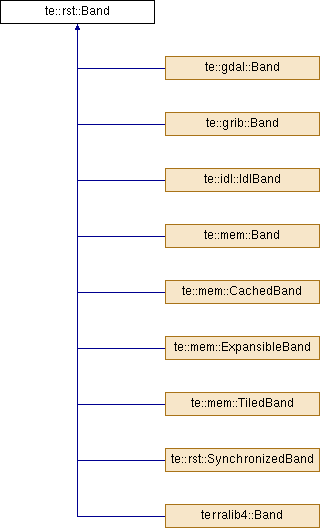

Inheritance diagram for te::rst::Band:

Public Member Functions
	Band (BandProperty *p, std::size_t idx)
	Constructor. More...

Band &	callOperator (std::complex< double >(*f)(std::complex< double >, std::complex< double >), Band &rhs)
	It calls a parameter function f to apply in all pixels from two bands, e.g. pixel = f(lhs, rhs);. More...

Band &	callOperator (std::complex< double >(*f)(std::complex< double >, std::complex< double >), std::complex< double > &cvalue)
	It calls a parameter function f to apply in all pixels from the band, e.g. pixel = f(lhs, rhs);. More...

virtual int	getBlockSize () const
	It returns the number of bytes ocuppied by a data block. More...

virtual std::map< double, unsigned >	getHistogramI (unsigned int rs=0, unsigned int cs=0, unsigned int rf=0, unsigned int cf=0, unsigned int b=0) const
	It computes and returns the histogram occurring values (imaginary part) in a window of the band. More...

virtual std::map< double, unsigned >	getHistogramR (unsigned int rs=0, unsigned int cs=0, unsigned int rf=0, unsigned int cf=0, unsigned int b=0) const
	It computes and returns the histogram occurring values (real part) in a window of the band. More...

virtual void	getIValue (unsigned int c, unsigned int r, double &value) const =0
	Returns the imaginary attribute value in a complex band of a cell. More...

virtual std::complex< double >	getMaxValue (unsigned int rs=0, unsigned int cs=0, unsigned int rf=0, unsigned int cf=0) const
	It computes and returns the maximum occurring value in a window of the band. More...

virtual std::complex< double >	getMeanValue (unsigned int rs=0, unsigned int cs=0, unsigned int rf=0, unsigned int cf=0) const
	It computes and returns the mean of the occurring values in a window of the band. More...

virtual std::complex< double >	getMinValue (unsigned int rs=0, unsigned int cs=0, unsigned int rf=0, unsigned int cf=0) const
	It computes and returns the minimum occurring value in a window of the band. More...

std::complex< double >	getOffsetValue () const
	It returns the offset values (real and imaginary) to be applied to the band. More...

BandProperty *	getProperty ()
	Returns the band property. More...

const BandProperty *	getProperty () const
	Returns the band property. More...

virtual Raster *	getRaster () const =0
	Returns the associated raster. More...

std::complex< double >	getScaleValue () const
	It returns the scale values (real and imaginary) to be applied to the band. More...

virtual std::complex< double >	getStdValue (unsigned int rs=0, unsigned int cs=0, unsigned int rf=0, unsigned int cf=0) const
	It computes and returns the standard deviation of the occurring values in a window of the band. More...

virtual void	getValue (unsigned int c, unsigned int r, double &value) const =0
	Returns the cell attribute value. More...

virtual void	getValue (unsigned int c, unsigned int r, std::complex< double > &value) const
	Returns the imaginary attribute value in a complex band of a cell. More...

virtual Band &	operator*= (Band &rhs)
	It returns the band product (pixel by pixel). More...

virtual Band &	operator*= (std::complex< double > &cvalue)
	It returns the product of a constant value to all pixels in the band. More...

virtual Band &	operator+= (Band &rhs)
	It returns the band sum (pixel by pixel). More...

virtual Band &	operator+= (std::complex< double > &cvalue)
	It returns the sum of a constant value to all pixels in the band. More...

virtual Band &	operator-= (Band &rhs)
	It returns the band subtraction (pixel by pixel). More...

virtual Band &	operator-= (std::complex< double > &cvalue)
	It returns the difference from all pixels in the band to a constant value (pixel - constant). More...

virtual Band &	operator/= (Band &rhs)
	It returns the band division (pixel by pixel). More...

virtual Band &	operator/= (std::complex< double > &cvalue)
	It returns the division of all pixels in the band by a constant value (pixel / constant). More...

virtual Band &	operator= (const Band &rhs)
	Assignment operator. More...

virtual void	read (int x, int y, void *buffer) const =0
	It reads a data block to the specified buffer. More...

virtual void *	read (int x, int y)=0
	It reads and returns a data block. More...

virtual void	setIValue (unsigned int c, unsigned int r, const double value)=0
	Sets the imaginary attribute value in a complex band of a cell. More...

void	setOffsetValue (const std::complex< double > o)
	Sets the offset values (real and imaginary) to be applied to the band. More...

void	setScaleValue (const std::complex< double > s)
	Sets the scale values (real and imaginary) to be applied to the band. More...

virtual void	setValue (unsigned int c, unsigned int r, const double value)=0
	Sets the cell attribute value. More...

virtual void	setValue (unsigned int c, unsigned int r, const std::complex< double > &value)
	Sets the imaginary attribute value in a complex band of a cell. More...

virtual void	write (int x, int y, void *buffer)=0
	It writes a data block from the specified buffer. More...

virtual	~Band ()
	Virtual destructor. More...

Protected Member Functions
	Band (const Band &rhs)
	Copy constructor. More...

Protected Attributes
std::size_t	m_idx
	The band index. More...

BandProperty *	m_property
	The band information. More...

Detailed Description

A raster band description.

The raster band describes how to interpret (and use) values that can be associated to each element of a raster, in one given dimension (e.g. a band of multi-hiperspectral remote sensing image). Each instance of this class refers to a particular dimension. This implementation defines a set of information commonly used to describe any raster.

See also: Raster, BandProperty

Definition at line 63 of file Band.h.

Constructor & Destructor Documentation

te::rst::Band::Band	(	BandProperty *	p,
		std::size_t	idx
	)

Constructor.

Parameters

p	The band property. The Band will take its ownership.
idx	The band index.

Warning: The class takes the ownership of the passed pointer. Do not pass a null pointer.

Definition at line 35 of file Band.cpp.

te::rst::Band::~Band ( )

virtual

Virtual destructor.

Reimplemented in te::gdal::Band, te::mem::Band, te::grib::Band, and terralib4::Band.

Definition at line 41 of file Band.cpp.

te::rst::Band::Band ( const Band & rhs )

protected

Copy constructor.

Parameters

rhs	The right-hand-side copy used to copy from.

Definition at line 585 of file Band.cpp.

References m_property.

Member Function Documentation

te::rst::Band & te::rst::Band::callOperator	(	std::complex< double >(*)(std::complex< double >, std::complex< double >)	f,
		Band &	rhs
	)

It calls a parameter function f to apply in all pixels from two bands, e.g. pixel = f(lhs, rhs);.

Parameters

(*f)	a function with the signature complex<double>(*f)(complex<double>, complex<double>)
rhs	The rhs band to apply the function.

Returns: The resultant band.

Definition at line 380 of file Band.cpp.

References te::rst::Raster::getNumberOfColumns(), te::rst::Raster::getNumberOfRows(), getProperty(), getRaster(), getValue(), te::rst::BandProperty::m_noDataValue, te::common::RWAccess, and te::common::WAccess.

te::rst::Band & te::rst::Band::callOperator	(	std::complex< double >(*)(std::complex< double >, std::complex< double >)	f,
		std::complex< double > &	cvalue
	)

It calls a parameter function f to apply in all pixels from the band, e.g. pixel = f(lhs, rhs);.

Parameters

(*f)	a function with the signature complex<double>(*f)(complex<double>, complex<double>)
cvalue	The constant value that will work with the generic function.

Returns: The resultant band.

Definition at line 450 of file Band.cpp.

References te::common::RWAccess, and te::common::WAccess.

int te::rst::Band::getBlockSize ( ) const

virtual

It returns the number of bytes ocuppied by a data block.

Reimplemented in te::mem::Band.

Definition at line 572 of file Band.cpp.

References te::rst::GetPixelSize().

Referenced by te::gdal::Band::Band(), te::rst::BandIteratorWindow< T >::BandIteratorWindow(), te::rp::Blender::blendIntoRaster1(), te::mem::CachedBand::CachedBand(), te::rst::Copy(), te::rp::GetCovarianceValueThread(), te::rp::GetMeanValueThread(), te::rp::GetStdDevValueThread(), te::rst::SynchronizedBandBlocksManager::initialize(), te::gdal::Band::operator=(), te::rp::Contrast::remapBandLevels(), te::rp::RemapValuesThread(), te::rst::SynchronizedBand::SynchronizedBand(), and te::mem::TiledBand::TiledBand().

std::map< double, unsigned > te::rst::Band::getHistogramI	(	unsigned int	rs = `0`,
		unsigned int	cs = `0`,
		unsigned int	rf = `0`,
		unsigned int	cf = `0`,
		unsigned int	b = `0`
	)		const

virtual

It computes and returns the histogram occurring values (imaginary part) in a window of the band.

Parameters

rs	The starting row.
cs	The starting column.
rf	The final row.
cf	The final column.
b	The number of bins (intervals from minimum pixel to maximum). When b = 0, the histogram will be divided according to all pixel values.

Note: This method without parameters will compute for the entire raster band.

Warning: The caller is responsible for providing correct values for the range [rs, cs x rf, cf].

Returns: The histogram of the occurring values (imaginary part) in the window.

Definition at line 276 of file Band.cpp.

Referenced by te::rst::RasterSummaryManager::get().

std::map< double, unsigned > te::rst::Band::getHistogramR	(	unsigned int	rs = `0`,
		unsigned int	cs = `0`,
		unsigned int	rf = `0`,
		unsigned int	cf = `0`,
		unsigned int	b = `0`
	)		const

virtual

It computes and returns the histogram occurring values (real part) in a window of the band.

Parameters

rs	The starting row.
cs	The starting column.
rf	The final row.
cf	The final column.
b	The number of bins (intervals from minimum pixel to maximum). When b = 0, the histogram will be divided according to all pixel values.

Note: This method without parameters will compute for the entire raster band.

Warning: The caller is responsible for providing correct values for the range [rs, cs x rf, cf].

Returns: The histogram of the occurring values (real part) in the window.

Definition at line 202 of file Band.cpp.

Referenced by te::rst::RasterSummaryManager::get().

virtual void te::rst::Band::getIValue	(	unsigned int	c,
		unsigned int	r,
		double &	value
	)		const

pure virtual

Returns the imaginary attribute value in a complex band of a cell.

Parameters

c	The column location of the cell.
r	The row location of the cell.
value	The attribute value to be assigned.

Warning: The caller is responsible for providing correct values for the range [c x r].

Exceptions

Exception Subclasses may throw an exception if the data value can not be read.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

std::complex< double > te::rst::Band::getMaxValue	(	unsigned int	rs = `0`,
		unsigned int	cs = `0`,
		unsigned int	rf = `0`,
		unsigned int	cf = `0`
	)		const

virtual

It computes and returns the maximum occurring value in a window of the band.

Parameters

rs	The starting row.
cs	The starting column.
rf	The final row.
cf	The final column.

Note: This method without parameters will compute for the entire raster band.

Warning: The caller is responsible for providing correct values for the range [rs, cs x rf, cf].

Returns: The maximum occurring value in the window, real and imaginary (if present).

Definition at line 109 of file Band.cpp.

Referenced by te::rst::RasterSummaryManager::get(), and te::rp::NormalizeRaster().

std::complex< double > te::rst::Band::getMeanValue	(	unsigned int	rs = `0`,
		unsigned int	cs = `0`,
		unsigned int	rf = `0`,
		unsigned int	cf = `0`
	)		const

virtual

It computes and returns the mean of the occurring values in a window of the band.

Parameters

rs	The starting row.
cs	The starting column.
rf	The final row.
cf	The final column.

Note: This method without parameters will compute for the entire raster band.

Warning: The caller is responsible for providing correct values for the range [rs, cs x rf, cf].

Returns: The mean of the occurring values in the window, real and imaginary (if present).

Definition at line 173 of file Band.cpp.

Referenced by te::rst::RasterSummaryManager::get().

std::complex< double > te::rst::Band::getMinValue	(	unsigned int	rs = `0`,
		unsigned int	cs = `0`,
		unsigned int	rf = `0`,
		unsigned int	cf = `0`
	)		const

virtual

It computes and returns the minimum occurring value in a window of the band.

Parameters

rs	The starting row.
cs	The starting column.
rf	The final row.
cf	The final column.

Note: This method without parameters will compute for the entire image.

Warning: The caller is responsible for providing correct values for the range [rs, cs x rf, cf x b].

Returns: The minimum occurring value in the window, real and imaginary (if present).

Definition at line 80 of file Band.cpp.

Referenced by te::rst::RasterSummaryManager::get(), and te::rp::NormalizeRaster().

std::complex< double > te::rst::Band::getOffsetValue ( ) const

It returns the offset values (real and imaginary) to be applied to the band.

Definition at line 360 of file Band.cpp.

te::rst::BandProperty * te::rst::Band::getProperty ( )

Returns the band property.

Definition at line 370 of file Band.cpp.

const te::rst::BandProperty * te::rst::Band::getProperty ( ) const

Returns the band property.

Definition at line 375 of file Band.cpp.

virtual Raster* te::rst::Band::getRaster ( ) const

pure virtual

Returns the associated raster.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

Referenced by te::rst::AbstractBandIterator< T >::AbstractBandIterator(), te::rst::BandIteratorWindow< T >::BandIteratorWindow(), callOperator(), te::rst::Copy(), te::rp::Contrast::execSetMeanAndStdContrast(), te::rst::FillBand(), and te::rst::Raster::rasterize().

std::complex< double > te::rst::Band::getScaleValue ( ) const

It returns the scale values (real and imaginary) to be applied to the band.

Definition at line 350 of file Band.cpp.

std::complex< double > te::rst::Band::getStdValue	(	unsigned int	rs = `0`,
		unsigned int	cs = `0`,
		unsigned int	rf = `0`,
		unsigned int	cf = `0`
	)		const

virtual

It computes and returns the standard deviation of the occurring values in a window of the band.

Parameters

rs	The starting row.
cs	The starting column.
rf	The final row.
cf	The final column.

Note: This method without parameters will compute for the entire raster band.

Warning: The caller is responsible for providing correct values for the range [rs, cs x rf, cf].

Returns: The standard deviation of the occurring values in the window, real and imaginary (if present).

Definition at line 138 of file Band.cpp.

Referenced by te::rst::RasterSummaryManager::get().

virtual void te::rst::Band::getValue	(	unsigned int	c,
		unsigned int	r,
		double &	value
	)		const

pure virtual

Returns the cell attribute value.

Parameters

c	The column location of the cell.
r	The row location of the cell.
value	To return the attribute value.

Warning: The caller is responsible for providing correct values for the range [c x r].

Exceptions

Exception Subclasses may throw an exception if the data value can not be read.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

Referenced by te::rp::GeoMosaic::calcBandStatistics(), te::rp::TiePointsMosaic::calcBandStatistics(), te::rp::SequenceMosaic::calcBandStatistics(), callOperator(), te::rp::ConvertIHS2RGB(), te::rp::ConvertRGB2IHS(), te::rst::Copy(), te::rp::Copy2DiskRaster(), te::rp::SequenceMosaic::createDiskRasterCopy(), te::rp::SequenceMosaic::createRasterDataSet(), te::rp::Contrast::execSetMeanAndStdContrast(), te::rp::GeoMosaic::execute(), te::rp::TiePointsMosaic::execute(), te::rp::SequenceMosaic::execute(), te::rp::Segmenter::execute(), te::rp::GetCovarianceValue(), te::rp::IHSFusion::getRGBRange(), te::gdal::Band::getValue(), te::rp::Skeleton::loadData(), te::rp::TiePointsLocator::loadRasterData(), te::rp::Contrast::remapBandLevels(), te::rp::Filter::RobertsFilter(), te::rp::Segmenter::segmenterThreadEntry(), te::rp::Filter::SobelFilter(), te::rp::PCAFusion::swapBandByHighResRaster(), and te::rp::IHSFusion::swapIntensity().

void te::rst::Band::getValue	(	unsigned int	c,
		unsigned int	r,
		std::complex< double > &	value
	)		const

virtual

Returns the imaginary attribute value in a complex band of a cell.

Parameters

c	The column location of the cell.
r	The row location of the cell.
value	The complex attribute value to be assigned (real, imaginary).

Warning: The caller is responsible for providing correct values for the range [c x r].

Exceptions

Exception Subclasses may throw an exception if the data value can not be read.

Reimplemented in te::gdal::Band.

Definition at line 60 of file Band.cpp.

te::rst::Band & te::rst::Band::operator*= ( Band & rhs )

virtual

It returns the band product (pixel by pixel).

Parameters

rhs	The band to be multiplied, right-hand side.

Note: Both bands must have the same properties, #columns, #rows, and data type.; The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band product.

Definition at line 557 of file Band.cpp.

References times().

te::rst::Band & te::rst::Band::operator*= ( std::complex< double > & cvalue )

virtual

It returns the product of a constant value to all pixels in the band.

Parameters

cvalue The constant value to be multiplied.

Note: The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band product.

Definition at line 552 of file Band.cpp.

References times().

te::rst::Band & te::rst::Band::operator+= ( Band & rhs )

virtual

It returns the band sum (pixel by pixel).

Parameters

rhs	The band to be added, right-hand side.

Note: Both bands must have the same properties, #columns, #rows, and data type.; The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band sum.

Definition at line 532 of file Band.cpp.

References plus().

te::rst::Band & te::rst::Band::operator+= ( std::complex< double > & cvalue )

virtual

It returns the sum of a constant value to all pixels in the band.

Parameters

cvalue The constant value to be added.

Note: The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band sum.

Definition at line 537 of file Band.cpp.

References plus().

te::rst::Band & te::rst::Band::operator-= ( Band & rhs )

virtual

It returns the band subtraction (pixel by pixel).

Parameters

rhs	The band to be subtracted, right-hand side.

Note: Both bands must have the same properties, #columns, #rows, and data type.; The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band subtraction.

Definition at line 542 of file Band.cpp.

References minus().

te::rst::Band & te::rst::Band::operator-= ( std::complex< double > & cvalue )

virtual

It returns the difference from all pixels in the band to a constant value (pixel - constant).

Parameters

cvalue The constant value to be subtracted.

Note: The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band difference.

Definition at line 547 of file Band.cpp.

References minus().

te::rst::Band & te::rst::Band::operator/= ( Band & rhs )

virtual

It returns the band division (pixel by pixel).

Parameters

rhs	The band to be divided, right-hand side.

Note: Both bands must have the same properties, #columns, #rows, and data type.; The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band division.

Definition at line 562 of file Band.cpp.

References divide().

te::rst::Band & te::rst::Band::operator/= ( std::complex< double > & cvalue )

virtual

It returns the division of all pixels in the band by a constant value (pixel / constant).

Parameters

cvalue The constant value to be divided.

Note: The caller is responsible to guarantee that resultant values will not exceed the range of the data type.

Returns: The band division.

Definition at line 567 of file Band.cpp.

References divide().

te::rst::Band & te::rst::Band::operator= ( const Band & rhs )

virtual

Assignment operator.

Parameters

rhs	The right-hand-side copy used to copy from.

Returns: A reference to this object.

Definition at line 46 of file Band.cpp.

References m_idx, and m_property.

Referenced by te::mem::TiledBand::operator=(), te::mem::Band::operator=(), and te::gdal::Band::operator=().

virtual void te::rst::Band::read	(	int	x,
		int	y,
		void *	buffer
	)		const

pure virtual

It reads a data block to the specified buffer.

Parameters

x	The block-id in x (or x-offset).
y	The block-id in y (or y-offset).
buffer	The buffer to be used to read from the band.

Note: The upper-left corner is (0, 0).

Warning: The buffer must have been previously allocated and must have enough capacity.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

Referenced by te::rst::Copy(), te::rp::GetCovarianceValueThread(), te::rp::GetMeanValueThread(), te::rp::GetStdDevValueThread(), te::rp::Contrast::remapBandLevels(), and te::rp::RemapValuesThread().

virtual void* te::rst::Band::read	(	int	x,
		int	y
	)

pure virtual

It reads and returns a data block.

Parameters

x	The block-id in x (or x-offset).
y	The block-id in y (or y-offset).

Note: The upper-left corner is (0, 0).

Returns: The specified data block.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

virtual void te::rst::Band::setIValue	(	unsigned int	c,
		unsigned int	r,
		const double	value
	)

pure virtual

Sets the imaginary attribute value in a complex band of a cell.

Parameters

c	The column location of the cell.
r	The row location of the cell.
value	The attribute value to be assigned.

Warning: The caller is responsible for providing correct values for the range [c x r].

Exceptions

Exception Subclasses may throw an exception if the data value can not be write.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

void te::rst::Band::setOffsetValue ( const std::complex< double > o )

Sets the offset values (real and imaginary) to be applied to the band.

Parameters

o	The new offset.

Definition at line 365 of file Band.cpp.

void te::rst::Band::setScaleValue ( const std::complex< double > s )

Sets the scale values (real and imaginary) to be applied to the band.

Parameters

s	The new scale.

Definition at line 355 of file Band.cpp.

virtual void te::rst::Band::setValue	(	unsigned int	c,
		unsigned int	r,
		const double	value
	)

pure virtual

Sets the cell attribute value.

Parameters

c	The column location of the cell.
r	The row location of the cell.
value	The attribute value to be assigned.

Warning: The caller is responsible for providing correct values for the range [c x r].

Exceptions

Exception Subclasses may throw an exception if the data value can not be write.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

Referenced by te::rp::ConvertIHS2RGB(), te::rst::Copy(), te::rp::Copy2DiskRaster(), te::rp::SequenceMosaic::createDiskRasterCopy(), te::rp::SequenceMosaic::createRasterDataSet(), te::rp::Contrast::execHistogramEqualizationContrast(), te::rp::Contrast::execSetMeanAndStdContrast(), te::rp::GeoMosaic::execute(), te::rp::Register::execute(), te::rp::TiePointsMosaic::execute(), te::rp::SequenceMosaic::execute(), te::rst::FillBand(), te::rp::Contrast::remapBandLevels(), te::rp::Filter::RobertsFilter(), te::rp::IHSFusion::saveIHSData(), te::rp::Segmenter::segmenterThreadEntry(), te::gdal::Band::setValue(), and te::rp::Filter::SobelFilter().

void te::rst::Band::setValue	(	unsigned int	c,
		unsigned int	r,
		const std::complex< double > &	value
	)

virtual

Sets the imaginary attribute value in a complex band of a cell.

Parameters

c	The column location of the cell.
r	The row location of the cell.
value	The complex attribute value to be assigned (real, imaginary).

Warning: The caller is responsible for providing correct values for the range [c x r].

Exceptions

Exception Subclasses may throw an exception if the data value can not be write.

Reimplemented in te::gdal::Band.

Definition at line 73 of file Band.cpp.

virtual void te::rst::Band::write	(	int	x,
		int	y,
		void *	buffer
	)

pure virtual

It writes a data block from the specified buffer.

Parameters

x	The block-id in x (or x-offset).
y	The block-id in y (or y-offset).
buffer	The buffer to be used to write to the band.

Note: The upper-left corner is (0, 0).

Warning: The method will copy the same amount of bytes used by the internal band block representation.

Implemented in te::idl::IdlBand, te::gdal::Band, te::mem::ExpansibleBand, te::mem::CachedBand, te::rst::SynchronizedBand, te::mem::Band, te::grib::Band, te::mem::TiledBand, and terralib4::Band.

Referenced by te::rst::Copy(), te::rp::Contrast::remapBandLevels(), and te::rp::RemapValuesThread().

Member Data Documentation

std::size_t te::rst::Band::m_idx

protected

The band index.

Definition at line 473 of file Band.h.

Referenced by operator=(), and te::gdal::Band::read().

BandProperty* te::rst::Band::m_property

protected

The band information.

Definition at line 472 of file Band.h.

Referenced by te::grib::Band::Band(), te::mem::Band::Band(), te::gdal::Band::Band(), Band(), te::mem::ExpansibleBand::ExpansibleBand(), te::idl::IdlBand::IdlBand(), te::gdal::Band::operator=(), operator=(), te::rst::SynchronizedBand::SynchronizedBand(), and te::mem::TiledBand::TiledBand().

The documentation for this class was generated from the following files:

C:/BB_TL5/terralib5/src/terralib/raster/Band.h
C:/BB_TL5/terralib5/src/terralib/raster/Band.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
