This class implements a concrete tool to geographic zoom operation using the keyboard. More...

#include <ZoomKeyboard.h>

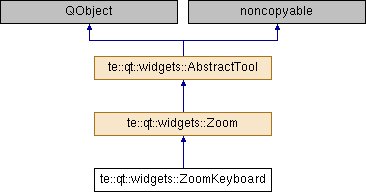

Inheritance diagram for te::qt::widgets::ZoomKeyboard:

Public Types
enum	ZoomType { In, Out }
	Defines the zoom type. More...

Public Member Functions
void	applyZoom (const QPointF &point=QPointF())
	Performs the zoom operation on map display, considering the zoom factor, zoom type and the given point. More...

virtual void	setCursor (const QCursor &cursor)

void	setZoomType (const ZoomType &type)
	Sets the zoom operation type. More...

Initializer Methods
Methods related to instantiation and destruction.
	ZoomKeyboard (MapDisplay display, const double &zoomFactor=2.0, QObject parent=0)
	It constructs a zoom keyboard tool associated with the given map display. More...

	~ZoomKeyboard ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	eventFilter (QObject watched, QEvent e)

AbstractTool Methods
Methods related with tool behavior.
virtual bool	mousePressEvent (QMouseEvent *e)

virtual bool	mouseMoveEvent (QMouseEvent *e)

virtual bool	mouseReleaseEvent (QMouseEvent *e)

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

double	m_zoomFactor
	Factor used to zoom. i.e. A factor value of 2.0 (default) will generate a new extent twice (%) bigger or smaller, depending of ZoomType. More...

ZoomType	m_zoomType
	Enum that indicates the zoom type. More...

Detailed Description

This class implements a concrete tool to geographic zoom operation using the keyboard.

Definition at line 49 of file ZoomKeyboard.h.

Member Enumeration Documentation

enum te::qt::widgets::Zoom::ZoomType

inherited

Defines the zoom type.

Enumerator
In	Performs the zoom in operation.
Out	Performs the zoom out operation.

Definition at line 58 of file Zoom.h.

Constructor & Destructor Documentation

te::qt::widgets::ZoomKeyboard::ZoomKeyboard	(	MapDisplay *	display,
		const double &	zoomFactor = `2.0`,
		QObject *	parent = `0`
	)

It constructs a zoom keyboard tool associated with the given map display.

Parameters

display	The map display associated with the tool.
zoomFactor	The factor used to zoom. i.e. A factor value of 2.0 (default) will generate a new extent twice (%) bigger or smaller.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

Definition at line 33 of file ZoomKeyboard.cpp.

References te::qt::widgets::AbstractTool::m_display.

te::qt::widgets::ZoomKeyboard::~ZoomKeyboard ( )

Destructor.

Definition at line 39 of file ZoomKeyboard.cpp.

Member Function Documentation

void Zoom::applyZoom ( const QPointF & point = QPointF() )

inherited

Performs the zoom operation on map display, considering the zoom factor, zoom type and the given point.

Parameters

point A point in world coordinates.

Note: If the given point is not null, the new extent will be centered on this point. Otherwise, the current center will be kepped.

Definition at line 48 of file Zoom.cpp.

References te::gm::Envelope::getCenter(), te::gm::Envelope::getHeight(), te::gm::Envelope::getWidth(), te::gm::Envelope::isValid(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

bool te::qt::widgets::ZoomKeyboard::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtual

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 43 of file ZoomKeyboard.cpp.

References te::qt::widgets::AbstractTool::eventFilter().

bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::qt::widgets::Measure, and te::qt::widgets::PolygonAcquire.

Definition at line 93 of file AbstractTool.cpp.

bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure, te::qt::widgets::Selection, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, and te::qt::widgets::ZoomArea.

Definition at line 83 of file AbstractTool.cpp.

bool te::qt::widgets::AbstractTool::mousePressEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure, te::qt::widgets::Selection, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, and te::qt::widgets::ZoomLeftAndRightClick.

Definition at line 78 of file AbstractTool.cpp.

bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure, te::qt::widgets::Info, te::qt::widgets::Selection, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::qt::widgets::PointPicker, and te::qt::widgets::ReadPixelTool.

Definition at line 88 of file AbstractTool.cpp.

void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Definition at line 98 of file AbstractTool.cpp.

Referenced by te::qt::widgets::ExtentAcquire::ExtentAcquire(), te::qt::widgets::Info::Info(), te::qt::widgets::Measure::Measure(), te::qt::widgets::Pan::Pan(), te::qt::widgets::PanExtent::PanExtent(), te::qt::widgets::PointPicker::PointPicker(), te::qt::widgets::Selection::Selection(), te::qt::widgets::ZoomArea::ZoomArea(), and te::qt::widgets::ZoomClick::ZoomClick().

void Zoom::setZoomType ( const ZoomType & type )

inherited

Sets the zoom operation type.

Parameters

type	The zoom operation type - ZoomIn \| ZoomOut;

Definition at line 43 of file Zoom.cpp.

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::AbstractTool(), te::qt::widgets::CoordTracking::CoordTracking(), te::qt::widgets::Measure::Measure(), te::qt::widgets::PolygonAcquire::PolygonAcquire(), and ZoomKeyboard().

double te::qt::widgets::Zoom::m_zoomFactor

protectedinherited

Factor used to zoom. i.e. A factor value of 2.0 (default) will generate a new extent twice (%) bigger or smaller, depending of ZoomType.

Definition at line 101 of file Zoom.h.

ZoomType te::qt::widgets::Zoom::m_zoomType

protectedinherited

Enum that indicates the zoom type.

Definition at line 102 of file Zoom.h.

The documentation for this class was generated from the following files:

C:/BB_TL5/terralib5/src/terralib/qt/widgets/tools/ZoomKeyboard.h
C:/BB_TL5/terralib5/src/terralib/qt/widgets/tools/ZoomKeyboard.cpp
