Abstract class used to define the main functions of graph struct. All graph implementations must used this class. More...

#include <AbstractGraph.h>

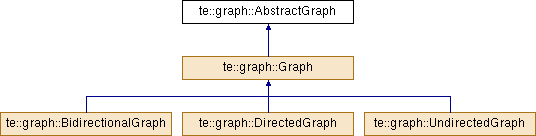

Inheritance diagram for te::graph::AbstractGraph:

Public Member Functions
	AbstractGraph ()
	Default constructor. More...

virtual void	flush ()=0
	Function used to clear the memory cache, all elements was released from memory, if any element was changes it will be saved. More...

virtual te::graph::GraphMetadata *	getMetadata ()=0
	Function used to access the graph metadata. More...

virtual	~AbstractGraph ()
	Virtual destructor. More...

Vertex Access Methods
Method used to access vertex elements from a graph.
virtual void	add (Vertex *v)=0
	Add a new vertex element to a graph. More...

virtual void	update (Vertex *v)=0
	Update the vertex element. More...

virtual void	removeVertex (int id)=0
	This function removes the vertex element from graph, also was removed in data source. More...

virtual te::graph::Vertex *	getVertex (int id)=0
	It returns the vertex element if it's exist. More...

virtual void	addVertexProperty (te::dt::Property *p)=0
	Add a new property associated to the vertex element. More...

virtual void	removeVertexProperty (int idx)=0
	Remove a property associated to the vertex element. More...

virtual te::dt::Property *	getVertexProperty (int idx)=0
	Get a vertex property given a index. More...

virtual int	getVertexPropertySize ()=0
	Used to verify the number of properties associated to vertex elements. More...

Edge Access Methods
Method used to access edge elements from a graph.
virtual void	add (Edge *e)=0
	Add a new edge element to a graph. More...

virtual void	update (Edge *e)=0
	Update the edge element. More...

virtual void	removeEdge (int id)=0
	This function removes the edge element from graph, also was removed in data source. More...

virtual te::graph::Edge *	getEdge (int id)=0
	It returns the edge element if it's exist. More...

virtual void	addEdgeProperty (te::dt::Property *p)=0
	Add a new property associated to the edge element. More...

virtual void	removeEdgeProperty (int idx)=0
	Remove a property associated to the edge element. More...

virtual te::dt::Property *	getEdgeProperty (int idx)=0
	Get a edge property given a index. More...

virtual int	getEdgePropertySize ()=0
	Used to verify the number of properties associated to edge elements. More...

Detailed Description

Abstract class used to define the main functions of graph struct. All graph implementations must used this class.

Definition at line 55 of file AbstractGraph.h.

Constructor & Destructor Documentation

te::graph::AbstractGraph::AbstractGraph ( )

Default constructor.

Definition at line 33 of file AbstractGraph.cpp.

te::graph::AbstractGraph::~AbstractGraph ( )

virtual

Virtual destructor.

Definition at line 37 of file AbstractGraph.cpp.

Member Function Documentation

virtual void te::graph::AbstractGraph::add ( Vertex * v )

pure virtual

Add a new vertex element to a graph.

Parameters

v	Vertex element

Note: This function turns the dirty flag of current GraphData to true, the new flag of the vertex turns to true.

Implemented in te::graph::Graph.

Referenced by te::graph::GetSubGraph::getPredecessor(), te::graph::GetSubGraph::GetSubGraph(), te::graph::SpatialWeightsExchanger::importFromGAL(), te::graph::SpatialWeightsExchanger::importFromGWT(), te::graph::SequenceLoaderStrategy::loadDataByEdgeId(), te::graph::BoxLoaderStrategy::loadDataByEdgeId(), te::graph::SequenceLoaderStrategy::loadDataByVertexId(), and te::graph::BoxLoaderStrategy::loadDataByVertexId().

virtual void te::graph::AbstractGraph::add ( Edge * e )

pure virtual

Add a new edge element to a graph.

Parameters

e	Edge element

Note: This function turns the dirty flag of current GraphData to true, the new flag of the edge turns to true.

Implemented in te::graph::Graph, te::graph::BidirectionalGraph, te::graph::UndirectedGraph, and te::graph::DirectedGraph.

virtual void te::graph::AbstractGraph::addEdgeProperty ( te::dt::Property * p )

pure virtual

Add a new property associated to the edge element.

param p New property to be associated with edge elements.

Note: It's important before using this function call the flush() function, its necessary to force the memory clear and the elements will be loaded with the right size of properties.

Implemented in te::graph::Graph.

Referenced by te::graph::SpatialWeightsExchanger::importFromGWT().

virtual void te::graph::AbstractGraph::addVertexProperty ( te::dt::Property * p )

pure virtual

Add a new property associated to the vertex element.

param p New property to be associated with vertex elements.

Note: It's important before using this function call the flush() function, its necessary to force the memory clear and the elements will be loaded with the right size of properties.

Implemented in te::graph::Graph.

Referenced by te::graph::AddRasterAttribute::AddRasterAttribute(), and te::graph::SpatialWeightsExchanger::associateGeometry().

virtual void te::graph::AbstractGraph::flush ( )

pure virtual

Function used to clear the memory cache, all elements was released from memory, if any element was changes it will be saved.

Returns

Implemented in te::graph::Graph.

Referenced by te::graph::AddRasterAttribute::AddRasterAttribute().

virtual te::graph::Edge* te::graph::AbstractGraph::getEdge ( int id )

pure virtual

It returns the edge element if it's exist.

Parameters

id	Vertex identification

Returns: A valid vertex point if the element was found and a null pointer in other case.

Implemented in te::graph::Graph.

Referenced by te::graph::SpatialWeightsExchanger::exportToGAL().

virtual te::dt::Property* te::graph::AbstractGraph::getEdgeProperty ( int idx )

pure virtual

Get a edge property given a index.

Parameters

idx	Index of the property

Returns: A property associated to the edge element if the index is right and a null pointer in other case.

Implemented in te::graph::Graph.

Referenced by te::graph::LayerRenderer::checkEdgeGeometryProperty().

virtual int te::graph::AbstractGraph::getEdgePropertySize ( )

pure virtual

Used to verify the number of properties associated to edge elements.

Returns: Integer value with the number of properties.

Implemented in te::graph::Graph.

Referenced by te::graph::QueryGraphBuilder::build(), and te::graph::LayerRenderer::checkEdgeGeometryProperty().

virtual te::graph::GraphMetadata* te::graph::AbstractGraph::getMetadata ( )

pure virtual

Function used to access the graph metadata.

Returns: A pointer to a class that defines the graph metadata

Implemented in te::graph::Graph.

Referenced by te::graph::AddRasterAttribute::AddRasterAttribute(), te::graph::QueryGraphBuilder::build(), te::graph::LayerRenderer::draw(), te::graph::SpatialWeightsExchanger::exportToGAL(), te::graph::SpatialWeightsExchanger::exportToGWT(), te::graph::BoxLoaderStrategy::loadDataByEdgeId(), te::graph::SequenceLoaderStrategy::loadDataByVertexId(), te::graph::BoxLoaderStrategy::loadDataByVertexId(), te::graph::AbstractGraphFactory::make(), and te::graph::AbstractGraphFactory::open().

virtual te::graph::Vertex* te::graph::AbstractGraph::getVertex ( int id )

pure virtual

It returns the vertex element if it's exist.

Parameters

id	Vertex identification

Returns: A valid vertex point if the element was found and a null pointer in other case.

Implemented in te::graph::Graph.

Referenced by te::graph::SpatialWeightsExchanger::associateGeometry(), te::graph::LayerRenderer::drawDataSourceGraph(), te::graph::LayerRenderer::drawMemoryGraph(), te::graph::SpatialWeightsExchanger::importFromGAL(), and te::graph::SpatialWeightsExchanger::importFromGWT().

virtual te::dt::Property* te::graph::AbstractGraph::getVertexProperty ( int idx )

pure virtual

Get a vertex property given a index.

Parameters

idx	Index of the property

Returns: A property associated to the vertex element if the index is right and a null pointer in other case.

Implemented in te::graph::Graph.

Referenced by te::graph::AddRasterAttribute::AddRasterAttribute(), and te::graph::LayerRenderer::checkVertexGeometryProperty().

virtual int te::graph::AbstractGraph::getVertexPropertySize ( )

pure virtual

Used to verify the number of properties associated to vertex elements.

Returns: Integer value with the number of properties.

Implemented in te::graph::Graph.

Referenced by te::graph::AddRasterAttribute::AddRasterAttribute(), te::graph::QueryGraphBuilder::build(), and te::graph::LayerRenderer::checkVertexGeometryProperty().

virtual void te::graph::AbstractGraph::removeEdge ( int id )

pure virtual

This function removes the edge element from graph, also was removed in data source.

Parameters

id	Edge identification

Implemented in te::graph::Graph, te::graph::BidirectionalGraph, te::graph::UndirectedGraph, and te::graph::DirectedGraph.

virtual void te::graph::AbstractGraph::removeEdgeProperty ( int idx )

pure virtual

Remove a property associated to the edge element.

Parameters

idx	Index of the property

Implemented in te::graph::Graph.

virtual void te::graph::AbstractGraph::removeVertex ( int id )

pure virtual

This function removes the vertex element from graph, also was removed in data source.

Parameters

id	Vertex identification

Implemented in te::graph::Graph.

virtual void te::graph::AbstractGraph::removeVertexProperty ( int idx )

pure virtual

Remove a property associated to the vertex element.

Parameters

idx	Index of the property

Implemented in te::graph::Graph.

virtual void te::graph::AbstractGraph::update ( Vertex * v )

pure virtual

Update the vertex element.

Parameters

v	Vertex element

Note: This function turns the dirty flag of current GraphData to true and also the dirty flag of the vertex.

Implemented in te::graph::Graph.

Referenced by te::graph::AddRasterAttribute::AddRasterAttribute().

virtual void te::graph::AbstractGraph::update ( Edge * e )

pure virtual

Update the edge element.

Parameters

e	Edge element

Note: This function turns the dirty flag of current GraphData to true and also the dirty flag of the edge.

Implemented in te::graph::Graph.

The documentation for this class was generated from the following files:

C:/BB_TL5/terralib5/src/terralib/graph/core/AbstractGraph.h
C:/BB_TL5/terralib5/src/terralib/graph/core/AbstractGraph.cpp
