Data Source Exchanger
The Data Source Exchanger is a component
build as wizard interface, which has the functionality to exchange data
between data sources. Can be defined as an exporter generic, allowing
the choice of data types to be exported or allowing the change of data
types in case of incompatibility between sources.
It is
accessible through:
Tools > Data Exchanger > Data Source Exchanger...It is
accessible through:
Tools > Data Exchanger > Data Source Exchanger...

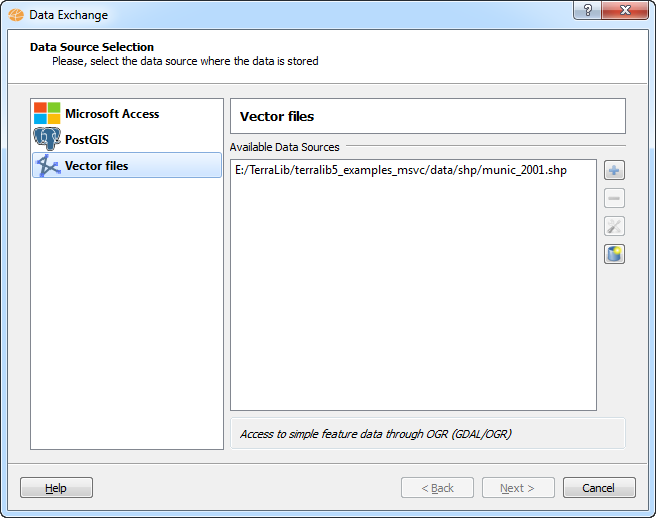

Wizard Page 1 - Selection of data source (Data Source
Selector),

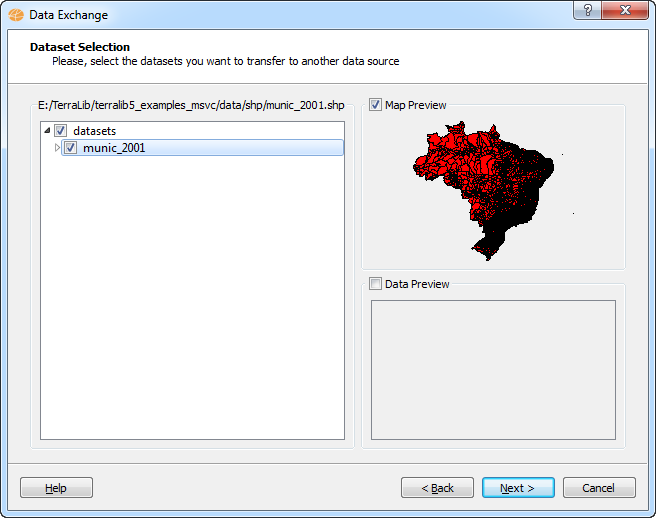

Wizard Page 2 - Selection of dataset to be exported
(Dataset Selector),

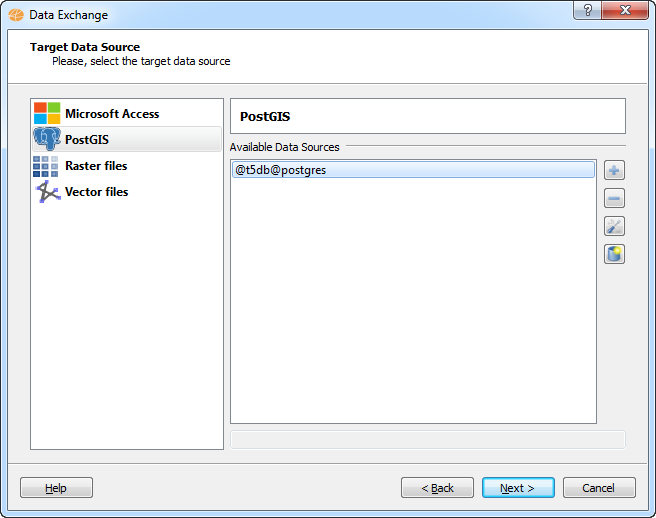

Wizard Page 3 - Selection of the target data source (Data Source
Selector),

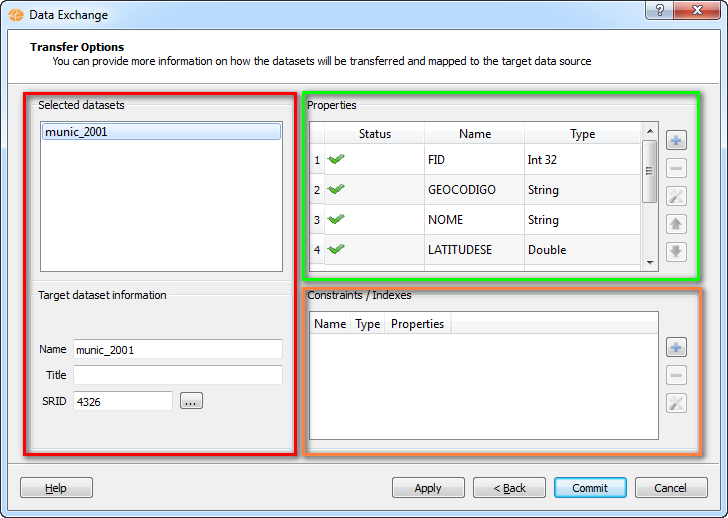

Wizard Page 4 - Setting the attributes of the dataset
The red box has the list of
selected datasets to be exported. For each
dataset, the user can change:
- Dataset
Spatial Reference Identifier (change this
do not cause data reprojection).
These
changes will only take effect on the data set exported.
In the green box the user can
select and change the dataset attributes
types. All attributes are listed, showing the name and type of each
attribute. The "status" column indicates if this attribute was properly
adapted to the data source output. A check icon is used to represent
that the property was properly adapted, otherwise an icon with an x is
shown.
It is possible to add (+) attributes,
Property Converter
Interface, or remove
(-) attributes listed.
In the orange box the user
can add constraints and indexes to the new
dataset. If the data already has some index or constraint, these will
be listed.
The user can remove or insert new items using the actions to add (+), Constraints and Indexes
Interface , or remove(-).

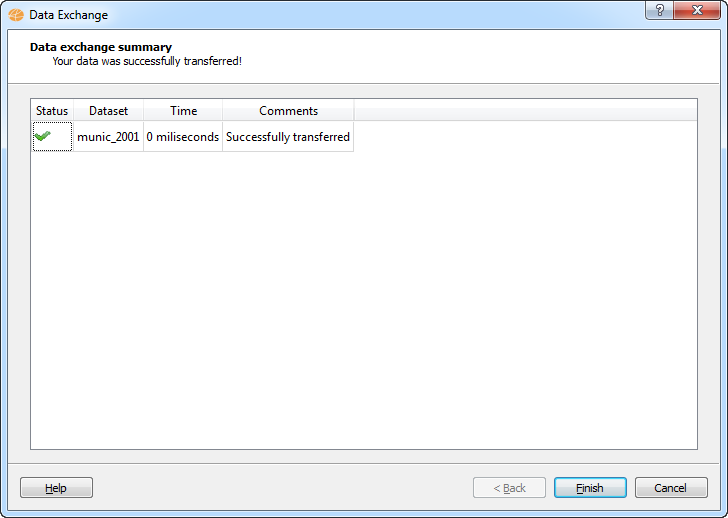

Wizard Page 5 - Results of exports.
