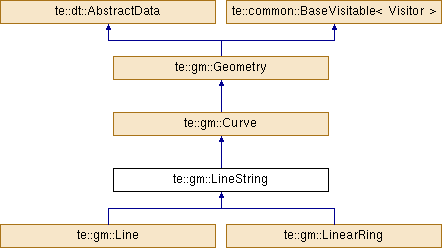

LineString is a curve with linear interpolation between points. More...
#include <LineString.h>
Public Types
typedef void  ReturnType
typedef Visitor  VisitorType
Public Member Functions
virtual ReturnType  accept (VisitorType &guest) const =0
It call the visit method from the guest object. More...
Initializer methods on geometric objects
Methods for initializing a geometric object.
LineString (GeomType t, int srid=0, Envelope *mbr=0)
It initializes the linestring with the specified spatial reference system id and envelope. More...
LineString (std::size_t size, GeomType t, int srid=0, Envelope *mbr=0)
It initializes the linestring with the specified spatial reference system id and envelope. More...
LineString (const LineString &rhs)
Copy constructor. More...
virtual  ~LineString ()
Virtual destructor. More...
virtual LineString &  operator= (const LineString &rhs)
Assignment operator. More...
ReImplementation from AbstractData
Methods reImplementated from AbstractData.
virtual te::dt::AbstractData *  clone () const
It clones the linestring. More...
ReImplmentation of methods from Geometry class
ReImplmentation of basic methods from Geometry class.
const std::string &  getGeometryType () const throw ()
The name of instantiable subtype is: LineString. More...
void  setSRID (int srid) throw ()
It sets the Spatial Reference System ID of the linestring. More...
void  transform (int srid) throw (te::common::Exception)
It converts the coordinate values of the linestring to the new spatial reference system. More...
void  computeMBR (bool cascade) const throw ()
It computes the minimum bounding rectangle for the linestring. More...
std::size_t  getNPoints () const throw ()
It returns the number of points (vertexes) in the linestring. More...
Geometry *  locateBetween (const double &mStart, const double &mEnd) const throw (Exception)
It returns a derived geometry collection value according to the range of coordinate values inclusively. More...
ReImplementation from Curve
Methods reimpleented from Curve.
Point *  getStartPoint () const
The length of this Curve in its associated spatial reference. More...
Point *  getEndPoint () const
It returns the curve end point. More...
bool  isClosed () const
It returns true if the curve is closed (startPoint = endPoint). More...
LineString Specific Methods
Specific methods for a LineString.
std::size_t  size () const
It returns the number of points (vertexes) in the geometry. More...
void  setNumCoordinates (std::size_t size)
It reserves room for the number of coordinates in this LineString. More...
void  makeEmpty ()
It clears all the coordinates. More...
Point *  getPointN (std::size_t i) const
It returns the specified point in this LineString. More...
void  setPointN (std::size_t i, const Point &p)
It sets the value of the specified point to this new one. More...
void  setPoint (std::size_t i, const double &x, const double &y)
It sets the value of the specified point. More...
void  setPointZ (std::size_t i, const double &x, const double &y, const double &z)
It sets the value of the specified point. More...
void  setPointM (std::size_t i, const double &x, const double &y, const double &m)
It sets the value of the specified point. More...
void  setPointZM (std::size_t i, const double &x, const double &y, const double &z, const double &m)
It sets the value of the specified point. More...
const double &  getX (std::size_t i) const
It returns the nth x coordinate value. More...
const double &  getY (std::size_t i) const
It returns the nth y coordinate value. More...
const double &  getZ (std::size_t i) const
It returns the nth z coordinate value. More...
const double &  getM (std::size_t i) const
It returns the nth m measure value. More...
void  setX (std::size_t i, const double &x)
It sets the nth x coordinate value. More...
void  setY (std::size_t i, const double &y)
It sets the nth y coordinate value. More...
void  setZ (std::size_t i, const double &z)
It sets the nth z coordinate value. More...
void  setM (std::size_t i, const double &m)
It sets the nth m measure value. More...
Coord2D *  getCoordinates () const
It returns a pointer to the internal array of coordinates. More...
double *  getZ () const
It returns a pointer to the internal array of zvalues. More...
double *  getM () const
It returns a pointer to the internal array of mvalues. More...
Curve Specific Methods
Specific methods for a Curve.
virtual double  getLength () const
The length of this curve in the unit associated to its spatial reference system. More...
bool  isRing () const
It returns true if the curve is closed and simple. More...
ReImplmentation of methods from Geometry class
ReImplmentation of basic methods from Geometry class.
Dimensionality  getDimension () const throw ()
Curves are 1dimensional objects. More...
Basic Geometry Methods
Basic methods on geometric objects.
int  getCoordinateDimension () const throw ()
It returns the number of measurements or axes needed to describe a position in a coordinate system. More...
GeomType  getGeomTypeId () const throw ()
It returns the geometry subclass type identifier. More...
int  getSRID () const throw ()
It returns the Spatial Reference System ID associated to this geometric object. More...
Geometry *  getEnvelope () const throw ()
It returns the minimum bounding rectangle (MBR) for the geometry. More...
const Envelope *  getMBR () const throw ()
It returns the minimum bounding rectangle for the geometry in an internal representation. More...
std::string  asText () const throw ()
It returns an string with the WellKnown Text Representation for the geometry. More...
char *  asBinary (std::size_t &size) const throw (Exception)
It serializes the geometric object to a Wellknown Binary Representation (WKB). More...
std::size_t  getWkbSize () const throw ()
It returns the size required by a WKB representation for this geometric object. More...
void  getWkb (char *wkb, te::common::MachineByteOrder byteOrder) const throw (Exception)
It serializes the geometry to a WKB representation into the specified buffer. More...
virtual bool  isEmpty () const throw (std::exception)
It returns true if this geometric object is the empty Geometry. More...
virtual bool  isSimple () const throw (std::exception)
It returns true if this geometric object has no anomalous points, such as self intersection or self tangency. More...
virtual bool  isValid () const throw (std::exception)
It tells if the geometry is well formed. More...
bool  is3D () const throw ()
It returns true if this geometric object has z coordinate values. More...
bool  isMeasured () const throw ()
It returns true if this geometric object has m coordinate values. More...
virtual Geometry *  getBoundary () const throw (std::exception)
It returns the geometry boundary. More...
Spatial Relations
Methods for testing spatial relations between geometric objects. Please, see OGC specification for a in depth definition of each spatial operation.
virtual bool  equals (const Geometry *const rhs, const bool exact=false) const throw (std::exception)
It returns true if the geometry object is spatially equal to rhs geometry. More...
virtual bool  disjoint (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object is spatially disjoint from rhs geometry. More...
virtual bool  intersects (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object spatially intersects rhs geometry. More...
virtual bool  touches (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object spatially touches rhs geometry. More...
virtual bool  crosses (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object spatially crosses rhs geometry. More...
virtual bool  within (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object is spatially within rhs geometry. More...
virtual bool  contains (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object spatially contains rhs geometry. More...
virtual bool  overlaps (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object spatially overlaps rhs geometry. More...
virtual bool  relate (const Geometry *const rhs, const std::string &matrix) const throw (std::exception)
It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix. More...
virtual std::string  relate (const Geometry *const rhs) const throw (std::exception)
It returns the spatial relation between this geometry object and the rhs geometry. More...
virtual bool  covers (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object spatially covers the rhs geometry. More...
virtual bool  coveredBy (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object is spatially covered by rhs geometry. More...
virtual Geometry *  locateAlong (const double &mValue) const throw (Exception)
It returns a derived GeometryCollection value according to the specified coordinate value. More...
Spatial Analysis
Methods that support spatial analysis.
virtual double  distance (const Geometry *const rhs) const throw (std::exception)
It returns the shortest distance between any two points in the two geometry objects. More...
virtual Geometry *  buffer (const double &distance) const throw (std::exception)
This method calculates the buffer of a geometry. More...
virtual Geometry *  buffer (const double &distance, int quadrantSegments) const throw (std::exception)
This method calculates the buffer of a geometry. More...
virtual Geometry *  buffer (const double &distance, int quadrantSegments, BufferCapStyle endCapStyle) const throw (std::exception)
This method calculates the buffer of a geometry. More...
virtual Geometry *  convexHull () const throw (std::exception)
This method calculates the Convex Hull of a geometry. More...
virtual Geometry *  intersection (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set intersection with another geometry. More...
virtual Geometry *  Union (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set union with another geometry. More...
virtual Geometry *  difference (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set difference with another geometry. More...
virtual Geometry *  symDifference (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set symetric difference with another geometry. More...
virtual bool  dWithin (const Geometry *const rhs, const double &distance) const throw (std::exception)
It returns true if the geometries are within the specified distance. More...
AbstractData Reimplementation
Methods reimplemneted from AbstractData.
int  getTypeCode () const
It returns the data type code associated to the data value. More...
std::string  toString () const
It returns the data value in a WKT representation. More...
Static Public Member Functions
Auxiliary Methods
Auxiliary Methods.
static GeomType  getGeomTypeId (const std::string >ype)
It returns the TerraLib geometry type id given a type string (the type string must be in capital letters). More...
static bool  isGeomType (const std::string &stype)
It tells if the given string is a geometry data type. More...
static void  loadGeomTypeId ()
It loads the internal MAP of geometry type names to geometry type ids. More...
Protected Attributes
Coord2D *  m_coords
A pointer to x, y values. More...
GeomType  m_gType
Internal geometry type. More...
double *  m_mA
A pointer to m values. More...
Envelope *  m_mbr
The geometry minimum bounding rectangle. More...
std::size_t  m_nPts
The number of coordinates of the LineString. More...
int  m_srid
The Spatial Reference System code associated to the Geometry. More...
double *  m_zA
A pointer to z values. More...
Static Protected Attributes
static std::map< std::string, GeomType >  sm_geomTypeMap
A set of geometry type names (in UPPER CASE). More...
Static Private Attributes
static const std::string  sm_typeName
LineString is a curve with linear interpolation between points.
In a linestring each consecutive pair of points defines a line segment. Internally, we store an array of coordinates and separate arrays for points with z and m. All OGC interface is supported based on points through the method getPointN. But the extended methods, for coordinates, will be faster than the same versions of OGC methods because they work with less complex structures (coordinates) than points.
Definition at line 62 of file LineString.h.

inherited
Definition at line 58 of file BaseVisitable.h.

inherited
Definition at line 57 of file BaseVisitable.h.
It initializes the linestring with the specified spatial reference system id and envelope.
t  The internal type of the linestring.
srid  The Spatial Reference System ID associated to the linestring.
mbr  The minimum bounding rectangle of this geometry (i.e., its envelope).
It initializes the linestring with the specified spatial reference system id and envelope.
size  The number of points in the LineString. It must be a value greater than 0.
t  The internal type of the linestring.
srid  The Spatial Reference System ID associated to the linestring.
mbr  The minimum bounding rectangle of this geometry (i.e., its envelope).
te::gm::LineString::LineString  (  const LineString &  rhs  )
Copy constructor.
rhs  The other geometry.

virtual
Virtual destructor.

pure virtualinherited
It call the visit method from the guest object.
guest  The guest or visitor.

inherited
It serializes the geometric object to a Wellknown Binary Representation (WKB).
size  The size in bytes of the returned WKB.
Exception  It will throw an exception if the operation could not be performed.

inherited
It returns an string with the WellKnown Text Representation for the geometry.

virtualinherited
This method calculates the buffer of a geometry.
distance  Distance value.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
This method calculates the buffer of a geometry.
distance  Distance value.
quadrantSegments  A specified number of segments used to approximate the curves.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
This method calculates the buffer of a geometry.
As in GEOS, the quadrantSegments argument allows controlling the accuracy of the approximation by specifying the number of line segments used to represent a quadrant of a circle.
distance  Distance value.
quadrantSegments  A specified number of segments used to approximate the curves.
endCapStyle  It specifies the shape used at the ends of linestrings.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It clones the linestring.
Implements te::dt::AbstractData.
Reimplemented in te::gm::LinearRing, and te::gm::Line.

virtual
It computes the minimum bounding rectangle for the linestring.
cascade  For linestring this flag doesn't have effect.
Implements te::gm::Geometry.

virtualinherited
It returns true if this geometry object spatially contains rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
This method calculates the Convex Hull of a geometry.
std::exception  It will throw an exception if the operation could not be performed.
Referenced by te::rp::GetTPConvexHullArea().

virtualinherited
It returns true if this geometry object is spatially covered by rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if this geometry object spatially covers the rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if the geometry object spatially crosses rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns a geometric object that represents the point set difference with another geometry.
rhs  Another geometry whose difference with this geometry will be calculated.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if the geometry object is spatially disjoint from rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns the shortest distance between any two points in the two geometry objects.
rhs  The other geometry.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if the geometries are within the specified distance.
rhs  The other geometry whose symetric difference with this geometry will be calculated.
distance  The distance.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if the geometry object is spatially equal to rhs geometry.
rhs  The another geometry to be compared.
exact  If true checks if this geometric object has the same vertexes in the same order of rhs geometry.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns the geometry boundary.
std::exception  It will throw an exception if the operation could not be performed.

inherited
It returns the number of measurements or axes needed to describe a position in a coordinate system.
It returns:

inline
It returns a pointer to the internal array of coordinates.
Definition at line 456 of file LineString.h.

virtualinherited

virtual
It returns the curve end point.
Implements te::gm::Curve.
Referenced by te::rst::LineIterator< T >::LineIterator(), and te::rst::PolygonIterator< T >::setNextLine().

inherited
It returns the minimum bounding rectangle (MBR) for the geometry.
As one can notice, the mbr is returned as a geometry, actually a polygon defined by the corner points of the bounding box [(MINX, MINY), (MAXX, MINY), (MAXX, MAXY), (MINX, MAXY), (MINX, MINY)].

virtual
The name of instantiable subtype is: LineString.
Implements te::gm::Geometry.

inlineinherited
It returns the geometry subclass type identifier.
Definition at line 178 of file Geometry.h.
Referenced by te::rst::PolygonIterator< T >::decompose(), and te::rst::PolygonIterator< T >::setNextLine().

staticinherited
It returns the TerraLib geometry type id given a type string (the type string must be in capital letters).
stype  The geometry type name.

virtualinherited
The length of this curve in the unit associated to its spatial reference system.
Reimplemented in te::gm::CircularString, and te::gm::CompoundCurve.
const double& te::gm::LineString::getM  (  std::size_t  i  )  const
It returns the nth m measure value.
i  The nth coordinate.

inline
It returns a pointer to the internal array of mvalues.
Definition at line 484 of file LineString.h.

inherited
It returns the minimum bounding rectangle for the geometry in an internal representation.
The mbr can be constructed when reading a geometry from a database or it can be computed internally. So, if the mbr is not already set it will compute it just when this method is called. Successive calls to this method will not compute the mbr anymore.
Referenced by te::rst::PolygonIterator< T >::PolygonIterator().

inlinevirtual
It returns the number of points (vertexes) in the linestring.
Implements te::gm::Geometry.
Definition at line 193 of file LineString.h.
Point* te::gm::LineString::getPointN  (  std::size_t  i  )  const
It returns the specified point in this LineString.
i  The index of the point you want to retrieve.

inlineinherited
It returns the Spatial Reference System ID associated to this geometric object.
This value can be used to identify the associated Spatial Reference System.
Definition at line 189 of file Geometry.h.
Referenced by te::rst::PolygonIterator< T >::decompose(), te::rst::LineIterator< T >::LineIterator(), te::rst::PolygonIterator< T >::PolygonIterator(), and te::rst::PolygonIterator< T >::setNextLine().

virtual
The length of this Curve in its associated spatial reference.
It returns the curve start point.
Implements te::gm::Curve.
Referenced by te::rst::LineIterator< T >::LineIterator(), and te::rst::PolygonIterator< T >::setNextLine().

virtualinherited
It returns the data type code associated to the data value.
Implements te::dt::AbstractData.

inherited
It serializes the geometry to a WKB representation into the specified buffer.
The wkb parameter must have at least getWkbSize() in order to be used. Don't pass a NULL pointer or a buffer smaller than the size needed. Note that the WKB will be on the specified byte order.
wkb  The buffer where the Geometry will be serialized.
byteOrder  The byte order used to store/serialize the geometry.
Exception  It will throw an exception if the operation could not be performed.

inherited
It returns the size required by a WKB representation for this geometric object.
This is the preferred method for creating a WKB. First of all, it gives you the possibility to use a preallocated buffer. So, this method can be used in conjunction with the getWkb method.
const double& te::gm::LineString::getX  (  std::size_t  i  )  const
It returns the nth x coordinate value.
i  The nth coordinate.
const double& te::gm::LineString::getY  (  std::size_t  i  )  const
It returns the nth y coordinate value.
i  The nth coordinate.
const double& te::gm::LineString::getZ  (  std::size_t  i  )  const
It returns the nth z coordinate value.
i  The nth coordinate.

inline
It returns a pointer to the internal array of zvalues.
Definition at line 470 of file LineString.h.

virtualinherited
It returns a geometric object that represents the point set intersection with another geometry.
std::exception  It will throw an exception if the operation could not be performed.
Referenced by te::rst::LineIterator< T >::LineIterator(), and te::rst::PolygonIterator< T >::setNextLine().

virtualinherited
It returns true if the geometry object spatially intersects rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

inherited
It returns true if this geometric object has z coordinate values.

virtual
It returns true if the curve is closed (startPoint = endPoint).
Implements te::gm::Curve.

virtualinherited
It returns true if this geometric object is the empty Geometry.
If true, then this geometric object represents the empty point set for the coordinate space.
std::exception  It will throw an exception if the operation could not be performed.
Referenced by te::rst::PolygonIterator< T >::setNextLine().

staticinherited
It tells if the given string is a geometry data type.
stype  The geometry type to be checked.

inherited
It returns true if this geometric object has m coordinate values.

inherited
It returns true if the curve is closed and simple.

virtualinherited
It returns true if this geometric object has no anomalous points, such as self intersection or self tangency.
See the ISO and OGC documentation for an explanation about specific conditions of each type of geometry to be considered not simple.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It tells if the geometry is well formed.
std::exception  It will throw an exception if the operation could not be performed.

staticinherited
It loads the internal MAP of geometry type names to geometry type ids.

inlinevirtualinherited
It returns a derived GeometryCollection value according to the specified coordinate value.
mValue  The coordinate value.
Exception  It will throw an exception if the operation could not be performed.
Definition at line 611 of file Geometry.h.

virtual
It returns a derived geometry collection value according to the range of coordinate values inclusively.
mStart  The initial coordinate value.
mEnd  The final coordinate value.
Reimplemented from te::gm::Geometry.
void te::gm::LineString::makeEmpty  (  )
It clears all the coordinates.
After calling this method you can not use the set methods. You will need to use the setNumCoordinates method in order to use the set methods.

virtual
Assignment operator.
rhs  The other geometry.

virtualinherited
It returns true if this geometry object spatially overlaps rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix.
It does this by testing for intersections between the interior, boundary and exterior of the two geometric objects as specified by the values in the matrix.
rhs  The other geometry to be compared.
matrix  The intersection matrix.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns the spatial relation between this geometry object and the rhs geometry.
rhs  The another geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.
void te::gm::LineString::setM  (  std::size_t  i,
const double &  m
)
It sets the nth m measure value.
i  The coordinate index.
m  The m value.
void te::gm::LineString::setNumCoordinates  (  std::size_t  size  )
It reserves room for the number of coordinates in this LineString.
size  The number of coordinates reserved for the LineString.
void te::gm::LineString::setPoint  (  std::size_t  i,
const double &  x,
const double &  y
)
It sets the value of the specified point.
i  The index where the point will be set to the new value.
x  The x coordinate value.
y  The y coordinate value.
void te::gm::LineString::setPointM  (  std::size_t  i,
const double &  x,
const double &  y,
const double &  m
)
It sets the value of the specified point.
i  The index where the point will be set to the new value.
x  The x coordinate value.
y  The y coordinate value.
m  The m coordinate value.
void te::gm::LineString::setPointN  (  std::size_t  i,
const Point &  p
)
It sets the value of the specified point to this new one.
i  The index where the point will be set to the new value.
p  The new point value.
void te::gm::LineString::setPointZ  (  std::size_t  i,
const double &  x,
const double &  y,
const double &  z
)
It sets the value of the specified point.
i  The index where the point will be set to the new value.
x  The x coordinate value.
y  The y coordinate value.
z  The z coordinate value.
void te::gm::LineString::setPointZM  (  std::size_t  i,
const double &  x,
const double &  y,
const double &  z,
const double &  m
)
It sets the value of the specified point.
i  The index where the point will be set to the new value.
x  The x coordinate value.
y  The y coordinate value.
z  The z coordinate value.
m  The m coordinate value.

virtual
It sets the Spatial Reference System ID of the linestring.
srid  The Spatial Reference System ID to be associated to the linestring.
Implements te::gm::Geometry.
void te::gm::LineString::setX  (  std::size_t  i,
const double &  x
)
It sets the nth x coordinate value.
i  The coordinate index.
x  The x value.
Referenced by te::rst::PolygonIterator< T >::decompose().
void te::gm::LineString::setY  (  std::size_t  i,
const double &  y
)
It sets the nth y coordinate value.
i  The coordinate index.
y  The y value.
Referenced by te::rst::PolygonIterator< T >::decompose().
void te::gm::LineString::setZ  (  std::size_t  i,
const double &  z
)
It sets the nth z coordinate value.
i  The coordinate index.
z  The z value.

inline
It returns the number of points (vertexes) in the geometry.
Definition at line 262 of file LineString.h.

virtualinherited
It returns a geometric object that represents the point set symetric difference with another geometry.
rhs  The other geometry whose symetric difference with this geometry will be calculated.
std::exception  It will throw an exception if the operation could not be performed.

inlinevirtualinherited
It returns the data value in a WKT representation.
Implements te::dt::AbstractData.
Definition at line 858 of file Geometry.h.
Referenced by te::rst::PolygonIterator< T >::decompose().

virtualinherited
It returns true if the geometry object spatially touches rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It converts the coordinate values of the linestring to the new spatial reference system.
After calling this method the linestring will be associated to the new SRID.
srid  The new Spatial Reference System ID used to transform the coordinates of the linestring.
Exception  It will throw an exception if it can not do the transformation.
Implements te::gm::Geometry.

virtualinherited
It returns a geometric object that represents the point set union with another geometry.
rhs  Another geometry whose union with this geometry will be calculated.
std::exception  It will throw an exception if the operation could not be performed.

virtualinherited
It returns true if the geometry object is spatially within rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

protected
A pointer to x, y values.
Definition at line 493 of file LineString.h.

protectedinherited
Internal geometry type.
Definition at line 864 of file Geometry.h.

protected
A pointer to m values.
Definition at line 495 of file LineString.h.

mutableprotectedinherited
The geometry minimum bounding rectangle.
Definition at line 866 of file Geometry.h.

protected
The number of coordinates of the LineString.
Definition at line 496 of file LineString.h.

protectedinherited
The Spatial Reference System code associated to the Geometry.
Definition at line 865 of file Geometry.h.

protected
A pointer to z values.
Definition at line 494 of file LineString.h.

staticprotectedinherited
A set of geometry type names (in UPPER CASE).
Definition at line 868 of file Geometry.h.

staticprivate
Definition at line 500 of file LineString.h.
