Public Member Functions | Protected Attributes | List of all members
ReadPixelTool Class Reference

#include <ReadPixelTool.h>

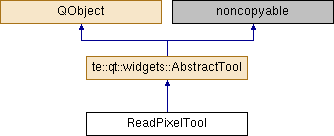

Inheritance diagram for ReadPixelTool:
te::qt::widgets::AbstractTool QObject

Public Member Functions

 ReadPixelTool (te::qt::widgets::MapDisplay *display, QObject *parent=0)

virtual void setCursor (const QCursor &cursor)
 It sets the tool cursor. More...

 ~ReadPixelTool ()

AbstractTool Methods

Methods related with tool behavior.

bool mouseReleaseEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods

Methods related with tool behavior.

virtual bool eventFilter (QObject *watched, QEvent *e)
 Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool mousePressEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

virtual bool mouseMoveEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool mouseDoubleClickEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool keyPressEvent (QKeyEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...


Protected Attributes

QCursor m_curCursor
 The current mapdisplay cursor. More...

QCursor m_cursor
 The default tool cursor. More...

MapDisplay * m_display
 The map display associated with the tool. More...


Detailed Description

Definition at line 58 of file examples/qt/rastervisual/ReadPixelTool.h.

Constructor & Destructor Documentation

ReadPixelTool::ReadPixelTool ( te::qt::widgets::MapDisplay *  display,
QObject *  parent = 0
)

Definition at line 51 of file examples/qt/rastervisual/ReadPixelTool.cpp.

ReadPixelTool::~ReadPixelTool ( )

Definition at line 60 of file examples/qt/rastervisual/ReadPixelTool.cpp.

Member Function Documentation

bool te::qt::widgets::AbstractTool::eventFilter ( QObject *  watched,
QEvent *  e
)
virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters
watchedThe watched object.
eventThe last event sent to watched object.
Note
In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.
Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::edit::GeometriesUpdateTool, te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

Definition at line 50 of file AbstractTool.cpp.

References te::qt::widgets::AbstractTool::keyPressEvent(), te::qt::widgets::AbstractTool::m_cursor, te::qt::widgets::AbstractTool::m_display, te::qt::widgets::AbstractTool::mouseDoubleClickEvent(), te::qt::widgets::AbstractTool::mouseMoveEvent(), te::qt::widgets::AbstractTool::mousePressEvent(), and te::qt::widgets::AbstractTool::mouseReleaseEvent().

Referenced by te::qt::widgets::ZoomKeyboard::eventFilter(), te::qt::widgets::ZoomWheel::eventFilter(), and te::edit::GeometriesUpdateTool::eventFilter().

bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent *  e)
virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters
eThe key event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

Definition at line 101 of file AbstractTool.cpp.

Referenced by te::qt::widgets::AbstractTool::eventFilter().

bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent *  e)
virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters
eThe mouse event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.
Note
The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

Definition at line 96 of file AbstractTool.cpp.

Referenced by te::qt::widgets::AbstractTool::eventFilter().

bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent *  e)
virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters
eThe mouse event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::qt::widgets::Selection, te::edit::CreatePolygonTool, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::qt::widgets::PolygonAcquire, te::edit::RotateGeometryTool, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::Zoom, te::edit::AggregateAreaTool, te::qt::widgets::PointMove, te::qt::widgets::PointPicker, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::PanMiddleClick, te::edit::SubtractAreaTool, te::mnt::ProfileTools, and te::qt::plugins::mnt::ShowValuesTool.

Definition at line 86 of file AbstractTool.cpp.

Referenced by te::qt::widgets::AbstractTool::eventFilter().

bool te::qt::widgets::AbstractTool::mousePressEvent ( QMouseEvent *  e)
virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters
eThe mouse event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::qt::widgets::Selection, te::edit::CreatePolygonTool, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::edit::DeleteGeometryTool, te::edit::DeletePartTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::RotateGeometryTool, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::Zoom, te::edit::AggregateAreaTool, te::qt::widgets::PointMove, te::qt::widgets::PointPicker, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::PanMiddleClick, te::qt::widgets::ZoomLeftAndRightClick, te::edit::SubtractAreaTool, te::edit::EditInfoTool, and te::mnt::ProfileTools.

Definition at line 81 of file AbstractTool.cpp.

Referenced by te::qt::widgets::AbstractTool::eventFilter().

bool ReadPixelTool::mouseReleaseEvent ( QMouseEvent *  e)
virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters
eThe mouse event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 64 of file examples/qt/rastervisual/ReadPixelTool.cpp.

References te::map::RasterTransform::apply(), band, te::map::RasterTransform::BLUE_CHANNEL, te::map::RasterTransformConfigurer::configure(), te::rst::Grid::geoToGrid(), te::color::RGBAColor::getAlpha(), te::color::RGBAColor::getBlue(), te::se::ChannelSelection::getBlueChannel(), te::se::RasterSymbolizer::getChannelSelection(), te::se::ChannelSelection::getColorCompositionType(), te::se::SelectedChannel::getContrastEnhancement(), te::se::RasterSymbolizer::getGain(), te::se::ContrastEnhancement::getGammaValue(), te::se::ChannelSelection::getGrayChannel(), te::color::RGBAColor::getGreen(), te::se::ChannelSelection::getGreenChannel(), te::rst::Raster::getGrid(), te::common::Singleton< RasterSummaryManager >::getInstance(), te::rst::Raster::getNumberOfBands(), te::rst::Raster::getNumberOfColumns(), te::rst::Raster::getNumberOfRows(), te::se::RasterSymbolizer::getOffset(), te::se::RasterSymbolizer::getOpacity(), te::color::RGBAColor::getRed(), te::se::ChannelSelection::getRedChannel(), te::map::RasterTransform::getRGBMap(), te::se::GetString(), te::rst::Raster::getValue(), te::se::GRAY_COMPOSITION, te::map::RasterTransform::GREEN_CHANNEL, line, te::qt::widgets::AbstractTool::m_display, te::map::RasterTransform::RED_CHANNEL, te::se::RGB_COMPOSITION, te::rst::Round(), te::map::RasterTransform::setLinearTransfParameters(), te::rst::SUMMARY_MAX, te::rst::SUMMARY_MIN, te::qt::widgets::MapDisplay::transform(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

void te::qt::widgets::AbstractTool::setCursor ( const QCursor &  cursor)
virtualinherited

It sets the tool cursor.

Parameters
cursorThe cursor that will be used during the tool operation.

Reimplemented in te::edit::GeometriesUpdateTool.

Definition at line 106 of file AbstractTool.cpp.

References te::qt::widgets::AbstractTool::m_curCursor, te::qt::widgets::AbstractTool::m_cursor, and te::qt::widgets::AbstractTool::m_display.

Referenced by te::qt::widgets::ExtentAcquire::ExtentAcquire(), te::qt::widgets::Info::Info(), te::qt::widgets::Measure::Measure(), te::qt::widgets::Pan::Pan(), te::qt::widgets::PanExtent::PanExtent(), te::qt::widgets::PointMove::PointMove(), te::qt::widgets::PointPicker::PointPicker(), te::qt::widgets::PolygonAcquire::PolygonAcquire(), te::qt::widgets::Selection::Selection(), te::qt::widgets::ZoomArea::ZoomArea(), and te::qt::widgets::ZoomClick::ZoomClick().

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_curCursor
protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

Referenced by te::edit::GeometriesUpdateTool::setCursor(), te::qt::widgets::AbstractTool::setCursor(), and te::qt::widgets::AbstractTool::~AbstractTool().

QCursor te::qt::widgets::AbstractTool::m_cursor
protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::eventFilter(), te::qt::widgets::Pan::mouseReleaseEvent(), te::edit::GeometriesUpdateTool::setCursor(), and te::qt::widgets::AbstractTool::setCursor().

MapDisplay* te::qt::widgets::AbstractTool::m_display
protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::AbstractTool(), te::qt::widgets::Zoom::applyZoom(), te::edit::MergeGeometriesTool::buildEnvelope(), te::edit::EditInfoTool::buildEnvelope(), te::qt::widgets::PointMove::buildEnvelope(), te::edit::SubtractAreaTool::buildEnvelope(), te::edit::RotateGeometryTool::buildEnvelope(), te::edit::DeleteGeometryTool::buildEnvelope(), te::edit::DeletePartTool::buildEnvelope(), te::edit::AggregateAreaTool::buildEnvelope(), te::edit::MoveGeometryTool::buildEnvelope(), te::edit::DeleteGeometryByAreaTool::buildEnvelope(), te::edit::VertexTool::buildEnvelope(), te::edit::CreateLineTool::buildLine(), te::edit::CreatePointTool::buildPoint(), te::edit::SubtractAreaTool::buildPolygon(), te::edit::AggregateAreaTool::buildPolygon(), te::edit::DeleteGeometryByAreaTool::buildPolygon(), te::edit::CreatePolygonTool::buildPolygon(), te::qt::widgets::PolygonAcquire::clear(), te::qt::widgets::Measure::clear(), te::qt::widgets::CoordTracking::CoordTracking(), te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::edit::MergeGeometriesTool::draw(), te::edit::EditInfoTool::draw(), te::edit::SubtractAreaTool::draw(), te::qt::widgets::PointMove::draw(), te::edit::AggregateAreaTool::draw(), te::edit::RotateGeometryTool::draw(), te::edit::CreatePointTool::draw(), te::edit::DeleteGeometryByAreaTool::draw(), te::edit::CreateLineTool::draw(), te::edit::CreatePolygonTool::draw(), te::edit::MoveGeometryTool::draw(), te::edit::SplitPolygonTool::draw(), te::edit::VertexTool::draw(), te::qt::widgets::PanExtent::drawCurrentExtent(), SelectionTool::drawGeometries(), te::qt::widgets::PolygonAcquire::drawGeometry(), te::qt::widgets::Measure::drawGeometry(), te::edit::MergeGeometriesTool::editingFinished(), te::edit::SubtractAreaTool::editingFinished(), te::edit::AggregateAreaTool::editingFinished(), te::qt::widgets::ZoomKeyboard::eventFilter(), te::qt::widgets::ZoomWheel::eventFilter(), te::qt::widgets::AbstractTool::eventFilter(), te::qt::widgets::Selection::executeSelection(), te::edit::DeleteGeometryByAreaTool::executeSelection(), te::edit::MergeGeometriesTool::getBaseOID(), te::edit::MergeGeometriesTool::getRefEnvelope(), te::qt::widgets::Measure::Measure(), te::edit::SubtractAreaTool::mouseDoubleClickEvent(), te::edit::AggregateAreaTool::mouseDoubleClickEvent(), te::qt::widgets::PolygonAcquire::mouseDoubleClickEvent(), te::edit::CreatePolygonTool::mouseDoubleClickEvent(), te::edit::VertexTool::mouseDoubleClickEvent(), te::qt::plugins::mnt::ShowValuesTool::mouseMoveEvent(), te::qt::widgets::PanMiddleClick::mouseMoveEvent(), te::qt::widgets::ZoomClick::mouseMoveEvent(), te::qt::widgets::Pan::mouseMoveEvent(), te::qt::widgets::CoordTracking::mouseMoveEvent(), te::qt::widgets::PointMove::mouseMoveEvent(), te::qt::widgets::PointPicker::mouseMoveEvent(), te::qt::widgets::RubberBand::mouseMoveEvent(), te::qt::widgets::Zoom::mouseMoveEvent(), te::qt::widgets::PanExtent::mouseMoveEvent(), te::qt::widgets::PolygonAcquire::mouseMoveEvent(), te::edit::CreateLineTool::mouseMoveEvent(), te::edit::CreatePolygonTool::mouseMoveEvent(), te::edit::DeleteGeometryByAreaTool::mouseMoveEvent(), te::edit::MoveGeometryTool::mouseMoveEvent(), te::qt::widgets::Measure::mouseMoveEvent(), te::edit::VertexTool::mouseMoveEvent(), te::edit::EditInfoTool::mousePressEvent(), te::qt::widgets::ZoomLeftAndRightClick::mousePressEvent(), te::qt::widgets::PanMiddleClick::mousePressEvent(), te::qt::widgets::Pan::mousePressEvent(), te::qt::widgets::ZoomClick::mousePressEvent(), te::qt::widgets::PointPicker::mousePressEvent(), te::qt::widgets::PanExtent::mousePressEvent(), te::qt::widgets::PolygonAcquire::mousePressEvent(), te::edit::CreateLineTool::mousePressEvent(), te::edit::CreatePointTool::mousePressEvent(), te::edit::DeleteGeometryTool::mousePressEvent(), te::edit::DeletePartTool::mousePressEvent(), te::edit::MoveGeometryTool::mousePressEvent(), te::edit::DeleteGeometryByAreaTool::mousePressEvent(), te::edit::CreatePolygonTool::mousePressEvent(), te::qt::widgets::Measure::mousePressEvent(), te::qt::widgets::ReadPixelTool::mouseReleaseEvent(), SelectionTool::mouseReleaseEvent(), mouseReleaseEvent(), te::mnt::ProfileTools::mouseReleaseEvent(), te::edit::SubtractAreaTool::mouseReleaseEvent(), te::qt::widgets::PanMiddleClick::mouseReleaseEvent(), te::qt::widgets::ZoomArea::mouseReleaseEvent(), te::qt::widgets::Pan::mouseReleaseEvent(), te::qt::widgets::ZoomClick::mouseReleaseEvent(), te::qt::widgets::PointMove::mouseReleaseEvent(), te::qt::widgets::RubberBand::mouseReleaseEvent(), te::qt::widgets::PointPicker::mouseReleaseEvent(), te::qt::widgets::ExtentAcquire::mouseReleaseEvent(), te::qt::widgets::Zoom::mouseReleaseEvent(), te::edit::AggregateAreaTool::mouseReleaseEvent(), te::edit::CreatePolygonTool::mouseReleaseEvent(), te::qt::widgets::Selection::mouseReleaseEvent(), te::qt::widgets::Info::mouseReleaseEvent(), te::qt::widgets::Measure::onExtentChanged(), te::edit::MergeGeometriesTool::pickFeature(), te::edit::EditInfoTool::pickFeature(), te::edit::SubtractAreaTool::pickFeature(), te::edit::RotateGeometryTool::pickFeature(), te::edit::AggregateAreaTool::pickFeature(), te::edit::MoveGeometryTool::pickFeature(), te::edit::VertexTool::pickFeature(), te::edit::SplitPolygonTool::pickFeatures(), te::qt::widgets::PolygonAcquire::PolygonAcquire(), SelectionTool::SelectionTool(), te::edit::GeometriesUpdateTool::setCursor(), te::qt::widgets::AbstractTool::setCursor(), te::edit::SplitPolygonTool::splitPolygon(), te::edit::SubtractAreaTool::storeUndoCommand(), te::edit::AggregateAreaTool::storeUndoCommand(), te::edit::MoveGeometryTool::storeUndoCommand(), te::edit::CreatePolygonTool::storeUndoCommand(), te::edit::VertexTool::storeUndoCommand(), te::qt::widgets::ZoomKeyboard::ZoomKeyboard(), te::qt::widgets::AbstractTool::~AbstractTool(), te::qt::widgets::Info::~Info(), te::qt::widgets::Measure::~Measure(), te::qt::widgets::PolygonAcquire::~PolygonAcquire(), and SelectionTool::~SelectionTool().

The documentation for this class was generated from the following files:
