#include <EditInfoTool.h>

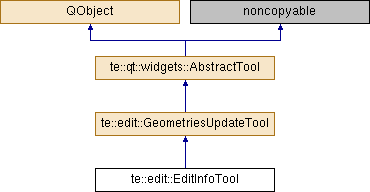

Inheritance diagram for te::edit::EditInfoTool:

Signals
void	geometriesEdited ()

void	geometriesStarted ()

void	toolDeleted ()

Public Member Functions
void	disableMouseEvent (QMouseEvent::Type mEvent)

	EditInfoTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)

std::string	getLayerId ()

bool	isInUse () const

virtual void	resetVisualizationTool ()

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

	~EditInfoTool ()

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Protected Attributes
QCursor	m_curCursor
	The current mapdisplay cursor. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

te::map::AbstractLayer *	m_layer

QMouseEvent::Type	m_mEvent

Private Slots
void	onAttributesTreeWidgetItemDoubleClicked (QTreeWidgetItem *item, int column)

void	onCancelPushButtonPressed ()

void	onOkPushButtonPressed ()

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	getInfo (const te::gm::Envelope &e)

std::unique_ptr< te::dt::AbstractData >	getValue (int type, QString value) const

void	pickFeature (const te::map::AbstractLayerPtr &layer, const QPointF &pos)

void	storeFeature ()

void	updateCursor ()

Private Attributes
std::map< std::size_t, te::dt::AbstractData * >	m_data

te::da::DataSet *	m_dataset
	The attributes dataset type. More...

QDialog *	m_dialog

QTreeWidget *	m_infoWidget
	Widget used to show the informations. More...

std::vector< std::size_t >	m_restrictivePropertyPos

Detailed Description

Definition at line 57 of file EditInfoTool.h.

Constructor & Destructor Documentation

te::edit::EditInfoTool::EditInfoTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

Definition at line 62 of file EditInfoTool.cpp.

References m_dialog, m_infoWidget, onAttributesTreeWidgetItemDoubleClicked(), onCancelPushButtonPressed(), onOkPushButtonPressed(), and updateCursor().

te::edit::EditInfoTool::~EditInfoTool ( )

Definition at line 103 of file EditInfoTool.cpp.

References m_dialog.

Member Function Documentation

te::gm::Envelope te::edit::EditInfoTool::buildEnvelope ( const QPointF & pos )

private

Definition at line 161 of file EditInfoTool.cpp.

References te::qt::widgets::AbstractTool::m_display, and te::qt::widgets::MapDisplay::transform().

Referenced by mousePressEvent(), and pickFeature().

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type mEvent )

inherited

Definition at line 82 of file GeometriesUpdateTool.cpp.

References te::edit::GeometriesUpdateTool::m_mEvent.

void te::edit::EditInfoTool::draw ( )

private

Definition at line 393 of file EditInfoTool.cpp.

References te::edit::Renderer::begin(), te::edit::Renderer::draw(), te::edit::Renderer::drawRepository(), te::edit::Renderer::end(), te::qt::widgets::MapDisplay::getDraftPixmap(), te::map::MapDisplay::getExtent(), te::edit::Feature::getGeometry(), te::map::AbstractLayer::getId(), te::common::Singleton< T >::getInstance(), te::map::MapDisplay::getSRID(), te::gm::Envelope::isValid(), te::qt::widgets::AbstractTool::m_display, te::edit::GeometriesUpdateTool::m_feature, te::edit::GeometriesUpdateTool::m_layer, and te::edit::Renderer::setPolygonStyle().

Referenced by getInfo().

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

Referenced by te::edit::MergeGeometriesTool::editingFinished(), te::edit::SubtractAreaTool::editingFinished(), te::edit::AggregateAreaTool::editingFinished(), te::edit::SplitPolygonTool::editingFinished(), te::edit::CreatePolygonTool::editingFinished(), te::edit::CreatePointTool::mouseDoubleClickEvent(), te::edit::CreateLineTool::mouseDoubleClickEvent(), te::mnt::ProfileTools::mouseReleaseEvent(), te::edit::DeleteGeometryByAreaTool::mouseReleaseEvent(), te::edit::MoveGeometryTool::mouseReleaseEvent(), te::edit::DeleteGeometryTool::storeFeature(), te::edit::DeletePartTool::storeFeature(), and te::edit::VertexTool::storeFeature().

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

Referenced by te::edit::CreatePolygonTool::mousePressEvent().

void te::edit::EditInfoTool::getInfo ( const te::gm::Envelope & e )

private

Definition at line 192 of file EditInfoTool.cpp.

References te::dt::AbstractData::clone(), draw(), te::dt::GEOMETRY_TYPE, te::da::DataSet::getAsString(), te::gm::Envelope::getCenter(), te::edit::Feature::getData(), te::da::GetFirstGeomProperty(), te::da::GetFirstSpatialPropertyPos(), te::edit::Feature::getGeometry(), te::da::DataSet::getGeometry(), te::gm::GetGeomFromEnvelope(), te::da::DataSet::getNumProperties(), te::da::GetOIDPropertyPos(), te::da::DataSet::getPropertyDataType(), te::da::DataSet::getPropertyName(), te::da::GetPropertyPos(), te::map::AbstractLayer::getSchema(), te::map::AbstractLayer::getSRID(), te::da::DataSet::getString(), te::da::DataSet::getValue(), te::da::DataSet::isNull(), m_data, m_dataset, te::edit::GeometriesUpdateTool::m_feature, m_infoWidget, te::edit::GeometriesUpdateTool::m_layer, m_restrictivePropertyPos, te::da::DataSet::moveNext(), te::dt::STRING_TYPE, te::gm::Coord2D::x, and te::gm::Coord2D::y.

Referenced by mousePressEvent().

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

Definition at line 54 of file GeometriesUpdateTool.cpp.

References te::map::AbstractLayer::getId(), and te::edit::GeometriesUpdateTool::m_layer.

std::unique_ptr< te::dt::AbstractData > te::edit::EditInfoTool::getValue	(	int	type,
		QString	value
	)		const

private

Definition at line 331 of file EditInfoTool.cpp.

References te::dt::DOUBLE_TYPE, te::dt::FLOAT_TYPE, te::dt::INT16_TYPE, te::dt::INT32_TYPE, te::dt::INT64_TYPE, te::dt::NUMERIC_TYPE, and te::dt::STRING_TYPE.

Referenced by onOkPushButtonPressed().

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

Definition at line 59 of file GeometriesUpdateTool.cpp.

References te::edit::GeometriesUpdateTool::m_isInUse.

Referenced by te::qt::plugins::edit::ToolBar::~ToolBar().

bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

Definition at line 101 of file AbstractTool.cpp.

Referenced by te::qt::widgets::AbstractTool::eventFilter().

bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

Definition at line 96 of file AbstractTool.cpp.

Referenced by te::qt::widgets::AbstractTool::eventFilter().

bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters
