A factory to build widget objects. More...

#include <SimplePropertyWidgetFactory.h>

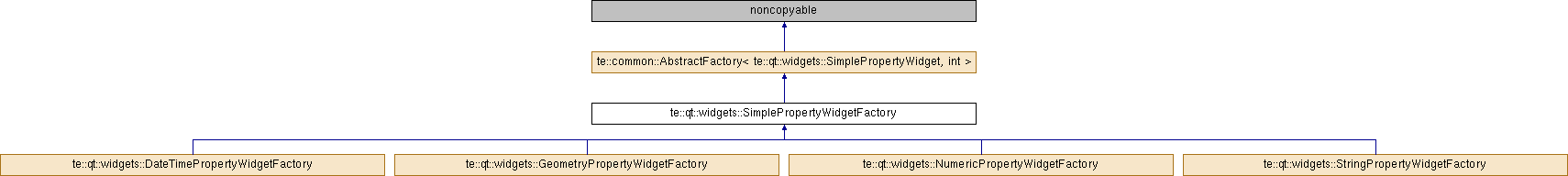

Inheritance diagram for te::qt::widgets::SimplePropertyWidgetFactory:

Public Types
typedef FactoryDictionary < AbstractFactory < te::qt::widgets::SimplePropertyWidget, int, std::less< int > >, int, std::less< int > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
const int &	getKey () const
	It returns the factory key associated to the concreate factory. More...

virtual int	getType () const =0
	It returns the type of component widget that the factory knows how to create. More...

virtual	~SimplePropertyWidgetFactory ()
	Virtual destructor. More...

Static Public Member Functions
static const factory_type *	find (const int &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static te::qt::widgets::SimplePropertyWidget *	make (const int &type)

static te::qt::widgets::SimplePropertyWidget *	make (const int &type, QWidget *parent=0)

Protected Member Functions
virtual te::qt::widgets::SimplePropertyWidget *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...

virtual te::qt::widgets::SimplePropertyWidget *	create (QWidget *Parent=0)=0

	SimplePropertyWidgetFactory (const int &factoryKey)
	It creates the factory. More...

Protected Attributes
int	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

A factory to build widget objects.

Definition at line 49 of file SimplePropertyWidgetFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<te::qt::widgets::SimplePropertyWidget , int , std::less<int > >, int , std::less<int > > te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::qt::widgets::SimplePropertyWidgetFactory::~SimplePropertyWidgetFactory ( )

virtual

Virtual destructor.

Note: It will automatically unregister the factory from the dictionary.

Definition at line 49 of file SimplePropertyWidgetFactory.cpp.

te::qt::widgets::SimplePropertyWidgetFactory::SimplePropertyWidgetFactory ( const int & factoryKey )

protected

It creates the factory.

The key of a ComponentWidgetFactory is a string.

Parameters

factoryKey The key that identifies the factory.

Definition at line 54 of file SimplePropertyWidgetFactory.cpp.

Member Function Documentation

virtual te::qt::widgets::SimplePropertyWidget * te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns: It returns an object created by the concrete factory.

Implemented in te::qt::widgets::DateTimePropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, and te::qt::widgets::StringPropertyWidgetFactory.

virtual te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::create ( QWidget * Parent = 0 )

protectedpure virtual

Implemented in te::qt::widgets::DateTimePropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, and te::qt::widgets::StringPropertyWidgetFactory.

Referenced by make().

static const factory_type* te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::find ( const int & factoryKey )

staticinherited

Referenced by te::qt::widgets::NewPropertyWidget::onDataTypeComboBoxActivated().

static dictionary_type& te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

const int & te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

virtual int te::qt::widgets::SimplePropertyWidgetFactory::getType ( ) const

pure virtual

It returns the type of component widget that the factory knows how to create.

Returns: The type of component widget that the factory knows how to create.

Implemented in te::qt::widgets::DateTimePropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, and te::qt::widgets::StringPropertyWidgetFactory.

te::qt::widgets::SimplePropertyWidget * te::qt::widgets::SimplePropertyWidgetFactory::make ( const int & type )

static

Definition at line 30 of file SimplePropertyWidgetFactory.cpp.

References te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::make().

Referenced by te::qt::widgets::NewPropertyWidget::onDataTypeComboBoxActivated().

te::qt::widgets::SimplePropertyWidget * te::qt::widgets::SimplePropertyWidgetFactory::make	(	const int &	type,
		QWidget *	parent = `0`
	)

static

Definition at line 35 of file SimplePropertyWidgetFactory.cpp.

References create(), te::common::FactoryDictionary< TFACTORY, TFACTORYKEY, TKEYCOMPARE >::find(), and te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::getDictionary().

Member Data Documentation

int te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git/src/terralib/qt/widgets/property/SimplePropertyWidgetFactory.h
/home/castejon/castejon_files/develop/terralib5/git/src/terralib/qt/widgets/property/SimplePropertyWidgetFactory.cpp
