The CoverageStyle defines the styling that is to be applied to a subset of Coverage data. More...

#include <CoverageStyle.h>

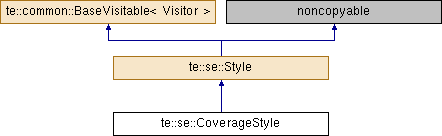

Inheritance diagram for te::se::CoverageStyle:

Public Types
typedef void	ReturnType

typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const =0
	It call the visit method from the guest object. More...

Initializer Methods
Methods related to instantiation and destruction.
	CoverageStyle ()
	It initializes a new CoverageStyle. More...

	~CoverageStyle ()
	Destructor. More...

Accessor methods
Methods used to get or set properties.
void	setCoverageName (std::string *name)

const std::string *	getCoverageName () const

const std::string &	getType () const
	It returns the style type. More...

Accessor methods
Methods used to get or set properties.
void	setName (std::string *name)

const std::string *	getName () const

void	setDescription (Description *d)

const Description *	getDescription () const

void	push_back (const std::string &semanticTypeIdentifier)

void	push_back (Rule *rule)

void	push_back (te::xl::SimpleLink *onlineResource)

const std::string &	getSemanticTypeIdentifier (std::size_t i)

const std::vector< std::string > *	getSemanticTypeIdentifiers () const

const std::vector< Rule * > &	getRules () const

Rule *	getRule (std::size_t i) const

const std::vector < te::xl::SimpleLink * > &	getOnlineResources () const

const te::xl::SimpleLink *	getOnlineResource (std::size_t i) const

void	setVersion (const std::string &v)

const std::string &	getVersion () const

Protected Attributes
Description *	m_description
	It gives an informative description of the style. (Optional) More...

std::string *	m_name
	It allows the style to be referenced. Names must be unique in the context in which they are defined. (Optional) More...

std::vector< te::xl::SimpleLink * >	m_onlineResources
	It refers to an external document. (Mandatory if m_rules is empty, otherwise, it is optional) More...

std::vector< Rule * >	m_rules
	It allows conditional rendering. (Mandatory if m_onlineResource is empty, otherwise, it is optional) More...

std::vector< std::string > *	m_semanticTypeIdentifiers
	The SemanticTypeIdentifier is experimental and is intended to be used to identify what the feature style is suitable to be used for using community-controlled name(s). (Optional) More...

std::string	m_version
	The version is an optional attribute on the FeatureTypeStyle that identifies the SE version number that the FeatureTypeStyle corresponds to. (Optional) More...

Private Attributes
std::string *	m_coverageName
	It identifies the specific coverage that the coverage style is for. (Optional) More...

Static Private Attributes
static const std::string	sm_type
	A static data member used in the implementation of getType method. More...

Detailed Description

The CoverageStyle defines the styling that is to be applied to a subset of Coverage data.

See Also: Style, FeatureTypeStyle

Definition at line 45 of file CoverageStyle.h.

Member Typedef Documentation

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

te::se::CoverageStyle::CoverageStyle ( )

It initializes a new CoverageStyle.

Definition at line 31 of file CoverageStyle.cpp.

te::se::CoverageStyle::~CoverageStyle ( )

Destructor.

Definition at line 36 of file CoverageStyle.cpp.

Member Function Documentation

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType & guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest The guest or visitor.

Returns: Any valid value define by the template type R.

const std::string * te::se::CoverageStyle::getCoverageName ( ) const

Definition at line 47 of file CoverageStyle.cpp.

Referenced by CoverageStyleWriter().

const te::se::Description * te::se::Style::getDescription ( ) const

inherited

Definition at line 70 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const std::string * te::se::Style::getName ( ) const

inherited

Definition at line 59 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const te::xl::SimpleLink * te::se::Style::getOnlineResource ( std::size_t i ) const

inherited

Definition at line 122 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const std::vector< te::xl::SimpleLink * > & te::se::Style::getOnlineResources ( ) const

inherited

Definition at line 117 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

te::se::Rule * te::se::Style::getRule ( std::size_t i ) const

inherited

Definition at line 105 of file Style.cpp.

Referenced by te::qt::widgets::ChartConfigurer::config(), CoverageStyleWriter(), te::graph::LayerRenderer::draw(), te::map::QueryLayerRenderer::drawGeometries(), te::map::DrawGeometries(), te::map::AbstractLayerRenderer::drawLayerGeometries(), te::map::AbstractLayerRenderer::drawLayerGroupingMem(), te::map::DrawRaster(), FeatureTypeStyleWriter(), te::qt::widgets::RasterNavigatorWidget::getCompositionInfo(), te::se::GetRasterSymbolizer(), and te::qt::widgets::ReadPixelTool::mouseReleaseEvent().

const std::vector< te::se::Rule * > & te::se::Style::getRules ( ) const

inherited

Definition at line 94 of file Style.cpp.

Referenced by CoverageStyleWriter(), te::graph::LayerRenderer::draw(), te::map::QueryLayerRenderer::drawGeometries(), te::map::DrawGeometries(), te::map::AbstractLayerRenderer::drawLayerGeometries(), te::map::AbstractLayerRenderer::drawLayerGroupingMem(), te::map::DrawRaster(), FeatureTypeStyleWriter(), te::qt::widgets::RasterNavigatorWidget::getCompositionInfo(), te::se::GetRasterSymbolizer(), te::vp::LayerItem::LayerItem(), and te::qt::widgets::ReadPixelTool::mouseReleaseEvent().

const std::string & te::se::Style::getSemanticTypeIdentifier ( std::size_t i )

inherited

Definition at line 83 of file Style.cpp.

const std::vector< std::string > * te::se::Style::getSemanticTypeIdentifiers ( ) const

inherited

Definition at line 89 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const std::string & te::se::CoverageStyle::getType ( ) const

virtual

It returns the style type.

Returns: The style type.

Implements te::se::Style.

Definition at line 52 of file CoverageStyle.cpp.

const std::string & te::se::Style::getVersion ( ) const

inherited

Definition at line 133 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

void te::se::Style::push_back ( const std::string & semanticTypeIdentifier )

inherited

Definition at line 75 of file Style.cpp.

Referenced by te::se::CreateCoverageStyle(), and te::se::CreateFeatureTypeStyle().

void te::se::Style::push_back ( Rule * rule )

inherited

Definition at line 99 of file Style.cpp.

void te::se::Style::push_back ( te::xl::SimpleLink * onlineResource )

inherited

Definition at line 111 of file Style.cpp.

void te::se::CoverageStyle::setCoverageName ( std::string * name )

Definition at line 41 of file CoverageStyle.cpp.

void te::se::Style::setDescription ( Description * d )

inherited

Definition at line 64 of file Style.cpp.

void te::se::Style::setName ( std::string * name )

inherited

Definition at line 53 of file Style.cpp.

void te::se::Style::setVersion ( const std::string & v )

inherited

Definition at line 128 of file Style.cpp.

Member Data Documentation

std::string* te::se::CoverageStyle::m_coverageName

private

It identifies the specific coverage that the coverage style is for. (Optional)

Definition at line 79 of file CoverageStyle.h.

Description* te::se::Style::m_description

protectedinherited

It gives an informative description of the style. (Optional)

Definition at line 131 of file Style.h.

std::string* te::se::Style::m_name

protectedinherited

It allows the style to be referenced. Names must be unique in the context in which they are defined. (Optional)

Definition at line 130 of file Style.h.

std::vector<te::xl::SimpleLink*> te::se::Style::m_onlineResources

protectedinherited

It refers to an external document. (Mandatory if m_rules is empty, otherwise, it is optional)

Definition at line 134 of file Style.h.

std::vector<Rule*> te::se::Style::m_rules

protectedinherited

It allows conditional rendering. (Mandatory if m_onlineResource is empty, otherwise, it is optional)

Definition at line 133 of file Style.h.

std::vector<std::string>* te::se::Style::m_semanticTypeIdentifiers

protectedinherited

The SemanticTypeIdentifier is experimental and is intended to be used to identify what the feature style is suitable to be used for using community-controlled name(s). (Optional)

Definition at line 132 of file Style.h.

std::string te::se::Style::m_version

protectedinherited

The version is an optional attribute on the FeatureTypeStyle that identifies the SE version number that the FeatureTypeStyle corresponds to. (Optional)

Definition at line 135 of file Style.h.

const std::string te::se::CoverageStyle::sm_type

staticprivate

A static data member used in the implementation of getType method.

Definition at line 80 of file CoverageStyle.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git/src/terralib/se/CoverageStyle.h
/home/castejon/castejon_files/develop/terralib5/git/src/terralib/se/CoverageStyle.cpp
