The Style defines the styling that is to be applied to a geographic dataset (vector geometries or coverage). More...

#include <Style.h>

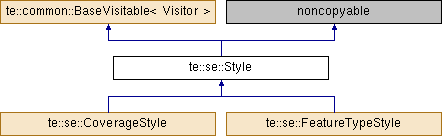

Inheritance diagram for te::se::Style:

Public Types
typedef void	ReturnType

typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const =0
	It call the visit method from the guest object. More...

Initializer Methods
Methods related to instantiation and destruction.
	Style ()
	It initializes a new Style. More...

virtual	~Style ()
	Virtual destructor. More...

Accessor methods
Methods used to get or set properties.
void	setName (std::string *name)

const std::string *	getName () const

void	setDescription (Description *d)

const Description *	getDescription () const

void	push_back (const std::string &semanticTypeIdentifier)

const std::string &	getSemanticTypeIdentifier (std::size_t i)

const std::vector< std::string > *	getSemanticTypeIdentifiers () const

void	push_back (Rule *rule)

const std::vector< Rule * > &	getRules () const

Rule *	getRule (std::size_t i) const

void	push_back (te::xl::SimpleLink *onlineResource)

const std::vector < te::xl::SimpleLink * > &	getOnlineResources () const

const te::xl::SimpleLink *	getOnlineResource (std::size_t i) const

void	setVersion (const std::string &v)

const std::string &	getVersion () const

virtual const std::string &	getType () const =0
	It returns the style type. More...

Protected Attributes
Description *	m_description
	It gives an informative description of the style. (Optional) More...

std::string *	m_name
	It allows the style to be referenced. Names must be unique in the context in which they are defined. (Optional) More...

std::vector< te::xl::SimpleLink * >	m_onlineResources
	It refers to an external document. (Mandatory if m_rules is empty, otherwise, it is optional) More...

std::vector< Rule * >	m_rules
	It allows conditional rendering. (Mandatory if m_onlineResource is empty, otherwise, it is optional) More...

std::vector< std::string > *	m_semanticTypeIdentifiers
	The SemanticTypeIdentifier is experimental and is intended to be used to identify what the feature style is suitable to be used for using community-controlled name(s). (Optional) More...

std::string	m_version
	The version is an optional attribute on the FeatureTypeStyle that identifies the SE version number that the FeatureTypeStyle corresponds to. (Optional) More...

Detailed Description

The Style defines the styling that is to be applied to a geographic dataset (vector geometries or coverage).

The ordering to use for the Rules inside of a Style is following the "painters model" with the first item in a list being the first item plotted and hence being on the "bottom".

See Also: FeatureTypeStyle, CoverageStyle, Description, Rule

Definition at line 65 of file Style.h.

Member Typedef Documentation

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

te::se::Style::Style ( )

It initializes a new Style.

Definition at line 36 of file Style.cpp.

te::se::Style::~Style ( )

virtual

Virtual destructor.

Definition at line 44 of file Style.cpp.

References te::common::FreeContents().

Member Function Documentation

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType & guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest The guest or visitor.

Returns: Any valid value define by the template type R.

const te::se::Description * te::se::Style::getDescription ( ) const

Definition at line 70 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const std::string * te::se::Style::getName ( ) const

Definition at line 59 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const te::xl::SimpleLink * te::se::Style::getOnlineResource ( std::size_t i ) const

Definition at line 122 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

const std::vector< te::xl::SimpleLink * > & te::se::Style::getOnlineResources ( ) const

Definition at line 117 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

te::se::Rule * te::se::Style::getRule ( std::size_t i ) const

Definition at line 105 of file Style.cpp.

Referenced by te::qt::widgets::ChartConfigurer::config(), CoverageStyleWriter(), te::graph::LayerRenderer::draw(), te::map::QueryLayerRenderer::drawGeometries(), te::map::DrawGeometries(), te::map::AbstractLayerRenderer::drawLayerGeometries(), te::map::AbstractLayerRenderer::drawLayerGroupingMem(), te::map::DrawRaster(), FeatureTypeStyleWriter(), te::qt::widgets::RasterNavigatorWidget::getCompositionInfo(), te::se::GetRasterSymbolizer(), and te::qt::widgets::ReadPixelTool::mouseReleaseEvent().

const std::vector< te::se::Rule * > & te::se::Style::getRules ( ) const

Definition at line 94 of file Style.cpp.

Referenced by CoverageStyleWriter(), te::graph::LayerRenderer::draw(), te::map::QueryLayerRenderer::drawGeometries(), te::map::DrawGeometries(), te::map::AbstractLayerRenderer::drawLayerGeometries(), te::map::AbstractLayerRenderer::drawLayerGroupingMem(), te::map::DrawRaster(), FeatureTypeStyleWriter(), te::qt::widgets::RasterNavigatorWidget::getCompositionInfo(), te::se::GetRasterSymbolizer(), te::vp::LayerItem::LayerItem(), and te::qt::widgets::ReadPixelTool::mouseReleaseEvent().

const std::string & te::se::Style::getSemanticTypeIdentifier ( std::size_t i )

Definition at line 83 of file Style.cpp.

const std::vector< std::string > * te::se::Style::getSemanticTypeIdentifiers ( ) const

Definition at line 89 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

virtual const std::string& te::se::Style::getType ( ) const

pure virtual

It returns the style type.

Returns: The style type.

Implemented in te::se::CoverageStyle, and te::se::FeatureTypeStyle.

Referenced by te::serialize::Style::write().

const std::string & te::se::Style::getVersion ( ) const

Definition at line 133 of file Style.cpp.

Referenced by CoverageStyleWriter(), and FeatureTypeStyleWriter().

void te::se::Style::push_back ( const std::string & semanticTypeIdentifier )

Definition at line 75 of file Style.cpp.

Referenced by te::se::CreateCoverageStyle(), and te::se::CreateFeatureTypeStyle().

void te::se::Style::push_back ( Rule * rule )

Definition at line 99 of file Style.cpp.

void te::se::Style::push_back ( te::xl::SimpleLink * onlineResource )

Definition at line 111 of file Style.cpp.

void te::se::Style::setDescription ( Description * d )

Definition at line 64 of file Style.cpp.

void te::se::Style::setName ( std::string * name )

Definition at line 53 of file Style.cpp.

void te::se::Style::setVersion ( const std::string & v )

Definition at line 128 of file Style.cpp.

Member Data Documentation

Description* te::se::Style::m_description

protected

It gives an informative description of the style. (Optional)

Definition at line 131 of file Style.h.

std::string* te::se::Style::m_name

protected

It allows the style to be referenced. Names must be unique in the context in which they are defined. (Optional)

Definition at line 130 of file Style.h.

std::vector<te::xl::SimpleLink*> te::se::Style::m_onlineResources

protected

It refers to an external document. (Mandatory if m_rules is empty, otherwise, it is optional)

Definition at line 134 of file Style.h.

std::vector<Rule*> te::se::Style::m_rules

protected

It allows conditional rendering. (Mandatory if m_onlineResource is empty, otherwise, it is optional)

Definition at line 133 of file Style.h.

std::vector<std::string>* te::se::Style::m_semanticTypeIdentifiers

protected

The SemanticTypeIdentifier is experimental and is intended to be used to identify what the feature style is suitable to be used for using community-controlled name(s). (Optional)

Definition at line 132 of file Style.h.

std::string te::se::Style::m_version

protected

The version is an optional attribute on the FeatureTypeStyle that identifies the SE version number that the FeatureTypeStyle corresponds to. (Optional)

Definition at line 135 of file Style.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git/src/terralib/se/Style.h
/home/castejon/castejon_files/develop/terralib5/git/src/terralib/se/Style.cpp
