te::qt::widgets::HistogramFrameFactory Class Reference

A factory to build the histogram frame object. More...

#include <HistogramFrameFactory.h>

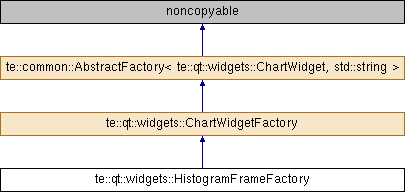

Inheritance diagram for te::qt::widgets::HistogramFrameFactory:

Public Types
typedef FactoryDictionary < AbstractFactory < te::qt::widgets::ChartWidget, std::string, std::less < std::string > >, std::string, std::less< std::string > >	dictionary_type
typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...
	~HistogramFrameFactory ()

Static Public Member Functions
static void	finalize ()
static const factory_type *	find (const std::string &factoryKey)
static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...
static void	initialize ()
static te::qt::widgets::ChartWidget *	make (const std::string &cwType)
static te::qt::widgets::ChartWidget *	make (const std::string &cwType, QWidget *parent=0)

Protected Member Functions
te::qt::widgets::ChartWidget *	build ()
	Concrete factories (derived from this one) must implement this method in order to create objects. More...
virtual te::qt::widgets::ChartWidget *	create (QWidget *parent=0)
	HistogramFrameFactory ()

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Static Private Attributes
static HistogramFrameFactory *	sm_factory

Detailed Description

A factory to build the histogram frame object.

Definition at line 50 of file HistogramFrameFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<te::qt::widgets::ChartWidget , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::qt::widgets::HistogramFrameFactory::~HistogramFrameFactory

(

)

Definition at line 43 of file HistogramFrameFactory.cpp.

te::qt::widgets::HistogramFrameFactory::HistogramFrameFactory ( )

protected

Definition at line 53 of file HistogramFrameFactory.cpp.

Referenced by initialize().

Member Function Documentation

te::qt::widgets::ChartWidget * te::qt::widgets::HistogramFrameFactory::build ( )

protectedvirtual

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns

It returns an object created by the concrete factory.

Implements te::common::AbstractFactory< te::qt::widgets::ChartWidget, std::string >.

Definition at line 48 of file HistogramFrameFactory.cpp.

te::qt::widgets::ChartWidget * te::qt::widgets::HistogramFrameFactory::create ( QWidget *  parent = 0 )

protectedvirtual

Implements te::qt::widgets::ChartWidgetFactory.

Definition at line 59 of file HistogramFrameFactory.cpp.

void te::qt::widgets::HistogramFrameFactory::finalize ( )

static

Definition at line 37 of file HistogramFrameFactory.cpp.

Referenced by te::qt::widgets::ChartProperties::ChartProperties(), and initialize().

static const factory_type* te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::find ( const std::string &  factoryKey )

staticinherited

static dictionary_type& te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns

A reference to the internal dictionary.

Referenced by te::qt::widgets::ChartProperties::ChartProperties().

const std::string & te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns

The factory key associated to the concreate factory.

void te::qt::widgets::HistogramFrameFactory::initialize ( )

static

Definition at line 31 of file HistogramFrameFactory.cpp.

References finalize(), HistogramFrameFactory(), and sm_factory.

Referenced by te::qt::widgets::ChartProperties::ChartProperties().

te::qt::widgets::ChartWidget * te::qt::widgets::ChartWidgetFactory::make ( const std::string &  cwType )

staticinherited

Definition at line 29 of file ChartWidgetFactory.cpp.

References te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::make().

Referenced by te::qt::widgets::ChartProperties::ChartProperties(), and te::qt::widgets::ChartProperties::onItemClicked().

te::qt::widgets::ChartWidget * te::qt::widgets::ChartWidgetFactory::make ( const std::string &  cwType, QWidget *  parent = 0  )

staticinherited

Definition at line 34 of file ChartWidgetFactory.cpp.

References te::qt::widgets::ChartWidgetFactory::create(), te::common::FactoryDictionary< TFACTORY, TFACTORYKEY, TKEYCOMPARE >::find(), and te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::getDictionary().

Member Data Documentation

std::string te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

te::qt::widgets::HistogramFrameFactory * te::qt::widgets::HistogramFrameFactory::sm_factory

staticprivate

Definition at line 70 of file HistogramFrameFactory.h.

Referenced by initialize().

---

The documentation for this class was generated from the following files:

• /home/castejon/castejon_files/develop/terralib5/git/src/terralib/qt/widgets/charts/HistogramFrameFactory.h
• /home/castejon/castejon_files/develop/terralib5/git/src/terralib/qt/widgets/charts/HistogramFrameFactory.cpp
