This class implements a concrete tool to select layer features using an extent. More...

#include <Selection.h>

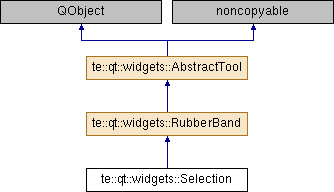

Inheritance diagram for te::qt::widgets::Selection:

Public Slots
void	setLayers (const std::list< te::map::AbstractLayerPtr > &layers)

Signals
void	layerSelectedObjectsChanged (const te::map::AbstractLayerPtr &layer)

Public Member Functions
virtual void	setCursor (const QCursor &cursor)

Initializer Methods
Methods related to instantiation and destruction.
	Selection (MapDisplay display, const QCursor &cursor, const std::list< te::map::AbstractLayerPtr > &layers, QObject parent=0)
	It constructs a selection tool associated with the given map display. More...

	~Selection ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)

bool	mouseMoveEvent (QMouseEvent *e)

bool	mouseReleaseEvent (QMouseEvent *e)

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)

Protected Attributes
QBrush	m_brush
	The brush used to draw the rubber band shape. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

QPoint	m_origin
	Origin point on mouse pressed. More...

QPen	m_pen
	The pen used to draw the rubber band shape. More...

QRectF	m_rect
	The boundary rectangle managed by the rubber band. More...

Private Member Functions
void	executeSelection (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &e)

Private Attributes
bool	m_keepPreviousSelection
	Flag that indicates if the tool must keep the previous selection. More...

std::list < te::map::AbstractLayerPtr >	m_layers
	The layer list that will be selected. More...

bool	m_selectionByPointing
	Flag that indicates if the selection is by pointing. More...

bool	m_selectionStarted
	Flag that indicates if selection operation was started. More...

Detailed Description

This class implements a concrete tool to select layer features using an extent.

Definition at line 63 of file Selection.h.

Constructor & Destructor Documentation

Selection::Selection	(	MapDisplay *	display,
		const QCursor &	cursor,
		const std::list< te::map::AbstractLayerPtr > &	layers,
		QObject *	parent = `0`
	)

It constructs a selection tool associated with the given map display.

Parameters

display	The map display associated with the tool.
cursor	The tool cursor.
layer	The layer list that will be selected.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

Definition at line 53 of file Selection.cpp.

References te::map::DashLine, te::qt::widgets::RubberBand::m_brush, te::qt::widgets::RubberBand::m_pen, and te::qt::widgets::AbstractTool::setCursor().

Selection::~Selection ( )

Destructor.

Definition at line 69 of file Selection.cpp.

Member Function Documentation

bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

Definition at line 50 of file AbstractTool.cpp.

Referenced by te::qt::widgets::ZoomKeyboard::eventFilter(), and te::qt::widgets::ZoomWheel::eventFilter().

void Selection::executeSelection	(	const te::map::AbstractLayerPtr &	layer,
		const te::gm::Envelope &	e
	)

private

Definition at line 140 of file Selection.cpp.

References te::da::ObjectIdSet::clone(), te::da::GenerateOID(), te::gm::Envelope::getCenter(), te::da::GetEmptyOIDSet(), te::da::GetFirstGeomProperty(), te::gm::GetGeomFromEnvelope(), te::dt::Property::getName(), te::da::GetOIDPropertyNames(), te::gm::INTERSECTS, te::gm::Envelope::intersects(), te::da::ObjectIdSet::symDifference(), TE_UNKNOWN_SRS, te::gm::Envelope::transform(), te::map::VISIBLE, te::gm::Coord2D::x, and te::gm::Coord2D::y.

void te::qt::widgets::Selection::layerSelectedObjectsChanged ( const te::map::AbstractLayerPtr & layer )

signal

This signal is emitted when the layer selection changed.

bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::qt::widgets::Measure, and te::qt::widgets::PolygonAcquire.

Definition at line 93 of file AbstractTool.cpp.

bool Selection::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::RubberBand.

Definition at line 84 of file Selection.cpp.

References te::qt::widgets::RubberBand::mouseMoveEvent().

bool Selection::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::RubberBand.

Definition at line 73 of file Selection.cpp.

References te::qt::widgets::RubberBand::mousePressEvent().

bool Selection::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::RubberBand.

Definition at line 92 of file Selection.cpp.

References te::qt::widgets::RubberBand::mouseReleaseEvent().

void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Definition at line 98 of file AbstractTool.cpp.

Referenced by te::qt::widgets::Info::Info(), te::qt::widgets::Pan::Pan(), te::qt::widgets::PanExtent::PanExtent(), te::qt::widgets::PointPicker::PointPicker(), Selection(), te::qt::widgets::ZoomArea::ZoomArea(), and te::qt::widgets::ZoomClick::ZoomClick().

void Selection::setLayers ( const std::list< te::map::AbstractLayerPtr > & layers )

slot

Definition at line 135 of file Selection.cpp.

Member Data Documentation

QBrush te::qt::widgets::RubberBand::m_brush

protectedinherited

The brush used to draw the rubber band shape.

Definition at line 95 of file RubberBand.h.

Referenced by te::qt::widgets::RubberBand::RubberBand(), and Selection().

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::AbstractTool(), te::qt::widgets::CoordTracking::CoordTracking(), te::qt::widgets::Measure::Measure(), te::qt::widgets::PolygonAcquire::PolygonAcquire(), and te::qt::widgets::ZoomKeyboard::ZoomKeyboard().

bool te::qt::widgets::Selection::m_keepPreviousSelection

private

Flag that indicates if the tool must keep the previous selection.

Definition at line 121 of file Selection.h.

std::list<te::map::AbstractLayerPtr> te::qt::widgets::Selection::m_layers

private

The layer list that will be selected.

Definition at line 119 of file Selection.h.

QPoint te::qt::widgets::RubberBand::m_origin

protectedinherited

Origin point on mouse pressed.

Definition at line 92 of file RubberBand.h.

QPen te::qt::widgets::RubberBand::m_pen

protectedinherited

The pen used to draw the rubber band shape.

Definition at line 94 of file RubberBand.h.

Referenced by te::qt::widgets::RubberBand::RubberBand(), and Selection().

QRectF te::qt::widgets::RubberBand::m_rect

protectedinherited

The boundary rectangle managed by the rubber band.

Definition at line 93 of file RubberBand.h.

bool te::qt::widgets::Selection::m_selectionByPointing

private

Flag that indicates if the selection is by pointing.

Definition at line 122 of file Selection.h.

bool te::qt::widgets::Selection::m_selectionStarted

private

Flag that indicates if selection operation was started.

Definition at line 120 of file Selection.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git/src/terralib/qt/widgets/tools/Selection.h
/home/castejon/castejon_files/develop/terralib5/git/src/terralib/qt/widgets/tools/Selection.cpp
