#include <Expression.h>

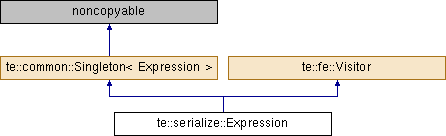

Inheritance diagram for te::serialize::Expression:

Public Types
typedef std::map< std::string, ExpressionReadFnctType >	ExpressionFnctIdxType

typedef boost::function < te::fe::Expression *(te::xml::Reader &)>	ExpressionReadFnctType

Public Member Functions
te::fe::Expression *	read (te::xml::Reader &reader) const

void	reg (const std::string &expName, const ExpressionReadFnctType &fnct)

void	write (const te::fe::Expression *exp, te::xml::Writer &writer)

	~Expression ()

Visitor Methods
All concrete visitors must implement these methods.
void	visit (const te::fe::BinaryOperator &visited)

void	visit (const te::fe::Function &visited)

void	visit (const te::fe::Literal &visited)

void	visit (const te::fe::PropertyName &visited)

void	visit (const te::fe::AbstractOp &visited)

void	visit (const te::fe::SpatialOp &visited)

void	visit (const te::fe::ComparisonOp &visited)

void	visit (const te::fe::LogicOp &visited)

void	visit (const te::fe::BBOXOp &visited)

void	visit (const te::fe::BinaryComparisonOp &visited)

void	visit (const te::fe::BinaryLogicOp &visited)

void	visit (const te::fe::BinarySpatialOp &visited)

void	visit (const te::fe::DistanceBuffer &visited)

void	visit (const te::fe::PropertyIsBetween &visited)

void	visit (const te::fe::PropertyIsLike &visited)

void	visit (const te::fe::PropertyIsNull &visited)

void	visit (const te::fe::UnaryLogicOp &visited)

void	visit (const te::fe::Expression &visited)

Static Public Member Functions
static Expression &	getInstance ()
	It returns a reference to the singleton instance. More...

Protected Member Functions
	Expression ()

Private Attributes
ExpressionFnctIdxType	m_fncts

te::xml::Writer *	m_writer

Friends
class	te::common::Singleton< Expression >

Detailed Description

Definition at line 53 of file Expression.h.

Member Typedef Documentation

typedef std::map<std::string, ExpressionReadFnctType> te::serialize::Expression::ExpressionFnctIdxType

Definition at line 60 of file Expression.h.

typedef boost::function<te::fe::Expression* (te::xml::Reader&)> te::serialize::Expression::ExpressionReadFnctType

Definition at line 59 of file Expression.h.

Constructor & Destructor Documentation

te::serialize::Expression::~Expression ( )

Definition at line 118 of file Expression.cpp.

te::serialize::Expression::Expression ( )

protected

Definition at line 122 of file Expression.cpp.

References BinaryOperatorReader(), LiteralReader(), m_fncts, PropertyNameReader(), te::fe::Globals::sm_add, te::fe::Globals::sm_div, te::fe::Globals::sm_mul, and te::fe::Globals::sm_sub.

Member Function Documentation

static Expression & te::common::Singleton< Expression >::getInstance ( )

staticinherited

It returns a reference to the singleton instance.

Returns: A reference to the singleton instance.

Referenced by BBOXReader(), BBOXWriter(), BetweenReader(), BetweenWriter(), BinaryComparsionOpReader(), BinaryComparsionOpWriter(), BinaryOperatorReader(), BinarySpatialOpReader(), BinarySpatialOpWriter(), DistanceBufferOpWriter(), DistanceBufferReader(), LikeReader(), LikeWriter(), NullReader(), NullWriter(), te::serialize::ReadGeometryPropertyHelper(), and te::serialize::WriteGeometryPropertyHelper().

te::fe::Expression * te::serialize::Expression::read ( te::xml::Reader & reader ) const

Definition at line 58 of file Expression.cpp.

References te::xml::Reader::getElementLocalName(), te::xml::Reader::getNodeType(), TR_SERIALIZATION, and te::xml::VALUE.

void te::serialize::Expression::reg	(	const std::string &	expName,
		const ExpressionReadFnctType &	fnct
	)

Definition at line 53 of file Expression.cpp.

References m_fncts.

void te::serialize::Expression::visit ( const te::fe::BinaryOperator & visited )

virtual

Implements te::fe::Visitor.

Definition at line 84 of file Expression.cpp.

References te::common::BaseVisitable< T, R >::accept(), te::fe::BinaryOperator::getFirst(), te::fe::BinaryOperator::getName(), and te::fe::BinaryOperator::getSecond().

void te::serialize::Expression::visit ( const te::fe::Function & visited )

virtual

Implements te::fe::Visitor.

Definition at line 102 of file Expression.cpp.

void te::serialize::Expression::visit ( const te::fe::Literal & visited )

virtual

Implements te::fe::Visitor.

Definition at line 107 of file Expression.cpp.

References te::fe::Literal::getValue().

void te::serialize::Expression::visit ( const te::fe::PropertyName & visited )

virtual

Implements te::fe::Visitor.

Definition at line 113 of file Expression.cpp.

References te::fe::PropertyName::getName().

void te::serialize::Expression::visit ( const te::fe::AbstractOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 78 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::SpatialOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 79 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::ComparisonOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 80 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::LogicOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 81 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::BBOXOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 82 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::BinaryComparisonOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 83 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::BinaryLogicOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 84 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::BinarySpatialOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 85 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::DistanceBuffer & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 86 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::PropertyIsBetween & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 87 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::PropertyIsLike & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 88 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::PropertyIsNull & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 89 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::UnaryLogicOp & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 90 of file Expression.h.

void te::serialize::Expression::visit ( const te::fe::Expression & visited )

inlinevirtual

Implements te::fe::Visitor.

Definition at line 91 of file Expression.h.

void te::serialize::Expression::write	(	const te::fe::Expression *	exp,
		te::xml::Writer &	writer
	)

Definition at line 73 of file Expression.cpp.

References te::common::BaseVisitable< T, R >::accept().

Referenced by BBOXWriter(), BetweenWriter(), BinaryComparsionOpWriter(), BinarySpatialOpWriter(), DistanceBufferOpWriter(), LikeWriter(), and NullWriter().

Friends And Related Function Documentation

friend class te::common::Singleton< Expression >

friend

Definition at line 55 of file Expression.h.

Member Data Documentation

ExpressionFnctIdxType te::serialize::Expression::m_fncts

private

Definition at line 103 of file Expression.h.

Referenced by Expression(), and reg().

te::xml::Writer* te::serialize::Expression::m_writer

private

Definition at line 104 of file Expression.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git/src/terralib/serialization/fe/Expression.h
/home/castejon/castejon_files/develop/terralib5/git/src/terralib/serialization/fe/Expression.cpp
