A LineSymbolizer is used to style a stroke along a linear geometry type, such as a string of line segments. More...

#include <LineSymbolizer.h>

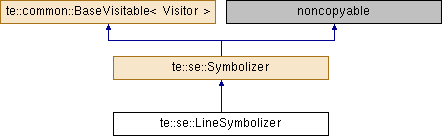

Inheritance diagram for te::se::LineSymbolizer:

Public Types
typedef R	ReturnType

typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const =0
	It call the visit method from the guest object. More...

Symbolizer *	clone () const
	It creates a new copy of this object. More...

Initializer Methods
Methods related to instantiation and destruction.
	LineSymbolizer ()
	It initializes a new LineSymbolizer. More...

	LineSymbolizer (const LineSymbolizer &rhs)
	Copy constructor. More...

	~LineSymbolizer ()
	Destructor. More...

Accessor methods
Methods used to get or set properties.
void	setGeometry (te::fe::PropertyName *geometry)
	The Geometry element of a LineSymbolizer defines the linear geometry to be used for styling. The Geometry element is optional and if it is absent then the all geometry properties of the feature type that is used in the containing FeatureType are used. Most frequently, though, feature types will have only a single geometry property. See OGC te::fe::PropertyName class for more information on attribute names. More...

const te::fe::PropertyName *	getGeometry () const

void	setStroke (Stroke *stroke)
	A Stroke specifies the appearance of a linear geometry. The Stroke element is optional inside of LineSymbolizer (and other Symbolizers), and its absence means that no stroke is to be rendered. More...

const Stroke *	getStroke () const

void	setPerpendicularOffset (ParameterValue *perpendicularOffset)
	PerpendicularOffset allows to draw lines in parallel to the original geometry. For complex line strings these parallel lines have to be constructed so that the distance between original geometry and drawn line stays equal. This construction can result in drawn lines that are actually smaller or longer than the original geometry. The distance is in uoms and is positive to the left-hand side of the line string. Negative numbers mean right. The default offset is 0. More...

const ParameterValue *	getPerpendicularOffset () const

const std::string &	getType () const
	It returns the symbolizer type. More...

Accessor methods
Methods used to get or set properties.
void	setName (const std::string &name)

const std::string &	getName () const

void	setDescription (Description *d)

const Description *	getDescription () const

void	setBaseSymbolizer (te::xl::SimpleLink *baseSymbolizer)

const te::xl::SimpleLink *	getBaseSymbolizer () const

void	setVersion (const std::string &version)

const std::string &	getVersion () const

void	setUom (const te::common::BaseUnitOfMeasure *uom)
	It sets the unit-of-measure. More...

const te::common::BaseUnitOfMeasure *	getUom () const

Private Attributes
te::fe::PropertyName *	m_geometry
	A Geometry gives reference to a (the) geometry property of a feature to be used for rendering. (Optional) More...

ParameterValue *	m_perpendicularOffset
	A PerpendicularOffset gives the perpendicular distance away from a line to draw a label. (Optional) More...

Stroke *	m_stroke
	A Stroke specifies the appearance of a linear geometry. (Optional) More...

Static Private Attributes
static const std::string	sm_type
	A static data member used in the implementation of getType method. More...

Detailed Description

A LineSymbolizer is used to style a stroke along a linear geometry type, such as a string of line segments.

See also: Symbolizer, Stroke, ParameterValue, te::fe::PropertyName, ImageOutline

Definition at line 51 of file LineSymbolizer.h.

Member Typedef Documentation

typedef R te::common::BaseVisitable< Visitor , R >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

typedef Visitor te::common::BaseVisitable< Visitor , R >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

te::se::LineSymbolizer::LineSymbolizer ( )

It initializes a new LineSymbolizer.

Definition at line 34 of file LineSymbolizer.cpp.

te::se::LineSymbolizer::LineSymbolizer ( const LineSymbolizer & rhs )

Copy constructor.

Parameters

rhs	The other line symbolizer.

Definition at line 42 of file LineSymbolizer.cpp.

References te::se::ParameterValue::clone(), te::se::Stroke::clone(), te::fe::PropertyName::getName(), m_geometry, m_perpendicularOffset, and m_stroke.

te::se::LineSymbolizer::~LineSymbolizer ( )

Destructor.

Definition at line 58 of file LineSymbolizer.cpp.

Member Function Documentation

virtual ReturnType te::common::BaseVisitable< Visitor , R >::accept ( VisitorType & guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest The guest or visitor.

Returns: Any valid value define by the template type R.

te::se::Symbolizer * te::se::LineSymbolizer::clone ( ) const

virtual

It creates a new copy of this object.

Implements te::se::Symbolizer.

Definition at line 103 of file LineSymbolizer.cpp.

Referenced by te::qt::widgets::LineSymbolizerWidget::setSymbolizer().

const te::xl::SimpleLink * te::se::Symbolizer::getBaseSymbolizer ( ) const

inherited

Definition at line 94 of file Symbolizer.cpp.

Referenced by te::se::serialize::WriteSymbolizerHelper().

const te::se::Description * te::se::Symbolizer::getDescription ( ) const

inherited

Definition at line 83 of file Symbolizer.cpp.

Referenced by te::se::serialize::WriteSymbolizerHelper().

const te::fe::PropertyName * te::se::LineSymbolizer::getGeometry ( ) const

Definition at line 71 of file LineSymbolizer.cpp.

Referenced by LineSymbolizerWriter().

const std::string & te::se::Symbolizer::getName ( ) const

inherited

Definition at line 72 of file Symbolizer.cpp.

Referenced by te::layout::LegendChildModel::drawLegend(), te::layout::LegendModel::drawStyleLegend(), and te::se::serialize::WriteSymbolizerHelper().

const te::se::ParameterValue * te::se::LineSymbolizer::getPerpendicularOffset ( ) const

Definition at line 93 of file LineSymbolizer.cpp.

Referenced by LineSymbolizerWriter().

const te::se::Stroke * te::se::LineSymbolizer::getStroke ( ) const

Definition at line 82 of file LineSymbolizer.cpp.

Referenced by LineSymbolizerWriter(), te::se::SymbolizerColorFinder::visit(), te::map::CanvasConfigurer::visit(), and te::qt::widgets::ChartConfigurer::visit().

const std::string & te::se::LineSymbolizer::getType ( ) const

virtual

It returns the symbolizer type.

Returns: The symbolizer type.

Implements te::se::Symbolizer.

Definition at line 98 of file LineSymbolizer.cpp.

const te::common::BaseUnitOfMeasure * te::se::Symbolizer::getUom ( ) const

inherited

Definition at line 114 of file Symbolizer.cpp.

const std::string & te::se::Symbolizer::getVersion ( ) const

inherited

Definition at line 104 of file Symbolizer.cpp.

Referenced by te::se::serialize::WriteSymbolizerHelper().

void te::se::Symbolizer::setBaseSymbolizer ( te::xl::SimpleLink * baseSymbolizer )

inherited

Definition at line 88 of file Symbolizer.cpp.

void te::se::Symbolizer::setDescription ( Description * d )

inherited

Definition at line 77 of file Symbolizer.cpp.

Referenced by te::se::serialize::ReadSymbolizerHelper().

void te::se::LineSymbolizer::setGeometry ( te::fe::PropertyName * geometry )

The Geometry element of a LineSymbolizer defines the linear geometry to be used for styling. The Geometry element is optional and if it is absent then the all geometry properties of the feature type that is used in the containing FeatureType are used. Most frequently, though, feature types will have only a single geometry property. See OGC te::fe::PropertyName class for more information on attribute names.

Note: Geometry types other than inherently linear types can also be used. If a point geometry is used, it should be interpreted as a line of "epsilon" (arbitrarily small) length with a horizontal orientation centered on the point, and should be rendered with two end caps. If a polygon is used (or other "area" type), then its closed outline is used as the line string (with no end caps). If a raster geometry is used, its coverage-area outline is used for the line, rendered with no end caps.

Definition at line 65 of file LineSymbolizer.cpp.

void te::se::Symbolizer::setName ( const std::string & name )

inherited

Definition at line 67 of file Symbolizer.cpp.

Referenced by te::se::serialize::ReadSymbolizerHelper().

void te::se::LineSymbolizer::setPerpendicularOffset ( ParameterValue * perpendicularOffset )

PerpendicularOffset allows to draw lines in parallel to the original geometry. For complex line strings these parallel lines have to be constructed so that the distance between original geometry and drawn line stays equal. This construction can result in drawn lines that are actually smaller or longer than the original geometry. The distance is in uoms and is positive to the left-hand side of the line string. Negative numbers mean right. The default offset is 0.

Definition at line 87 of file LineSymbolizer.cpp.

void te::se::LineSymbolizer::setStroke ( Stroke * stroke )

A Stroke specifies the appearance of a linear geometry. The Stroke element is optional inside of LineSymbolizer (and other Symbolizers), and its absence means that no stroke is to be rendered.

Definition at line 76 of file LineSymbolizer.cpp.

Referenced by te::se::CreateLineSymbolizer(), te::se::CreateSymbolizer(), te::qt::widgets::LineSymbolizerWidget::LineSymbolizerWidget(), and te::qt::widgets::LineSymbolizerProperty::setSymbolizer().

void te::se::Symbolizer::setUom ( const te::common::BaseUnitOfMeasure * uom )

inherited

It sets the unit-of-measure.

All Symbolizers include an optional gml:uom-attribute as used by GML (this is set inside the abstract SymbolizerType and therefore inherited by all Symbolizers). This applies to all elements included inside a Symbolizer such as stroke-width, size, font-size, Gap, InitialGap, Displacement and PerpendicularOffset. If no uom is set inside of Symbolizer, all units are measured in pixel, the behaviour used by SLD 1.0.0. The following uom definitions are recommended to be used:

Definition at line 109 of file Symbolizer.cpp.

void te::se::Symbolizer::setVersion ( const std::string & version )

inherited

Definition at line 99 of file Symbolizer.cpp.

Referenced by te::se::serialize::ReadSymbolizerHelper().

Member Data Documentation

te::fe::PropertyName* te::se::LineSymbolizer::m_geometry

private

A Geometry gives reference to a (the) geometry property of a feature to be used for rendering. (Optional)

Definition at line 144 of file LineSymbolizer.h.

Referenced by LineSymbolizer().

ParameterValue* te::se::LineSymbolizer::m_perpendicularOffset

private

A PerpendicularOffset gives the perpendicular distance away from a line to draw a label. (Optional)

Definition at line 146 of file LineSymbolizer.h.

Referenced by LineSymbolizer().

Stroke* te::se::LineSymbolizer::m_stroke

private

A Stroke specifies the appearance of a linear geometry. (Optional)

Definition at line 145 of file LineSymbolizer.h.

Referenced by LineSymbolizer().

const std::string te::se::LineSymbolizer::sm_type

staticprivate

A static data member used in the implementation of getType method.

Definition at line 148 of file LineSymbolizer.h.

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/se/LineSymbolizer.h
C:/TL5_2015_release/terralib5/src/terralib/se/LineSymbolizer.cpp
