te::qt::widgets::Info Class Reference

This class implements a concrete tool to get informations about a specified feature using pointing operation. More...

#include <Info.h>

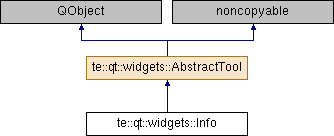

Inheritance diagram for te::qt::widgets::Info:

Public Slots
void	setLayers (const std::list< te::map::AbstractLayerPtr > &layers)

Public Member Functions
virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...
Initializer Methods
Methods related to instantiation and destruction.
	Info (MapDisplay *display, const QCursor &cursor, const std::list< te::map::AbstractLayerPtr > &layers, QObject *parent=0)
	It constructs a info tool associated with the given map display. More...
	~Info ()
	Destructor. More...
AbstractTool Methods
Methods related with tool behavior.
bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...
AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject *watched, QEvent *e)
	Filters events if this object has been installed as an event filter for the watched object. More...
virtual bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...
virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...
virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...
MapDisplay *	m_display
	The map display associated with the tool. More...

Private Member Functions
void	drawGeometry (te::gm::Geometry *g)
void	getGeometryInfo (QTreeWidgetItem *layerItem, te::da::DataSet *dataset, const std::string &geomPropertyName, const te::gm::Envelope &e, int srid, bool needRemap)
void	getInfo (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &e)
void	getRasterInfo (QTreeWidgetItem *layerItem, te::rst::Raster *raster, const te::gm::Envelope &e, int srid, bool needRemap)

Private Attributes
QTreeWidget *	m_infoWidget
	Widget used to show the informations. More...
std::list < te::map::AbstractLayerPtr >	m_layers
	The layer list that will be queried. More...

Detailed Description

This class implements a concrete tool to get informations about a specified feature using pointing operation.

Definition at line 74 of file Info.h.

Constructor & Destructor Documentation

te::qt::widgets::Info::Info	(	MapDisplay *	display,
		const QCursor &	cursor,
		const std::list< te::map::AbstractLayerPtr > &	layers,
		QObject *	parent = 0
	)

It constructs a info tool associated with the given map display.

Parameters

display	The map display associated with the tool.
cursor	The tool cursor.
layers	The layer list that will be queried.
parent	The tool's parent.

Note

The tool will NOT take the ownership of the given pointers.

Definition at line 62 of file Info.cpp.

References m_infoWidget, and te::qt::widgets::AbstractTool::setCursor().

te::qt::widgets::Info::~Info

(

)

Destructor.

Definition at line 81 of file Info.cpp.

Member Function Documentation

void te::qt::widgets::Info::drawGeometry ( te::gm::Geometry *  g )

private

Definition at line 333 of file Info.cpp.

References te::se::CreateFill(), te::se::CreateMark(), te::se::CreateStroke(), te::qt::widgets::Canvas::draw(), te::common::Free(), te::gm::Geometry::getGeomTypeId(), te::common::Singleton< MarkRendererManager >::getInstance(), te::gm::LineStringMType, te::gm::LineStringType, te::gm::LineStringZMType, te::gm::LineStringZType, te::gm::Envelope::m_llx, te::gm::Envelope::m_lly, te::gm::Envelope::m_urx, te::gm::Envelope::m_ury, te::gm::MultiLineStringMType, te::gm::MultiLineStringType, te::gm::MultiLineStringZMType, te::gm::MultiLineStringZType, te::gm::MultiPointMType, te::gm::MultiPointType, te::gm::MultiPointZMType, te::gm::MultiPointZType, te::gm::MultiPolygonMType, te::gm::MultiPolygonType, te::gm::MultiPolygonZMType, te::gm::MultiPolygonZType, te::gm::PointMType, te::gm::PointType, te::gm::PointZMType, te::gm::PointZType, te::gm::PolygonMType, te::gm::PolygonType, te::gm::PolygonZMType, te::gm::PolygonZType, te::qt::widgets::Canvas::setLineColor(), te::qt::widgets::Canvas::setLineWidth(), te::qt::widgets::Canvas::setPointColor(), te::qt::widgets::Canvas::setPointPattern(), te::qt::widgets::Canvas::setPolygonContourColor(), te::qt::widgets::Canvas::setPolygonContourWidth(), te::qt::widgets::Canvas::setPolygonFillColor(), te::qt::widgets::Canvas::setRenderHint(), te::qt::widgets::Canvas::setWindow(), and TE_TRANSPARENT.

bool te::qt::widgets::AbstractTool::eventFilter ( QObject *  watched, QEvent *  e  )

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note

In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

Definition at line 50 of file AbstractTool.cpp.

Referenced by te::qt::widgets::ZoomKeyboard::eventFilter(), and te::qt::widgets::ZoomWheel::eventFilter().

void te::qt::widgets::Info::getGeometryInfo ( QTreeWidgetItem *  layerItem, te::da::DataSet *  dataset, const std::string &  geomPropertyName, const te::gm::Envelope &  e, int  srid, bool  needRemap  )

private

Definition at line 228 of file Info.cpp.

References te::qt::widgets::Convert2Qt(), te::dt::GEOMETRY_TYPE, te::da::DataSet::getAsString(), te::gm::Envelope::getCenter(), te::da::GetFirstPropertyPos(), te::da::DataSet::getGeometry(), te::gm::GetGeomFromEnvelope(), te::da::DataSet::getNumProperties(), te::da::DataSet::getPropertyCharEncoding(), te::da::DataSet::getPropertyDataType(), te::da::DataSet::getPropertyName(), te::da::GetPropertyPos(), te::da::DataSet::getString(), te::da::DataSet::isNull(), te::da::DataSet::moveNext(), te::dt::RASTER_TYPE, te::dt::STRING_TYPE, te::gm::Coord2D::x, and te::gm::Coord2D::y.

void te::qt::widgets::Info::getInfo ( const te::map::AbstractLayerPtr &  layer, const te::gm::Envelope &  e  )

private

Definition at line 146 of file Info.cpp.

References te::da::GetFirstGeomProperty(), te::da::GetFirstRasterProperty(), te::dt::Property::getName(), te::gm::INTERSECTS, TE_UNKNOWN_SRS, te::gm::Envelope::transform(), te::map::VISIBLE, and te::gm::Envelope::within().

void te::qt::widgets::Info::getRasterInfo ( QTreeWidgetItem *  layerItem, te::rst::Raster *  raster, const te::gm::Envelope &  e, int  srid, bool  needRemap  )

private

Definition at line 291 of file Info.cpp.

References te::rst::Grid::geoToGrid(), te::gm::Envelope::getCenter(), te::rst::Raster::getGrid(), te::rst::Raster::getNumberOfBands(), te::rst::Raster::getNumberOfColumns(), te::rst::Raster::getNumberOfRows(), te::rst::Raster::getValue(), te::rst::Round(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent *  e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note

The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, and te::qt::widgets::PolygonAcquire.

Definition at line 93 of file AbstractTool.cpp.

bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent *  e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, and te::qt::widgets::ZoomArea.

Definition at line 83 of file AbstractTool.cpp.

bool te::qt::widgets::AbstractTool::mousePressEvent ( QMouseEvent *  e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, and te::qt::widgets::ZoomLeftAndRightClick.

Definition at line 78 of file AbstractTool.cpp.

bool te::qt::widgets::Info::mouseReleaseEvent ( QMouseEvent *  e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 91 of file Info.cpp.

void te::qt::widgets::AbstractTool::setCursor ( const QCursor &  cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor

The cursor that will be used during the tool operation.

Definition at line 98 of file AbstractTool.cpp.

Referenced by te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::qt::widgets::ExtentAcquire::ExtentAcquire(), Info(), te::qt::widgets::Measure::Measure(), te::qt::widgets::Pan::Pan(), te::qt::widgets::PanExtent::PanExtent(), te::qt::widgets::PointPicker::PointPicker(), te::qt::widgets::Selection::Selection(), te::qt::widgets::ZoomArea::ZoomArea(), and te::qt::widgets::ZoomClick::ZoomClick().

void te::qt::widgets::Info::setLayers ( const std::list< te::map::AbstractLayerPtr > &  layers )

slot

Definition at line 141 of file Info.cpp.

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::AbstractTool(), te::qt::widgets::CoordTracking::CoordTracking(), te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::qt::widgets::Measure::Measure(), te::edit::MoveGeometryTool::MoveGeometryTool(), te::qt::widgets::PolygonAcquire::PolygonAcquire(), te::edit::VertexTool::VertexTool(), and te::qt::widgets::ZoomKeyboard::ZoomKeyboard().

QTreeWidget* te::qt::widgets::Info::m_infoWidget

private

Widget used to show the informations.

Definition at line 128 of file Info.h.

Referenced by Info().

std::list<te::map::AbstractLayerPtr> te::qt::widgets::Info::m_layers

private

The layer list that will be queried.

Definition at line 127 of file Info.h.

---

The documentation for this class was generated from the following files:

• C:/TL5_2015_release/terralib5/src/terralib/qt/widgets/tools/Info.h
• C:/TL5_2015_release/terralib5/src/terralib/qt/widgets/tools/Info.cpp
