Properties tree for any item, MVC component, using Qt for presentation and editing. More...

#include <PropertiesOutside.h>

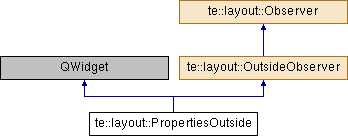

Inheritance diagram for te::layout::PropertiesOutside:

Public Member Functions
virtual OutsideController *	getController ()
	Returns the "Controller" part of the MVC. More...

virtual Observable *	getModel ()
	Returns the "Model" part of the MVC. More...

virtual te::gm::Coord2D	getPosition ()
	Method that returns the position llx, lly Reimplement this function in a ItemObserver subclass to provide the item's getPosition implementation. More...

virtual Properties *	getProperties () const
	Reimplemented from Observer. More...

virtual void	itemsSelected (QList< QGraphicsItem * > graphicsItems, QList< QGraphicsItem * > allItems)

	PropertiesOutside (OutsideController controller, Observable o, PropertyBrowser *propertyBrowser=0)

virtual void	refresh ()
	Updated model state. More...

virtual void	refreshOutside ()

virtual void	setPosition (const double &x, const double &y)
	Change coordinate llx,lly of the MVC widget. Reimplement this function in a ItemController subclass to provide the controller's create implementation. More...

virtual void	updateObserver (ContextItem context)
	Reimplemented from Observer. More...

virtual	~PropertiesOutside ()

Protected Slots
virtual void	onClear (std::vector< std::string > names)

Protected Member Functions
virtual void	changeMapVisitable (Property property)

virtual void	closeEvent (QCloseEvent *event)

virtual void	createLayout ()

virtual MapModel *	getMapModel (std::string nameMap)

virtual bool	sendPropertyToSelectedItem (Property property)

virtual bool	sendPropertyToSelectedItems (Property property)

Protected Attributes
QList< QGraphicsItem * >	m_allItems

QToolButton *	m_configurePropertyEditor

OutsideController *	m_controller
	"Controller" part of MVC widget. More...

QList< QGraphicsItem * >	m_graphicsItems

PropertyBrowser *	m_layoutPropertyBrowser

Observable *	m_model
	"Model" part of MVC widget. More...

QLabel *	m_nameLabel

QLineEdit *	m_propertyFilterEdit

PropertiesUtils *	m_propUtils

SharedProperties *	m_sharedProps

bool	m_updatingValues

Private Slots
void	onChangePropertyValue (Property property)

Detailed Description

Properties tree for any item, MVC component, using Qt for presentation and editing.

See also: te::layout::OutsideObserver

Definition at line 71 of file PropertiesOutside.h.

Constructor & Destructor Documentation

te::layout::PropertiesOutside::PropertiesOutside	(	OutsideController *	controller,
		Observable *	o,
		PropertyBrowser *	propertyBrowser = `0`
	)

Definition at line 57 of file PropertiesOutside.cpp.

References createLayout(), te::layout::Observable::getBox(), te::gm::Envelope::getHeight(), te::gm::Envelope::getWidth(), m_layoutPropertyBrowser, te::layout::OutsideObserver::m_model, m_propUtils, m_sharedProps, and onChangePropertyValue().

te::layout::PropertiesOutside::~PropertiesOutside ( )

virtual

Definition at line 85 of file PropertiesOutside.cpp.

Member Function Documentation

void te::layout::PropertiesOutside::changeMapVisitable ( Property property )

protectedvirtual

Definition at line 345 of file PropertiesOutside.cpp.

References te::common::Singleton< Context >::getInstance(), te::common::Singleton< T >::getInstance(), te::layout::Context::getItemUtils(), te::layout::ItemUtils::getMapItem(), te::layout::ItemObserver::getModel(), and te::layout::Property::getName().

void te::layout::PropertiesOutside::closeEvent ( QCloseEvent * event )

protectedvirtual

Definition at line 340 of file PropertiesOutside.cpp.

void te::layout::PropertiesOutside::createLayout ( )

protectedvirtual

Definition at line 106 of file PropertiesOutside.cpp.

Referenced by PropertiesOutside().

te::layout::OutsideController * te::layout::OutsideObserver::getController ( )

virtualinherited

Returns the "Controller" part of the MVC.

Returns: controller

Definition at line 59 of file OutsideObserver.cpp.

te::layout::MapModel * te::layout::PropertiesOutside::getMapModel ( std::string nameMap )

protectedvirtual

Definition at line 379 of file PropertiesOutside.cpp.

References te::common::Singleton< Context >::getInstance(), te::layout::Context::getItemUtils(), te::layout::ItemUtils::getMapItem(), and te::layout::ItemObserver::getModel().

te::layout::Observable * te::layout::OutsideObserver::getModel ( )

virtualinherited

Returns the "Model" part of the MVC.

Returns: model

Definition at line 64 of file OutsideObserver.cpp.

Referenced by te::layout::DialogPropertiesBrowser::onShowGridSettingsDlg().

te::gm::Coord2D te::layout::PropertiesOutside::getPosition ( )

virtual

Method that returns the position llx, lly Reimplement this function in a ItemObserver subclass to provide the item's getPosition implementation.

Returns: coordinate

Implements te::layout::OutsideObserver.

Definition at line 161 of file PropertiesOutside.cpp.

References te::gm::Coord2D::x, and te::gm::Coord2D::y.

te::layout::Properties * te::layout::OutsideObserver::getProperties ( ) const

virtualinherited

Reimplemented from Observer.

Definition at line 54 of file OutsideObserver.cpp.

References te::layout::Properties::getProperties().

void te::layout::PropertiesOutside::itemsSelected	(	QList< QGraphicsItem * >	graphicsItems,
		QList< QGraphicsItem * >	allItems
	)

virtual

Definition at line 174 of file PropertiesOutside.cpp.

References te::layout::Properties::getObjectName(), te::layout::Properties::getProperties(), te::layout::Property::isMenu(), te::layout::Property::isVisible(), and te::layout::Properties::setHasWindows().

void te::layout::PropertiesOutside::onChangePropertyValue ( Property property )

privateslot

Definition at line 209 of file PropertiesOutside.cpp.

References te::layout::EnumDataType::getDataTypeNone(), te::layout::Enums::getEnumDataType(), te::common::Singleton< Enums >::getInstance(), te::common::Singleton< Context >::getInstance(), te::layout::Property::getParentItemHashCode(), te::layout::Context::getScene(), and te::layout::Property::getType().

Referenced by PropertiesOutside().

void te::layout::PropertiesOutside::onClear ( std::vector< std::string > names )

protectedvirtualslot

Definition at line 406 of file PropertiesOutside.cpp.

void te::layout::OutsideObserver::refresh ( )

virtualinherited

Updated model state.

Parameters

true	if refresh the current position, false otherwise

Definition at line 48 of file OutsideObserver.cpp.

References te::gm::Coord2D::x, and te::gm::Coord2D::y.

void te::layout::PropertiesOutside::refreshOutside ( )

virtual

Definition at line 401 of file PropertiesOutside.cpp.

bool te::layout::PropertiesOutside::sendPropertyToSelectedItem ( Property property )

protectedvirtual

Definition at line 231 of file PropertiesOutside.cpp.

References te::layout::Properties::addProperty(), te::layout::Scene::addUndoStack(), te::common::Singleton< Context >::getInstance(), te::layout::ItemObserver::getModel(), te::layout::Properties::getObjectName(), te::layout::Observable::getProperties(), te::layout::Context::getScene(), te::layout::Properties::getTypeObj(), te::layout::ItemObserver::redraw(), te::layout::Properties::setObjectName(), te::layout::Properties::setTypeObj(), and te::layout::Observable::updateProperties().

bool te::layout::PropertiesOutside::sendPropertyToSelectedItems ( Property property )

protectedvirtual

Definition at line 286 of file PropertiesOutside.cpp.

References te::layout::Properties::addProperty(), te::layout::Scene::addUndoStack(), te::common::Singleton< Context >::getInstance(), te::layout::ItemObserver::getModel(), te::layout::Properties::getObjectName(), te::layout::Observable::getProperties(), te::layout::Context::getScene(), te::layout::Properties::getTypeObj(), te::layout::ItemObserver::redraw(), te::layout::Properties::setObjectName(), te::layout::Properties::setTypeObj(), and te::layout::Observable::updateProperties().

void te::layout::PropertiesOutside::setPosition	(	const double &	x,
		const double &	y
	)

virtual

Change coordinate llx,lly of the MVC widget. Reimplement this function in a ItemController subclass to provide the controller's create implementation.

Parameters

x	llx
y	lly

Implements te::layout::OutsideObserver.

Definition at line 155 of file PropertiesOutside.cpp.

void te::layout::PropertiesOutside::updateObserver ( ContextItem context )

virtual

Reimplemented from Observer.

Implements te::layout::OutsideObserver.

Definition at line 146 of file PropertiesOutside.cpp.

References te::layout::ContextItem::isShow().

Member Data Documentation

QList<QGraphicsItem*> te::layout::PropertiesOutside::m_allItems

protected

Definition at line 118 of file PropertiesOutside.h.

QToolButton* te::layout::PropertiesOutside::m_configurePropertyEditor

protected

Definition at line 121 of file PropertiesOutside.h.

OutsideController* te::layout::OutsideObserver::m_controller

protectedinherited

"Controller" part of MVC widget.

Definition at line 119 of file OutsideObserver.h.

QList<QGraphicsItem*> te::layout::PropertiesOutside::m_graphicsItems

protected

Definition at line 117 of file PropertiesOutside.h.

PropertyBrowser* te::layout::PropertiesOutside::m_layoutPropertyBrowser

protected

Definition at line 115 of file PropertiesOutside.h.

Referenced by PropertiesOutside().

Observable* te::layout::OutsideObserver::m_model

protectedinherited

"Model" part of MVC widget.

Definition at line 120 of file OutsideObserver.h.

Referenced by te::layout::ObjectInspectorOutside::ObjectInspectorOutside(), te::layout::OutsideObserver::OutsideObserver(), and PropertiesOutside().

QLabel* te::layout::PropertiesOutside::m_nameLabel

protected

Definition at line 119 of file PropertiesOutside.h.

QLineEdit* te::layout::PropertiesOutside::m_propertyFilterEdit

protected

Definition at line 120 of file PropertiesOutside.h.

PropertiesUtils* te::layout::PropertiesOutside::m_propUtils

protected

Definition at line 124 of file PropertiesOutside.h.

Referenced by PropertiesOutside().

SharedProperties* te::layout::PropertiesOutside::m_sharedProps

protected

Definition at line 123 of file PropertiesOutside.h.

Referenced by PropertiesOutside().

bool te::layout::PropertiesOutside::m_updatingValues

protected

Definition at line 122 of file PropertiesOutside.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/layout/qt/outside/PropertiesOutside.h
/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/layout/qt/outside/PropertiesOutside.cpp
