This is the abstract factory for Rasters. More...

#include <RasterFactory.h>

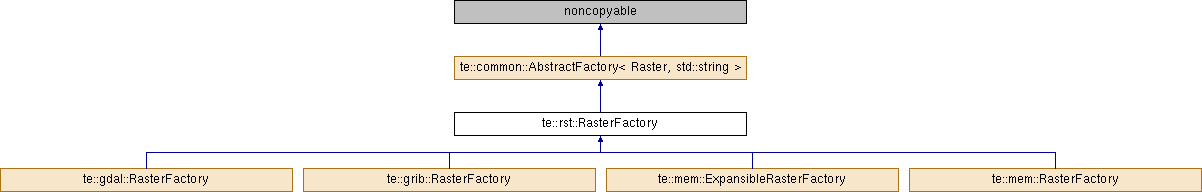

Inheritance diagram for te::rst::RasterFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< Raster, std::string, std::less< std::string > >, std::string, std::less< std::string > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
virtual std::map< std::string, std::string >	getCapabilities () const =0
	It returns a map<string, string> containing all supported formats. More...

virtual void	getCreationalParameters (std::vector< std::pair< std::string, std::string > > &params) const =0
	It returns the list of parameters accepted as raster info. More...

const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...

virtual const std::string &	getType () const =0
	Returns the type (name) of this factory. More...

virtual	~RasterFactory ()
	Destructor. More...

Static Public Member Functions
static const factory_type *	find (const std::string &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static Raster *	make ()
	It creates and returns an empty raster with default raster driver. More...

static Raster *	make (const std::string &rType)
	It creates an empty raster with the proper driver. More...

static Raster *	make (Grid g, const std::vector< BandProperty > bands, const std::map< std::string, std::string > &rinfo, void h=0, void(deleter)(void *)=0)
	It creates a raster with the given parameters using the default raster driver. More...

static Raster *	make (const std::string &rType, Grid g, const std::vector< BandProperty > bands, const std::map< std::string, std::string > &rinfo, void h=0, void(deleter)(void *)=0)
	It creates a raster with the given parameters using a proper driver. More...

static Raster *	make (const std::map< std::string, std::string > &rinfo, void h=0, void(deleter)(void *)=0)
	It creates a raster with the given parameters using the default driver. More...

static Raster *	make (const std::string &rType, const std::map< std::string, std::string > &rinfo, void h, void(deleter)(void *)=0)
	It creates a raster with the given parameters using a proper driver. More...

static Raster *	open (const std::map< std::string, std::string > &rinfo, te::common::AccessPolicy p=te::common::RAccess)
	It opens a raster with the given parameters and default raster driver. More...

static Raster *	open (const std::string &rType, const std::map< std::string, std::string > &rinfo, te::common::AccessPolicy p=te::common::RAccess)
	It creates a raster with the given parameters. More...

static Raster *	open (const std::string &key, const std::string &value, te::common::AccessPolicy p=te::common::RAccess)
	It creates a raster with the given parameters and default raster driver. More...

static Raster *	open (const std::string &rType, const std::string &key, const std::string &value, te::common::AccessPolicy p=te::common::RAccess)
	It creates a raster with the given parameters. More...

Protected Member Functions
virtual Raster *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...

virtual Raster *	create (Grid g, const std::vector< BandProperty > bands, const std::map< std::string, std::string > &rinfo, void h=0, void(deleter)(void *)=0)=0
	This method must be implemented by subclasses (raster drivers). More...

virtual Raster *	iOpen (const std::map< std::string, std::string > &rinfo, te::common::AccessPolicy p=te::common::RAccess)
	This method may be re-implemented by subclasses in order to have a finner control for the raster object instantiation. More...

	RasterFactory (const std::string &factoryKey)
	Constructor. More...

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

This is the abstract factory for Rasters.

See also: Raster

Definition at line 50 of file RasterFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<Raster , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

virtual te::rst::RasterFactory::~RasterFactory ( )

inlinevirtual

Destructor.

Reimplemented in te::gdal::RasterFactory, te::grib::RasterFactory, and te::mem::RasterFactory.

Definition at line 193 of file RasterFactory.h.

te::rst::RasterFactory::RasterFactory ( const std::string & factoryKey )

protected

Constructor.

Parameters

factorKey The key that identifies the factory.

Member Function Documentation

virtual Raster * te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns: It returns an object created by the concrete factory.

Implemented in te::mem::ExpansibleRasterFactory, te::gdal::RasterFactory, te::grib::RasterFactory, and te::mem::RasterFactory.

virtual Raster* te::rst::RasterFactory::create	(	Grid *	g,
		const std::vector< BandProperty * >	bands,
		const std::map< std::string, std::string > &	rinfo,
		void *	h = `0`,
		void()(void )	deleter = `0`
	)

protectedpure virtual

This method must be implemented by subclasses (raster drivers).

Parameters

g	The raster grid. May be a NULL parameter. Implementations must take its ownership.
bands	A vector of band properties, one for each band. Implementations must take ownership of the pointers in this vector.
rinfo	The necessary information to create the raster.
h	It may be any specific value for a given driver. May be a NULL parameter.
deleter	A pointer to a deleter function used to free the memory pointed by h. May be a NULL parameter. Implementations must use this method when it doesn't use 'h' anymore.

Returns: The new raster.

Note: The caller will take the ownership of the returned pointer.

Implemented in te::mem::ExpansibleRasterFactory, te::gdal::RasterFactory, te::grib::RasterFactory, and te::mem::RasterFactory.

static const factory_type* te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::find ( const std::string & factoryKey )

staticinherited

virtual std::map<std::string, std::string> te::rst::RasterFactory::getCapabilities ( ) const

pure virtual

It returns a map<string, string> containing all supported formats.

Implemented in te::gdal::RasterFactory, te::grib::RasterFactory, te::mem::ExpansibleRasterFactory, and te::mem::RasterFactory.

virtual void te::rst::RasterFactory::getCreationalParameters ( std::vector< std::pair< std::string, std::string > > & params ) const

pure virtual

It returns the list of parameters accepted as raster info.

Implemented in te::mem::ExpansibleRasterFactory, te::gdal::RasterFactory, te::grib::RasterFactory, and te::mem::RasterFactory.

static dictionary_type& te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

const std::string & te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

virtual const std::string& te::rst::RasterFactory::getType ( ) const

pure virtual

Returns the type (name) of this factory.

Implemented in te::mem::ExpansibleRasterFactory, te::gdal::RasterFactory, te::grib::RasterFactory, and te::mem::RasterFactory.

virtual Raster* te::rst::RasterFactory::iOpen	(	const std::map< std::string, std::string > &	rinfo,
		te::common::AccessPolicy	p = `te::common::RAccess`
	)

protectedvirtual

This method may be re-implemented by subclasses in order to have a finner control for the raster object instantiation.

Parameters

rinfo	The necessary information to open the raster.
p	The access policy.

Returns: A raster.

Note: The caller will take the ownership of the returned pointer.

static Raster* te::rst::RasterFactory::make ( )

static

It creates and returns an empty raster with default raster driver.

Returns: An empty raster.

Note: The caller will take the ownership of the returned pointer.

Referenced by te::rp::CreateRasterFileFromMatrix().

static Raster* te::rst::RasterFactory::make ( const std::string & rType )

static

It creates an empty raster with the proper driver.

Parameters

rType The name of the specific driver to be used to create the raster.

Returns: An empty raster.

Note: The caller will take the ownership of the returned pointer.

static Raster* te::rst::RasterFactory::make	(	Grid *	g,
		const std::vector< BandProperty * >	bands,
		const std::map< std::string, std::string > &	rinfo,
		void *	h = `0`,
		void()(void )	deleter = `0`
	)

static

It creates a raster with the given parameters using the default raster driver.

Parameters

g	The raster grid. The factory will take its ownership.
bands	A vector of band properties with one property for each band. The factory will take the ownership of all properties.
rinfo	The necessary information to create the raster.
h	It may be any specific value for a given driver.
deleter	A pointer to a deleter function used to free the memory pointed by h.

Returns: A new raster.

Note: The caller will take the ownership of the returned pointer.; If you inform a deleter when the created raster is destroyed it will call it for the informed h pointer.

static Raster* te::rst::RasterFactory::make	(	const std::string &	rType,
		Grid *	g,
		const std::vector< BandProperty * >	bands,
		const std::map< std::string, std::string > &	rinfo,
		void *	h = `0`,
		void()(void )	deleter = `0`
	)

static

It creates a raster with the given parameters using a proper driver.

Parameters

rType	The name of the specific driver to create the raster.
g	The raster grid. The factory will take its ownership.
bands	A vector of band properties, one property for each band. The factory will take the ownership of all properties.
rinfo	The necessary information to create the raster.
h	It may be any specific value for a given driver.
deleter	A pointer to a deleter function used to free the memory pointed by h.

Returns: A new raster.

Note: The caller will take the ownership of the returned pointer.; If you inform a deleter when the created raster is destroyed it will call it for the informed h pointer.

static Raster* te::rst::RasterFactory::make	(	const std::map< std::string, std::string > &	rinfo,
		void *	h = `0`,
		void()(void )	deleter = `0`
	)

static

It creates a raster with the given parameters using the default driver.

Parameters

rinfo	The necessary information to create the raster.
h	It may be any specific value for a given driver.
deleter	A pointer to a deleter function used to free the memory pointed by h.

Returns: A new raster.

Note: The caller will take the ownership of the returned pointer.; If you inform a deleter when the created raster is destroyed it will call it for the informed h pointer.

static Raster* te::rst::RasterFactory::make	(	const std::string &	rType,
		const std::map< std::string, std::string > &	rinfo,
		void *	h,
		void()(void )	deleter = `0`
	)

static

It creates a raster with the given parameters using a proper driver.

Parameters

rType	The name of the specific driver to create the raster.
rinfo	The necessary information to create the raster.
h	It may be any specific value for a given driver.
deleter	A pointer to a deleter function used to free the memory pointed by h.

Returns: A new raster.

Note: The caller will take the ownership of the returned pointer.; If you inform a deleter when the created raster is destroyed it will call it for the informed h pointer.

static Raster* te::rst::RasterFactory::open	(	const std::map< std::string, std::string > &	rinfo,
		te::common::AccessPolicy	p = `te::common::RAccess`
	)

static

It opens a raster with the given parameters and default raster driver.

Parameters

rinfo	The necessary information to open the raster.
p	The access policy.

Returns: The opened raster.

Note: The caller will take the ownership of the returned pointer.

static Raster* te::rst::RasterFactory::open	(	const std::string &	rType,
		const std::map< std::string, std::string > &	rinfo,
		te::common::AccessPolicy	p = `te::common::RAccess`
	)

static

It creates a raster with the given parameters.

Parameters

rType	The name of the specific driver to create the raster.
rinfo	The necessary information to open the raster.
p	The access policy.

Returns: The opened raster.

Note: The caller will take the ownership of the returned pointer.

static Raster* te::rst::RasterFactory::open	(	const std::string &	key,
		const std::string &	value,
		te::common::AccessPolicy	p = `te::common::RAccess`
	)

static

It creates a raster with the given parameters and default raster driver.

Parameters

key	The name of the key used to define raster location, ex.: "URI".
value	The value of the key to define raster location, ex.: "/path/to/raster.tif".
p	The access policy.

Returns: The opened raster.

Note: The caller will take the ownership of the returned pointer.

static Raster* te::rst::RasterFactory::open	(	const std::string &	rType,
		const std::string &	key,
		const std::string &	value,
		te::common::AccessPolicy	p = `te::common::RAccess`
	)

static

It creates a raster with the given parameters.

Parameters

rType	The name of the specific driver to create the raster.
key	The name of the key used to define raster location, ex.: "URI".
value	The value of the key to define raster location, ex.: "/path/to/raster.tif".
p	The access policy.

Returns: The opened raster.

Note: The caller will take the ownership of the returned pointer.

Member Data Documentation

std::string te::common::AbstractFactory< Raster , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/raster/RasterFactory.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
