te::qt::plugins::vp::AbstractAction Class Reference

This is an abstract class used to register actions into vp pluging. More...

#include <AbstractAction.h>

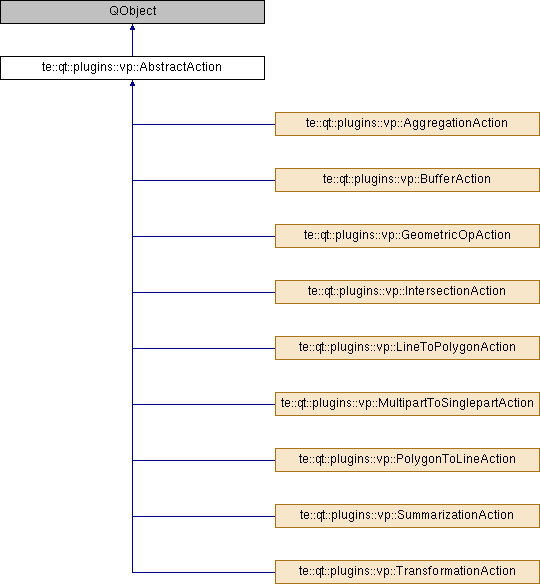

Inheritance diagram for te::qt::plugins::vp::AbstractAction:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
	AbstractAction (QMenu *menu)
	Constructor. More...
QAction *	getAction ()
virtual	~AbstractAction ()
	Destructor. More...

Protected Slots
virtual void	onActionActivated (bool checked)=0
	Slot function used when a action was selected. More...

Protected Member Functions
void	addNewLayer (te::map::AbstractLayerPtr layer)
	Add a new layer into layer explorer widget. More...
void	createAction (std::string name, std::string pixmap="")
	Create and set the actions parameters. More...
std::list< te::map::AbstractLayerPtr >	getLayers ()
	Get the list of layers from app. More...

Protected Attributes
QAction *	m_action
	Action used to call the process. More...
QMenu *	m_menu
	Parent Menu. More...

Detailed Description

This is an abstract class used to register actions into vp pluging.

Definition at line 59 of file AbstractAction.h.

Constructor & Destructor Documentation

te::qt::plugins::vp::AbstractAction::AbstractAction

(

QMenu *

menu

)

Constructor.

Parameters

menu	The parent menu object.

virtual te::qt::plugins::vp::AbstractAction::~AbstractAction ( )

virtual

Destructor.

Member Function Documentation

void te::qt::plugins::vp::AbstractAction::addNewLayer ( te::map::AbstractLayerPtr  layer )

protected

Add a new layer into layer explorer widget.

Parameters

layer

The layer auto pointer

void te::qt::plugins::vp::AbstractAction::createAction ( std::string  name, std::string  pixmap = ""  )

protected

Create and set the actions parameters.

Parameters

name	The action name.
pixmap	The action pixmap name.

QAction* te::qt::plugins::vp::AbstractAction::getAction ( )

inline

Definition at line 118 of file AbstractAction.h.

References m_action.

std::list<te::map::AbstractLayerPtr> te::qt::plugins::vp::AbstractAction::getLayers ( )

protected

Get the list of layers from app.

Returns

The list pf layer auto pointers

virtual void te::qt::plugins::vp::AbstractAction::onActionActivated ( bool  checked )

protectedpure virtualslot

Slot function used when a action was selected.

Parameters

checked

Flag used in case a toggle action.

void te::qt::plugins::vp::AbstractAction::triggered ( te::qt::af::evt::Event *  e )

signal

Member Data Documentation

QAction* te::qt::plugins::vp::AbstractAction::m_action

protected

Action used to call the process.

Definition at line 126 of file AbstractAction.h.

Referenced by getAction().

QMenu* te::qt::plugins::vp::AbstractAction::m_menu

protected

Parent Menu.

Definition at line 125 of file AbstractAction.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/qt/plugins/vp/AbstractAction.h
