This is an abstract class used to register actions into rp pluging. More...

#include <AbstractAction.h>

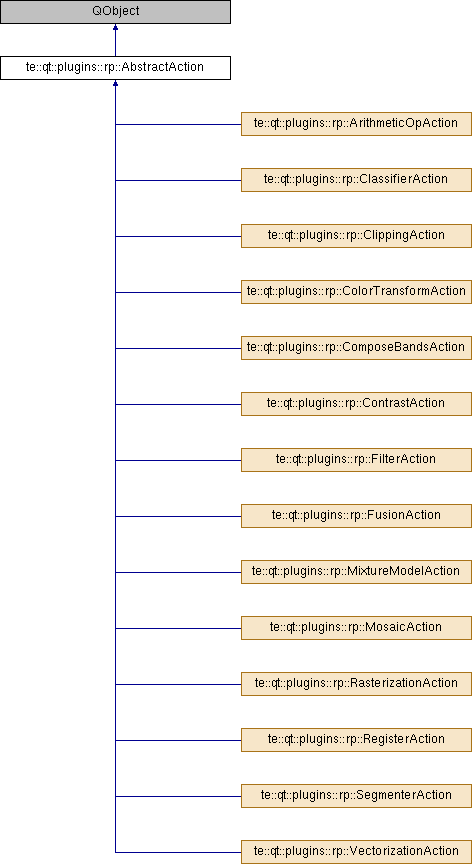

Inheritance diagram for te::qt::plugins::rp::AbstractAction:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
	AbstractAction (QMenu menu, QMenu popupMenu)
	Constructor. More...

QAction *	getAction ()

virtual	~AbstractAction ()
	Destructor. More...

Protected Slots
virtual void	onActionActivated (bool checked)=0
	Slot function used when a action was selected. More...

virtual void	onPopUpActionActivated (bool checked)
	Slot function used when a action was selected from layer pop up. More...

Protected Member Functions
void	addNewLayer (te::map::AbstractLayerPtr layer)
	Add a new layer into layer explorer widget. More...

void	createAction (std::string name, std::string pixmap="")
	Create and set the actions parameters. More...

void	createPopUpAction (std::string name, std::string pixmap="")
	Create and set the actions parameters. More...

te::map::AbstractLayerPtr	getCurrentLayer ()
	Get the selected layer from layer explorer in app. More...

std::list< te::map::AbstractLayerPtr >	getLayers ()
	Get the list of layers from app. More...

Protected Attributes
QAction *	m_action
	Action used to call the process. More...

QMenu *	m_menu
	Parent Menu. More...

QAction *	m_popupAction
	Action used to call the process from pop up layer. More...

QMenu *	m_popupMenu
	Parent popMenu. More...

Detailed Description

This is an abstract class used to register actions into rp pluging.

Definition at line 59 of file AbstractAction.h.

Constructor & Destructor Documentation

te::qt::plugins::rp::AbstractAction::AbstractAction	(	QMenu *	menu,
		QMenu *	popupMenu
	)

Constructor.

Parameters

menu	The parent menu object.

virtual te::qt::plugins::rp::AbstractAction::~AbstractAction ( )

virtual

Destructor.

Member Function Documentation

void te::qt::plugins::rp::AbstractAction::addNewLayer ( te::map::AbstractLayerPtr layer )

protected

Add a new layer into layer explorer widget.

Parameters

layer The layer auto pointer

void te::qt::plugins::rp::AbstractAction::createAction	(	std::string	name,
		std::string	pixmap = `""`
	)

protected

Create and set the actions parameters.

Parameters

name	The action name.
pixmap	The action pixmap name.

void te::qt::plugins::rp::AbstractAction::createPopUpAction	(	std::string	name,
		std::string	pixmap = `""`
	)

protected

Create and set the actions parameters.

Parameters

name	The action name.
pixmap	The action pixmap name.

QAction* te::qt::plugins::rp::AbstractAction::getAction ( )

inline

Definition at line 143 of file AbstractAction.h.

References m_action.

te::map::AbstractLayerPtr te::qt::plugins::rp::AbstractAction::getCurrentLayer ( )

protected

Get the selected layer from layer explorer in app.

Returns: The layer auto pointer

std::list<te::map::AbstractLayerPtr> te::qt::plugins::rp::AbstractAction::getLayers ( )

protected

Get the list of layers from app.

Returns: The list pf layer auto pointers

virtual void te::qt::plugins::rp::AbstractAction::onActionActivated ( bool checked )

protectedpure virtualslot

Slot function used when a action was selected.

Parameters

checked Flag used in case a toggle action.

virtual void te::qt::plugins::rp::AbstractAction::onPopUpActionActivated ( bool checked )

protectedvirtualslot

Slot function used when a action was selected from layer pop up.

Parameters

checked Flag used in case a toggle action.

void te::qt::plugins::rp::AbstractAction::triggered ( te::qt::af::evt::Event * e )

signal

Member Data Documentation

QAction* te::qt::plugins::rp::AbstractAction::m_action

protected

Action used to call the process.

Definition at line 152 of file AbstractAction.h.

Referenced by getAction().

QMenu* te::qt::plugins::rp::AbstractAction::m_menu

protected

Parent Menu.

Definition at line 150 of file AbstractAction.h.

QAction* te::qt::plugins::rp::AbstractAction::m_popupAction

protected

Action used to call the process from pop up layer.

Definition at line 153 of file AbstractAction.h.

QMenu* te::qt::plugins::rp::AbstractAction::m_popupMenu

protected

Parent popMenu.

Definition at line 151 of file AbstractAction.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/qt/plugins/rp/AbstractAction.h
