A Symbolizer describes how a feature is to appear on a map. More...

#include <Symbolizer.h>

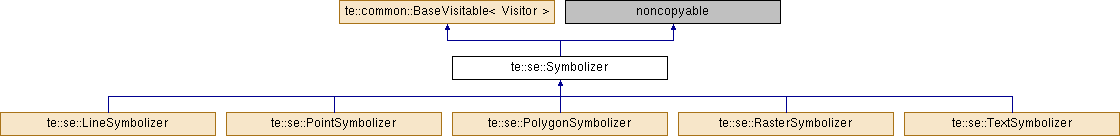

Inheritance diagram for te::se::Symbolizer:

Public Types
typedef void	ReturnType

typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const =0
	It call the visit method from the guest object. More...

virtual Symbolizer *	clone () const =0
	It creates a new copy of this object. More...

Initializer Methods
Methods related to instantiation and destruction.
	Symbolizer ()
	It initializes a new Symbolizer. More...

	Symbolizer (const Symbolizer &rhs)
	Copy constructor. More...

virtual	~Symbolizer ()
	Virtual destructor. More...

Accessor methods
Methods used to get or set properties.
void	setName (const std::string &name)

const std::string &	getName () const

void	setDescription (Description *d)

const Description *	getDescription () const

void	setBaseSymbolizer (te::xl::SimpleLink *baseSymbolizer)

const te::xl::SimpleLink *	getBaseSymbolizer () const

void	setVersion (const std::string &version)

const std::string &	getVersion () const

void	setUom (const te::common::BaseUnitOfMeasure *uom)
	It sets the unit-of-measure. More...

const te::common::BaseUnitOfMeasure *	getUom () const

virtual const std::string &	getType () const =0
	It returns the symbolizer type. More...

Private Attributes
te::xl::SimpleLink *	m_baseSymbolizer
	A BaseSymbolizer (an OnlineResource) defines the default properties of a Symbolizer to be those of an external Symbolizer, which will frequently be inside of an OGC Symbolizer repository. The Symbolizer properties given in-line override the base-Symbolizer properties. (Optional) More...

Description *	m_description
	It gives the familiar short title for display lists and longer description for the symbolizer. (Optional) More...

std::string	m_name
	It allows the symbolizer to be referenced externally, which is needed in some methods of SE usage. (Optional) More...

const te::common::BaseUnitOfMeasure *	m_uom
	Unit of measurement. If no uom is set inside of Symbolizer, all units are measured in pixel. (Mandatory) More...

std::string	m_version
	The version is an optional attribute on the FeatureType Style element that identifies the SE version number that the FeatureTypeStyle corresponds to. For now, the only allowed value is 1.1.0. (Mandatory) More...

Detailed Description

A Symbolizer describes how a feature is to appear on a map.

A Symbolizer is an abstract type for encoding the graphical properties used to portray geographic information. Concrete Symbolizers are derived from this base type. A Symbolizer describes how a feature is to appear on a map. The Symbolizer describes not just the shape that should appear but also such graphical properties as color and opacity. A Symbolizer is obtained by specifying one of a small number of different types of Symbolizers and then supplying parameters to override its default behaviour. Five types of Symbolizers are defined:

Line
Polygon
Point
Text
Raster

Concrete Symbolizer types are derived from this base type.

See also: Rule, LineSymbolizer, PointSymbolizer, PolygonSymbolizer, TextSymbolizer, RasterSymbolizer, Description

Definition at line 80 of file Symbolizer.h.

Member Typedef Documentation

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

te::se::Symbolizer::Symbolizer ( )

It initializes a new Symbolizer.

te::se::Symbolizer::Symbolizer ( const Symbolizer & rhs )

Copy constructor.

Parameters

rhs	The other symbolizer.

virtual te::se::Symbolizer::~Symbolizer ( )

virtual

Virtual destructor.

Member Function Documentation

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType & guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest The guest or visitor.

Returns: Any valid value define by the template type R.

virtual Symbolizer* te::se::Symbolizer::clone ( ) const

pure virtual

It creates a new copy of this object.

Implemented in te::se::PolygonSymbolizer, te::se::RasterSymbolizer, te::se::LineSymbolizer, te::se::TextSymbolizer, and te::se::PointSymbolizer.

const te::xl::SimpleLink* te::se::Symbolizer::getBaseSymbolizer ( ) const

const Description* te::se::Symbolizer::getDescription ( ) const

const std::string& te::se::Symbolizer::getName ( ) const

virtual const std::string& te::se::Symbolizer::getType ( ) const

pure virtual

It returns the symbolizer type.

Returns: The symbolizer type.

Implemented in te::se::PolygonSymbolizer, te::se::RasterSymbolizer, te::se::LineSymbolizer, te::se::TextSymbolizer, and te::se::PointSymbolizer.

const te::common::BaseUnitOfMeasure* te::se::Symbolizer::getUom ( ) const

const std::string& te::se::Symbolizer::getVersion ( ) const

void te::se::Symbolizer::setBaseSymbolizer ( te::xl::SimpleLink * baseSymbolizer )

void te::se::Symbolizer::setDescription ( Description * d )

void te::se::Symbolizer::setName ( const std::string & name )

void te::se::Symbolizer::setUom ( const te::common::BaseUnitOfMeasure * uom )

It sets the unit-of-measure.

All Symbolizers include an optional gml:uom-attribute as used by GML (this is set inside the abstract SymbolizerType and therefore inherited by all Symbolizers). This applies to all elements included inside a Symbolizer such as stroke-width, size, font-size, Gap, InitialGap, Displacement and PerpendicularOffset. If no uom is set inside of Symbolizer, all units are measured in pixel, the behaviour used by SLD 1.0.0. The following uom definitions are recommended to be used:

void te::se::Symbolizer::setVersion ( const std::string & version )

Member Data Documentation

te::xl::SimpleLink* te::se::Symbolizer::m_baseSymbolizer

private

A BaseSymbolizer (an OnlineResource) defines the default properties of a Symbolizer to be those of an external Symbolizer, which will frequently be inside of an OGC Symbolizer repository. The Symbolizer properties given in-line override the base-Symbolizer properties. (Optional)

Definition at line 164 of file Symbolizer.h.

Description* te::se::Symbolizer::m_description

private

It gives the familiar short title for display lists and longer description for the symbolizer. (Optional)

Definition at line 163 of file Symbolizer.h.

std::string te::se::Symbolizer::m_name

private

It allows the symbolizer to be referenced externally, which is needed in some methods of SE usage. (Optional)

Definition at line 162 of file Symbolizer.h.

const te::common::BaseUnitOfMeasure* te::se::Symbolizer::m_uom

private

Unit of measurement. If no uom is set inside of Symbolizer, all units are measured in pixel. (Mandatory)

Definition at line 166 of file Symbolizer.h.

std::string te::se::Symbolizer::m_version

private

The version is an optional attribute on the FeatureType Style element that identifies the SE version number that the FeatureTypeStyle corresponds to. For now, the only allowed value is 1.1.0. (Mandatory)

Definition at line 165 of file Symbolizer.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/se/Symbolizer.h
