A PolygonSymbolizer is used to draw a polygon (or other area-type geometries), including filling its interior and stroking its border (outline). More...

#include <PolygonSymbolizer.h>

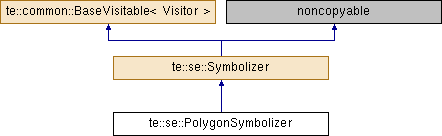

Inheritance diagram for te::se::PolygonSymbolizer:

Public Types
typedef void	ReturnType

typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const =0
	It call the visit method from the guest object. More...

Symbolizer *	clone () const
	It creates a new copy of this object. More...

Initializer Methods
Methods related to instantiation and destruction.
	PolygonSymbolizer ()
	It initializes a new PolygonSymbolizer. More...

	PolygonSymbolizer (const PolygonSymbolizer &rhs)
	Copy constructor. More...

	~PolygonSymbolizer ()
	Destructor. More...

Accessor methods
Methods used to get or set properties.
void	setGeometry (te::fe::PropertyName *geometry)
	The Geometry element of a PolygonSymbolizer defines the linear geometry to be used for styling. The Geometry element is optional and if it is absent then the all geometry properties of the feature type that is used in the containing FeatureType are used. Most frequently, though, feature types will have only a single geometry property. See OGC te::fe::PropertyName class for more information on attribute names. If a polygon has "holes", then they are not filled, but the borders around the holes are stroked in the usual way. "Islands" within holes are filled and stroked, and so on. If a point geometry is referenced instead of a polygon, then a small, square, ortho-normal polygon should be constructed for rendering. If a line is referenced, then the line (string) is closed for filling (only) by connecting its end point to its start point, any line crossings are corrected in some way, and only the original line is stroked. If a raster geometry is used, then the raster-coverage area is used as the polygon. A missing Geometry element selects the "default" geometry for a feature type. More...

const te::fe::PropertyName *	getGeometry () const

void	setFill (Fill *f)
	A Fill specifies the pattern for filling an area geometry. More...

const Fill *	getFill () const
	Gets the Fill associates with the PolygonSymbolizer. More...

void	setStroke (Stroke *stroke)
	A Stroke specifies the appearance of a linear geometry. More...

const Stroke *	getStroke () const
	Gets the Stroke associates with the PolygonSymbolizer. More...

void	setDisplacement (Displacement *d)
	The Displacement gives the X and Y displacements from the original geometry. More...

const Displacement *	getDisplacement () const

void	setPerpendicularOffset (ParameterValue *perpendicularOffset)
	PerpendicularOffset works as defined for LineSymbolizer, allowing to draw polygons smaller or larger than their actual geometry. More...

const ParameterValue *	getPerpendicularOffset () const

const std::string &	getType () const
	It returns the symbolizer type. More...

Accessor methods
Methods used to get or set properties.
void	setName (const std::string &name)

const std::string &	getName () const

void	setDescription (Description *d)

const Description *	getDescription () const

void	setBaseSymbolizer (te::xl::SimpleLink *baseSymbolizer)

const te::xl::SimpleLink *	getBaseSymbolizer () const

void	setVersion (const std::string &version)

const std::string &	getVersion () const

void	setUom (const te::common::BaseUnitOfMeasure *uom)
	It sets the unit-of-measure. More...

const te::common::BaseUnitOfMeasure *	getUom () const

Private Attributes
Displacement *	m_displacement
	The Displacement gives the X and Y displacements from the original geometry. (Optional) More...

Fill *	m_fill
	Specifies how the area of the geometry will be filled. (Optional) More...

te::fe::PropertyName *	m_geometry
	A Geometry gives reference to a (the) geometry property of a feature to be used for rendering. (Optional) More...

ParameterValue *	m_perpendicularOffset
	A "PerpendicularOffset" gives the perpendicular distance away from a line to draw a label. (Optional) More...

Stroke *	m_stroke
	A "Stroke" specifies the appearance of a linear geometry. (Optional) More...

Static Private Attributes
static const std::string	sm_type
	A static data member used in the implementation of getType method. More...

Detailed Description

A PolygonSymbolizer is used to draw a polygon (or other area-type geometries), including filling its interior and stroking its border (outline).

The Fill and Stroke elements are contained in the PolygonSymbolizer in the conceptual order that they are used and plotted using the "painters model", where the Fill will be rendered first, and then the Stroke will be rendered on top of the fill. A missing Stroke element means that the geometry will not be stroked.

See also: Symbolizer, Fill, Stroke, te::fe::PropertyName, Displacement, ParameterValue, ImageOutline

Definition at line 60 of file PolygonSymbolizer.h.

Member Typedef Documentation

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

te::se::PolygonSymbolizer::PolygonSymbolizer ( )

It initializes a new PolygonSymbolizer.

te::se::PolygonSymbolizer::PolygonSymbolizer ( const PolygonSymbolizer & rhs )

Copy constructor.

Parameters

rhs	The other polygon symbolizer.

te::se::PolygonSymbolizer::~PolygonSymbolizer ( )

Destructor.

Member Function Documentation

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType & guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest The guest or visitor.

Returns: Any valid value define by the template type R.

Symbolizer* te::se::PolygonSymbolizer::clone ( ) const

virtual

It creates a new copy of this object.

Implements te::se::Symbolizer.

const te::xl::SimpleLink* te::se::Symbolizer::getBaseSymbolizer ( ) const

inherited

const Description* te::se::Symbolizer::getDescription ( ) const

inherited

const Displacement* te::se::PolygonSymbolizer::getDisplacement ( ) const

const Fill* te::se::PolygonSymbolizer::getFill ( ) const

Gets the Fill associates with the PolygonSymbolizer.

Returns: The Fill element.

const te::fe::PropertyName* te::se::PolygonSymbolizer::getGeometry ( ) const

const std::string& te::se::Symbolizer::getName ( ) const

inherited

const ParameterValue* te::se::PolygonSymbolizer::getPerpendicularOffset ( ) const

const Stroke* te::se::PolygonSymbolizer::getStroke ( ) const

Gets the Stroke associates with the PolygonSymbolizer.

Returns: The Stroke element.

const std::string& te::se::PolygonSymbolizer::getType ( ) const

virtual

It returns the symbolizer type.

Returns: The symbolizer type.

Implements te::se::Symbolizer.

const te::common::BaseUnitOfMeasure* te::se::Symbolizer::getUom ( ) const

inherited

const std::string& te::se::Symbolizer::getVersion ( ) const

inherited

void te::se::Symbolizer::setBaseSymbolizer ( te::xl::SimpleLink * baseSymbolizer )

inherited

void te::se::Symbolizer::setDescription ( Description * d )

inherited

void te::se::PolygonSymbolizer::setDisplacement ( Displacement * d )

The Displacement gives the X and Y displacements from the original geometry.

This element may be used to avoid over-plotting of multiple PolygonSymbolizers for one geometry or supplying "shadows" of polygon gemeotries. The displacements are in units of pixels above and to the right of the point. The default displacement is X = 0, Y = 0.

Parameters

d

void te::se::PolygonSymbolizer::setFill ( Fill * f )

A Fill specifies the pattern for filling an area geometry.

The allowed SvgParameters are: "fill" (color) and "fill-opacity".

void te::se::PolygonSymbolizer::setGeometry ( te::fe::PropertyName * geometry )

The Geometry element of a PolygonSymbolizer defines the linear geometry to be used for styling. The Geometry element is optional and if it is absent then the all geometry properties of the feature type that is used in the containing FeatureType are used. Most frequently, though, feature types will have only a single geometry property. See OGC te::fe::PropertyName class for more information on attribute names. If a polygon has "holes", then they are not filled, but the borders around the holes are stroked in the usual way. "Islands" within holes are filled and stroked, and so on. If a point geometry is referenced instead of a polygon, then a small, square, ortho-normal polygon should be constructed for rendering. If a line is referenced, then the line (string) is closed for filling (only) by connecting its end point to its start point, any line crossings are corrected in some way, and only the original line is stroked. If a raster geometry is used, then the raster-coverage area is used as the polygon. A missing Geometry element selects the "default" geometry for a feature type.

Note: Geometry types other than inherently linear types can also be used. If a point geometry is used, it should be interpreted as a line of "epsilon" (arbitrarily small) length with a horizontal orientation centered on the point, and should be rendered with two end caps. If a polygon is used (or other "area" type), then its closed outline is used as the line string (with no end caps). If a raster geometry is used, its coverage-area outline is used for the line, rendered with no end caps.

void te::se::Symbolizer::setName ( const std::string & name )

inherited

void te::se::PolygonSymbolizer::setPerpendicularOffset ( ParameterValue * perpendicularOffset )

PerpendicularOffset works as defined for LineSymbolizer, allowing to draw polygons smaller or larger than their actual geometry.

The distance is in uoms and is positive to the outside of the polygon. Negative numbers mean drawing the polygon smaller. The default offset is 0.

void te::se::PolygonSymbolizer::setStroke ( Stroke * stroke )

A Stroke specifies the appearance of a linear geometry.

A missing Stroke element means that the geometry will not be stroked.

void te::se::Symbolizer::setUom ( const te::common::BaseUnitOfMeasure * uom )

inherited

It sets the unit-of-measure.

All Symbolizers include an optional gml:uom-attribute as used by GML (this is set inside the abstract SymbolizerType and therefore inherited by all Symbolizers). This applies to all elements included inside a Symbolizer such as stroke-width, size, font-size, Gap, InitialGap, Displacement and PerpendicularOffset. If no uom is set inside of Symbolizer, all units are measured in pixel, the behaviour used by SLD 1.0.0. The following uom definitions are recommended to be used:

void te::se::Symbolizer::setVersion ( const std::string & version )

inherited

Member Data Documentation

Displacement* te::se::PolygonSymbolizer::m_displacement

private

The Displacement gives the X and Y displacements from the original geometry. (Optional)

Definition at line 191 of file PolygonSymbolizer.h.

Fill* te::se::PolygonSymbolizer::m_fill

private

Specifies how the area of the geometry will be filled. (Optional)

Definition at line 189 of file PolygonSymbolizer.h.

te::fe::PropertyName* te::se::PolygonSymbolizer::m_geometry

private

A Geometry gives reference to a (the) geometry property of a feature to be used for rendering. (Optional)

Definition at line 188 of file PolygonSymbolizer.h.

ParameterValue* te::se::PolygonSymbolizer::m_perpendicularOffset

private

A "PerpendicularOffset" gives the perpendicular distance away from a line to draw a label. (Optional)

Definition at line 192 of file PolygonSymbolizer.h.

Stroke* te::se::PolygonSymbolizer::m_stroke

private

A "Stroke" specifies the appearance of a linear geometry. (Optional)

Definition at line 190 of file PolygonSymbolizer.h.

const std::string te::se::PolygonSymbolizer::sm_type

staticprivate

A static data member used in the implementation of getType method.

Definition at line 194 of file PolygonSymbolizer.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/se/PolygonSymbolizer.h
