#include <EditInfoTool.h>

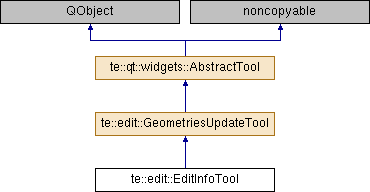

Inheritance diagram for te::edit::EditInfoTool:

Signals
void	geometriesEdited ()

void	geometriesStarted ()

void	toolDeleted ()

Public Member Functions
void	disableMouseEvent (QMouseEvent::Type mEvent)

	EditInfoTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)

std::string	getLayerId ()

bool	isInUse () const

virtual void	resetVisualizationTool ()

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

	~EditInfoTool ()

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Protected Attributes
QCursor	m_curCursor
	The current mapdisplay cursor. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

te::map::AbstractLayer *	m_layer

QMouseEvent::Type	m_mEvent

Private Slots
void	onAttributesTreeWidgetItemDoubleClicked (QTreeWidgetItem *item, int column)

void	onCancelPushButtonPressed ()

void	onOkPushButtonPressed ()

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	getInfo (const te::gm::Envelope &e)

std::unique_ptr< te::dt::AbstractData >	getValue (int type, QString value) const

void	pickFeature (const te::map::AbstractLayerPtr &layer, const QPointF &pos)

void	storeFeature ()

void	updateCursor ()

Private Attributes
std::map< std::size_t, te::dt::AbstractData * >	m_data

te::da::DataSet *	m_dataset
	The attributes dataset type. More...

QDialog *	m_dialog

QTreeWidget *	m_infoWidget
	Widget used to show the informations. More...

std::vector< std::size_t >	m_restrictivePropertyPos

Detailed Description

Definition at line 57 of file EditInfoTool.h.

Constructor & Destructor Documentation

te::edit::EditInfoTool::EditInfoTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

te::edit::EditInfoTool::~EditInfoTool ( )

Member Function Documentation

te::gm::Envelope te::edit::EditInfoTool::buildEnvelope ( const QPointF & pos )

private

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type mEvent )

inherited

void te::edit::EditInfoTool::draw ( )

private

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

void te::edit::EditInfoTool::getInfo ( const te::gm::Envelope & e )

private

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

std::unique_ptr<te::dt::AbstractData> te::edit::EditInfoTool::getValue	(	int	type,
		QString	value
	)		const

private

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

virtual bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::qt::widgets::Selection, te::edit::CreatePolygonTool, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::qt::widgets::PolygonAcquire, te::edit::RotateGeometryTool, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::edit::AggregateAreaTool, te::qt::widgets::PointPicker, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::PanMiddleClick, te::edit::SubtractAreaTool, te::mnt::ProfileTools, and te::qt::plugins::mnt::ShowValuesTool.

bool te::edit::EditInfoTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

virtual bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Info, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::qt::widgets::Selection, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::qt::widgets::PolygonAcquire, te::edit::RotateGeometryTool, te::qt::widgets::PanExtent, te::edit::AggregateAreaTool, te::qt::widgets::ExtentAcquire, te::qt::widgets::PointPicker, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::PanMiddleClick, te::edit::SubtractAreaTool, te::mnt::ProfileTools, and te::qt::widgets::ReadPixelTool.

void te::edit::EditInfoTool::onAttributesTreeWidgetItemDoubleClicked	(	QTreeWidgetItem *	item,
		int	column
	)

privateslot

void te::edit::EditInfoTool::onCancelPushButtonPressed ( )

privateslot

void te::edit::EditInfoTool::onOkPushButtonPressed ( )

privateslot

void te::edit::EditInfoTool::pickFeature	(	const te::map::AbstractLayerPtr &	layer,
		const QPointF &	pos
	)

private

virtual void te::edit::GeometriesUpdateTool::resetVisualizationTool ( )

virtualinherited

Reimplemented in te::edit::VertexTool, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, and te::edit::CreatePointTool.

void te::edit::GeometriesUpdateTool::setCursor ( const QCursor & cursor )

protectedvirtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Reimplemented from te::qt::widgets::AbstractTool.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

void te::edit::EditInfoTool::storeFeature ( )

private

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

void te::edit::EditInfoTool::updateCursor ( )

private

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

std::map<std::size_t, te::dt::AbstractData*> te::edit::EditInfoTool::m_data

private

Definition at line 95 of file EditInfoTool.h.

te::da::DataSet* te::edit::EditInfoTool::m_dataset

private

The attributes dataset type.

Definition at line 94 of file EditInfoTool.h.

QDialog* te::edit::EditInfoTool::m_dialog

private

Definition at line 97 of file EditInfoTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 102 of file GeometriesUpdateTool.h.

QTreeWidget* te::edit::EditInfoTool::m_infoWidget

private

Widget used to show the informations.

Definition at line 98 of file EditInfoTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 103 of file GeometriesUpdateTool.h.

QMouseEvent::Type te::edit::GeometriesUpdateTool::m_mEvent

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

std::vector<std::size_t> te::edit::EditInfoTool::m_restrictivePropertyPos

private

Definition at line 96 of file EditInfoTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/EditInfoTool.h
