te::gm::GeometryCollection Class Referenceabstract

It is a collection of other geometric objects. More...

#include <GeometryCollection.h>

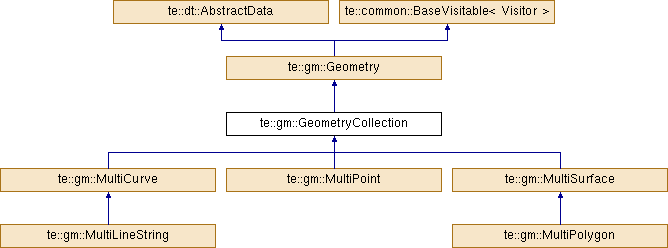

Inheritance diagram for te::gm::GeometryCollection:
te::gm::Geometry te::dt::AbstractData te::common::BaseVisitable< Visitor > te::gm::MultiCurve te::gm::MultiPoint te::gm::MultiSurface te::gm::MultiLineString te::gm::MultiPolygon

Public Types

typedef void ReturnType

typedef Visitor VisitorType


Public Member Functions

virtual ReturnType accept (VisitorType &guest) const=0
 It call the visit method from the guest object. More...

Initializer methods on geometric objects

Methods for initializing a geometric object.

 GeometryCollection (std::size_t nGeom, GeomType t, int srid=0, Envelope *mbr=0)
 It initializes the geometry collection with the specified spatial reference system id and envelope. More...

 GeometryCollection (const GeometryCollection &rhs)
 Copy constructor. More...

GeometryCollectionoperator= (const GeometryCollection &rhs)
 Assignment operator. More...

virtual ~GeometryCollection ()
 Virtual destructor. More...

Re-Implementation from AbstractData

Methods re-Implementated from AbstractData.

virtual te::dt::AbstractDataclone () const
 It clones the geometry collection. More...

Re-Implmentation of methods from Geometry class

Re-Implmentation of basic methods from Geometry class.

virtual Dimensionality getDimension () const throw ()
 For non-homogeneous collections this method will return the largest dimension of the contained objects. More...

virtual const std::string & getGeometryType () const throw ()
 The name of the Geometry subtype is: GeometryCollection. More...

void setSRID (int srid) throw ()
 It sets the Spatial Reference System ID of the geometry collection and all its parts. More...

void transform (int srid) throw (te::common::Exception)
 It will transform the coordinates of the geometry collection to the new one. More...

void computeMBR (bool cascade) const throw ()
 It computes the minimum bounding rectangle for the geometry collection. More...

std::size_t getNPoints () const throw ()
 it returns the number of points (vertexes) in the geometry. More...

GeometryCollection Specific Methods

Specific methods for a GeometryCollection.

const std::vector< Geometry * > & getGeometries () const
 It returns a reference to the internal list of geometries. More...

std::vector< Geometry * > & getGeometries ()
 It returns a reference to the internal list of geometries. More...

std::size_t getNumGeometries () const
 It returns the number of geometries in this GeometryCollection. More...

void setNumGeometries (std::size_t size)
 It sets the number of geometries in this GeometryCollection. More...

GeometrygetGeometryN (std::size_t i) const
 It returns the n-th geometry in this GeometryCollection. More...

GeometrygetGeometryN (std::size_t i)
 It returns the n-th geometry in this GeometryCollection. More...

void setGeometryN (std::size_t i, Geometry *g)
 It sets the n-th geometry in this geometry collection. More...

void removeGeometryN (std::size_t i)
 It removes the n-th geometry in this geometry collection. More...

void add (Geometry *g)
 It adds the geometry into the collection. More...

void clear ()
 It deletes all the elements of the collection. More...

Basic Geometry Methods

Basic methods on geometric objects.

int getCoordinateDimension () const _NOEXCEPT_OP(true)
 It returns the number of measurements or axes needed to describe a position in a coordinate system. More...

GeomType getGeomTypeId () const _NOEXCEPT_OP(true)
 It returns the geometry subclass type identifier. More...

virtual const std::string get2DGeometryType () const _NOEXCEPT_OP(true)
 It returns the name of 2D geometry subclass. More...

virtual GeomType get2DGeomTypeId () const _NOEXCEPT_OP(true)
 It returns the 2D geometry subclass type identifier. More...

int getSRID () const _NOEXCEPT_OP(true)
 It returns the Spatial Reference System ID associated to this geometric object. More...

GeometrygetEnvelope () const _NOEXCEPT_OP(true)
 It returns the minimum bounding rectangle (MBR) for the geometry. More...

const EnvelopegetMBR () const _NOEXCEPT_OP(true)
 It returns the minimum bounding rectangle for the geometry in an internal representation. More...

std::string asText () const _NOEXCEPT_OP(true)
 It returns an string with the Well-Known Text Representation for the geometry. More...

char * asBinary (std::size_t &size) const _NOEXCEPT_OP(false)
 It serializes the geometric object to a Well-known Binary Representation (WKB). More...

std::size_t getWkbSize () const _NOEXCEPT_OP(true)
 It returns the size required by a WKB representation for this geometric object. More...

void getWkb (char *wkb, te::common::MachineByteOrder byteOrder) const _NOEXCEPT_OP(false)
 It serializes the geometry to a WKB representation into the specified buffer. More...

virtual bool isEmpty () const _NOEXCEPT_OP(false)
 It returns true if this geometric object is the empty Geometry. More...

virtual bool isSimple () const _NOEXCEPT_OP(false)
 It returns true if this geometric object has no anomalous points, such as self intersection or self tangency. More...

virtual bool isValid () const _NOEXCEPT_OP(false)
 It tells if the geometry is well formed. More...

bool is3D () const _NOEXCEPT_OP(true)
 It returns true if this geometric object has z coordinate values. More...

bool isMeasured () const _NOEXCEPT_OP(true)
 It returns true if this geometric object has m coordinate values. More...

bool isCollection () const _NOEXCEPT_OP(true)
 It returns true if this geometric object is a collection. More...

virtual GeometrygetBoundary () const _NOEXCEPT_OP(false)
 It returns the geometry boundary. More...

te::gm::Coord2D getCentroid () const _NOEXCEPT_OP(false)
 It will get the centroid of the input geometries. More...

Spatial Relations

Methods for testing spatial relations between geometric objects.

Please, see OGC specification for a in depth definition of each spatial operation.

virtual bool equals (const Geometry *const rhs, const bool exact=false) const _NOEXCEPT_OP(false)
 It returns true if the geometry object is spatially equal to rhs geometry. More...

virtual bool disjoint (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object is spatially disjoint from rhs geometry. More...

virtual bool intersects (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object spatially intersects rhs geometry. More...

virtual bool touches (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object spatially touches rhs geometry. More...

virtual bool crosses (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object spatially crosses rhs geometry. More...

virtual bool within (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object is spatially within rhs geometry. More...

virtual bool contains (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object spatially contains rhs geometry. More...

virtual bool overlaps (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object spatially overlaps rhs geometry. More...

virtual bool relate (const Geometry *const rhs, const std::string &matrix) const _NOEXCEPT_OP(false)
 It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix. More...

virtual std::string relate (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns the spatial relation between this geometry object and the rhs geometry. More...

virtual bool covers (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object spatially covers the rhs geometry. More...

virtual bool coveredBy (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object is spatially covered by rhs geometry. More...

virtual GeometrylocateAlong (const double &mValue) const _NOEXCEPT_OP(false)
 It returns a derived GeometryCollection value according to the specified coordinate value. More...

virtual GeometrylocateBetween (const double &mStart, const double &mEnd) const _NOEXCEPT_OP(false)
 It returns a derived geometry collection value according to the range of coordinate values inclusively. More...

Spatial Analysis

Methods that support spatial analysis.

virtual double distance (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns the shortest distance between any two points in the two geometry objects. More...

virtual Geometrybuffer (const double &distance) const _NOEXCEPT_OP(false)
 This method calculates the buffer of a geometry. More...

virtual Geometrybuffer (const double &distance, int quadrantSegments) const _NOEXCEPT_OP(false)
 This method calculates the buffer of a geometry. More...

virtual Geometrybuffer (const double &distance, int quadrantSegments, BufferCapStyle endCapStyle) const _NOEXCEPT_OP(false)
 This method calculates the buffer of a geometry. More...

virtual GeometryconvexHull () const _NOEXCEPT_OP(false)
 This method calculates the Convex Hull of a geometry. More...

virtual Geometryintersection (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set intersection with another geometry. More...

virtual GeometryUnion (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set union with another geometry. More...

virtual Geometrydifference (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set difference with another geometry. More...

virtual GeometrysymDifference (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set symetric difference with another geometry. More...

virtual bool dWithin (const Geometry *const rhs, const double &distance) const _NOEXCEPT_OP(false)
 It returns true if the geometries are within the specified distance. More...

AbstractData Re-implementation

Methods re-implemneted from AbstractData.

int getTypeCode () const
 It returns the data type code associated to the data value. More...

std::string toString () const
 It returns the data value in a WKT representation. More...


Static Public Member Functions

Auxiliary Methods

Auxiliary Methods.

static GeomType getGeomTypeId (const std::string &gtype)
 It returns the TerraLib geometry type id given a type string (the type string must be in capital letters). More...

static std::string getGeomTypeString (const int &gId)
 It returns the TerraLib geometry type string given a type id. More...

static bool isGeomType (const std::string &stype)
 It tells if the given string is a geometry data type. More...

static void loadGeomTypeId ()
 It loads the internal MAP of geometry type names to geometry type ids. More...


Protected Attributes

std::vector< Geometry * > m_geometries
 The array of geometries that forms the collection. More...

GeomType m_gType
 Internal geometry type. More...

Envelopem_mbr
 The geometry minimum bounding rectangle. More...

int m_srid
 The Spatial Reference System code associated to the Geometry. More...


Static Protected Attributes

static std::map< std::string, GeomTypesm_geomTypeMap
 A set of geometry type names (in UPPER CASE). More...


Static Private Attributes

static const std::string sm_typeName
 Geometry type name for GeometryCollection. More...


Detailed Description

It is a collection of other geometric objects.

See also
Geometry, Point, Curve, LineString, LinearRing, Surface, Polygon, Triangle, PolyhedralSurface, TIN, MultiSurface, MultiCurve, MultiPoint, MultiLineString, MultiPolygon
Note
All the elements shall be in the same Spatial Reference System as the geometry collection. Although the class will not perform this check it is very important to use it to build valid geometries.

Definition at line 57 of file GeometryCollection.h.

Member Typedef Documentation

◆ ReturnType

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType
inherited

Definition at line 58 of file BaseVisitable.h.

◆ VisitorType

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType
inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

◆ GeometryCollection() [1/2]

te::gm::GeometryCollection::GeometryCollection ( std::size_t  nGeom,
GeomType  t,
int  srid = 0,
Envelope mbr = 0
)

It initializes the geometry collection with the specified spatial reference system id and envelope.

Parameters
nGeomThe number of geometries in the collection. This will reserve same space in the list of geometries.
tThe internal type of the Geometry.
sridThe Spatial Reference System ID associated to the Geometry.
mbrThe minimum bounding rectangle of this geometry (i.e., its envelope). May be a NULL value.
Note
The geometry collection will take the ownership of the given mbr.
When using this constructor you must set all geometries before calling any other method (like getMBR).

◆ GeometryCollection() [2/2]

te::gm::GeometryCollection::GeometryCollection ( const GeometryCollection rhs)

Copy constructor.

Parameters
rhsThe other geometry.

◆ ~GeometryCollection()

virtual te::gm::GeometryCollection::~GeometryCollection ( )
virtual

Virtual destructor.

Member Function Documentation

◆ accept()

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType guest) const
pure virtualinherited

It call the visit method from the guest object.

Parameters
guestThe guest or visitor.
Returns
Any valid value define by the template type R.

◆ add()

void te::gm::GeometryCollection::add ( Geometry g)

It adds the geometry into the collection.

GeometryCollection will take the ownership of the informed geometry.

Parameters
gThe geometry you want to add to the collection.
Note
TerraLib extended method.

Referenced by te::rp::GetTPConvexHullArea().

◆ asBinary()

char* te::gm::Geometry::asBinary ( std::size_t &  size) const
inherited

It serializes the geometric object to a Well-known Binary Representation (WKB).

Parameters
sizeThe size in bytes of the returned WKB.
Returns
The WKB representation for this object.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
The WKB will be on machine byte order.
The caller of this method will take the ownership of the returned wkb. You must use "delete [] pointer" in order to free the memory pointed by returned pointer.

◆ asText()

std::string te::gm::Geometry::asText ( ) const
inherited

It returns an string with the Well-Known Text Representation for the geometry.

Returns
The WKT for the Geometry.

◆ buffer() [1/3]

virtual Geometry* te::gm::Geometry::buffer ( const double &  distance) const
virtualinherited

This method calculates the buffer of a geometry.

Parameters
distanceDistance value.
Returns
A geometry representing all points less than or equal to the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
Performed by GEOS.

◆ buffer() [2/3]

virtual Geometry* te::gm::Geometry::buffer ( const double &  distance,
int  quadrantSegments
) const
virtualinherited

This method calculates the buffer of a geometry.

Parameters
distanceDistance value.
quadrantSegmentsA specified number of segments used to approximate the curves.
Returns
A geometry representing all points less than or equal to the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
TerraLib extended method.
Performed by GEOS.

◆ buffer() [3/3]

virtual Geometry* te::gm::Geometry::buffer ( const double &  distance,
int  quadrantSegments,
BufferCapStyle  endCapStyle
) const
virtualinherited

This method calculates the buffer of a geometry.

As in GEOS, the quadrantSegments argument allows controlling the accuracy of the approximation by specifying the number of line segments used to represent a quadrant of a circle.

Parameters
distanceDistance value.
quadrantSegmentsA specified number of segments used to approximate the curves.
endCapStyleIt specifies the shape used at the ends of linestrings.
Returns
A geometry representing all points less than or equal to the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned Geometry.
TerraLib extended method.
Performed by GEOS.

◆ clear()

void te::gm::GeometryCollection::clear ( )

It deletes all the elements of the collection.

After calling this method you can NOT use the setGeometryN method. You will need to call setNumGeometries() again or use add().

Note
TerraLib extended method.

◆ clone()

virtual te::dt::AbstractData* te::gm::GeometryCollection::clone ( ) const
virtual

It clones the geometry collection.

Returns
A copy of the given geometry collection.
Note
The caller of this method will take the ownership of the returned geometry collection.
The cloned geometry collection will not have the MBR computed. This will save time when you are just cloning a geometry and don't intend to waste time computing the bounding box. If you have another suggestion, please, let me know.

Implements te::dt::AbstractData.

Reimplemented in te::gm::MultiPolygon, te::gm::MultiLineString, te::gm::MultiPoint, te::gm::MultiSurface, and te::gm::MultiCurve.

◆ computeMBR()

void te::gm::GeometryCollection::computeMBR ( bool  cascade) const
throw (
)
virtual

It computes the minimum bounding rectangle for the geometry collection.

Parameters
cascadeIf true, it will update the MBR of its parts.
Note
You can use this method in order to update the MBR of the geometry collection.
TerraLib extended method.

Implements te::gm::Geometry.

◆ contains()

virtual bool te::gm::Geometry::contains ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object spatially contains rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially contains the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ convexHull()

virtual Geometry* te::gm::Geometry::convexHull ( ) const
virtualinherited

This method calculates the Convex Hull of a geometry.

Returns
A geometry representing the convex hull.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
Performed by GEOS.

Referenced by te::rp::GetTPConvexHullArea().

◆ coveredBy()

virtual bool te::gm::Geometry::coveredBy ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object is spatially covered by rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry is spatially covered by the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
TerraLib extended method.
This is not the same as within. See Max Egenhofer paper on 9-intersection matrix.
Performed by GEOS.

◆ covers()

virtual bool te::gm::Geometry::covers ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object spatially covers the rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially covers the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
TerraLib extended method.
This is not the same as contains. See Max Egenhofer paper on 9-intersection matrix.
Performed by GEOS.

◆ crosses()

virtual bool te::gm::Geometry::crosses ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object spatially crosses rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially crosses the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ difference()

virtual Geometry* te::gm::Geometry::difference ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set difference with another geometry.

Parameters
rhsAnother geometry whose difference with this geometry will be calculated.
Returns
A geometry representing the difference between the geometries.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ disjoint()

virtual bool te::gm::Geometry::disjoint ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object is spatially disjoint from rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry is spatially disjoint from the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ distance()

virtual double te::gm::Geometry::distance ( const Geometry *const  rhs) const
virtualinherited

It returns the shortest distance between any two points in the two geometry objects.

Parameters
rhsThe other geometry.
Returns
The shortest distance between any two points in the two geometries.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
Performed by GEOS.

Referenced by te::gm::DistanceOrderFunctor::operator()().

◆ dWithin()

virtual bool te::gm::Geometry::dWithin ( const Geometry *const  rhs,
const double &  distance
) const
virtualinherited

It returns true if the geometries are within the specified distance.

Parameters
rhsThe other geometry whose symetric difference with this geometry will be calculated.
distanceThe distance.
Returns
True if the geometries are within the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
TerraLib extended method.
Performed by GEOS.

◆ equals()

virtual bool te::gm::Geometry::equals ( const Geometry *const  rhs,
const bool  exact = false
) const
virtualinherited

It returns true if the geometry object is spatially equal to rhs geometry.

Parameters
rhsThe another geometry to be compared.
exactIf true checks if this geometric object has the same vertexes in the same order of rhs geometry.
Returns
True if the geometry is spatially equal to the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise an exception will be thrown.
Note
Performed by GEOS.

◆ get2DGeometryType()

virtual const std::string te::gm::Geometry::get2DGeometryType ( ) const
virtualinherited

It returns the name of 2D geometry subclass.

The name of the 2D geometry subclass may be one of the following:

Returns
The name of the geometry subclass type ide.

◆ get2DGeomTypeId()

virtual GeomType te::gm::Geometry::get2DGeomTypeId ( ) const
virtualinherited

It returns the 2D geometry subclass type identifier.

  • GeometryType = 0
  • PointType = 1
  • LineStringType = 2
  • PolygonType = 3
  • MultiPointType = 4
  • MultiLineStringType = 5
  • MultiPolygonType = 6
  • GeometryCollectionType = 7
  • CircularStringType = 8
  • CompoundCurveType = 9
  • CurvePolygonType = 10
  • MultiSurfaceType = 12
Returns
The 2D geometry subclass type identifier
Note
Please, see GeomType enumeration for possible return values.
TerraLib extended method.

◆ getBoundary()

virtual Geometry* te::gm::Geometry::getBoundary ( ) const
virtualinherited

It returns the geometry boundary.

Returns
The geometry that makes the boundary of this geometry. The caller of this method will take the ownership of the returned geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ getCentroid()

te::gm::Coord2D te::gm::Geometry::getCentroid ( ) const
inherited

It will get the centroid of the input geometries.

Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Returns
a Point containing the centroid coord.

◆ getCoordinateDimension()

int te::gm::Geometry::getCoordinateDimension ( ) const
inherited

It returns the number of measurements or axes needed to describe a position in a coordinate system.

It returns:

  • 2 for a coordinate with x, y;
  • 3 for a coordinate with x, y and z or x, y and m;
  • 4 for a coordinate with x, y, z and m.
Returns
The number of measurements or axes needed to describe a position in a coordinate system.
Note
This is NOT the same as getDimension() method!

◆ getDimension()

virtual Dimensionality te::gm::GeometryCollection::getDimension ( ) const
throw (
)
virtual

For non-homogeneous collections this method will return the largest dimension of the contained objects.

Returns
The largest dimension of the contained objects.

Implements te::gm::Geometry.

Reimplemented in te::gm::MultiSurface, te::gm::MultiCurve, and te::gm::MultiPoint.

◆ getEnvelope()

Geometry* te::gm::Geometry::getEnvelope ( ) const
inherited

It returns the minimum bounding rectangle (MBR) for the geometry.

As one can notice, the mbr is returned as a geometry, actually a polygon defined by the corner points of the bounding box [(MINX, MINY), (MAXX, MINY), (MAXX, MAXY), (MINX, MAXY), (MINX, MINY)].

Returns
The geometry envelope (or mbr).
Note
The caller of this method will take the ownership of the returned geometry.
If the MBR was not computed previously, it will compute it. Successive calls to this method will not compute the mbr anymore.

◆ getGeometries() [1/2]

const std::vector<Geometry*>& te::gm::GeometryCollection::getGeometries ( ) const
inline

It returns a reference to the internal list of geometries.

Returns
A reference to the internal list of geometries.
Note
This method can be used by database drivers to implement its own geometry wrappers!
TerraLib extended method.

Definition at line 207 of file GeometryCollection.h.

◆ getGeometries() [2/2]

std::vector<Geometry*>& te::gm::GeometryCollection::getGeometries ( )
inline

It returns a reference to the internal list of geometries.

Returns
A reference to the internal list of geometries.
Note
This method can be used by database drivers to implement its own geometry wrappers!
TerraLib extended method.

Definition at line 218 of file GeometryCollection.h.

◆ getGeometryN() [1/2]

Geometry* te::gm::GeometryCollection::getGeometryN ( std::size_t  i) const

It returns the n-th geometry in this GeometryCollection.

Parameters
iThe index of the given geometry element.
Returns
The geometry in the indicated position.
Note
It doesn't check the index range.

◆ getGeometryN() [2/2]

Geometry* te::gm::GeometryCollection::getGeometryN ( std::size_t  i)

It returns the n-th geometry in this GeometryCollection.

Parameters
iThe index of the given geometry element.
Note
It doesn't check the index range.

◆ getGeometryType()

virtual const std::string& te::gm::GeometryCollection::getGeometryType ( ) const
throw (
)
virtual

The name of the Geometry subtype is: GeometryCollection.

Returns
The name of the Geometry subtype is: GeometryCollection.

Implements te::gm::Geometry.

Reimplemented in te::gm::MultiPolygon, te::gm::MultiPoint, and te::gm::MultiLineString.

◆ getGeomTypeId() [1/2]

GeomType te::gm::Geometry::getGeomTypeId ( ) const
inlineinherited

It returns the geometry subclass type identifier.

Returns
The geometry subclass type identifier
Note
Please, see GeomType enumeration for possible return values.
TerraLib extended method.

Definition at line 180 of file Geometry.h.

◆ getGeomTypeId() [2/2]

static GeomType te::gm::Geometry::getGeomTypeId ( const std::string &  gtype)
staticinherited

It returns the TerraLib geometry type id given a type string (the type string must be in capital letters).

Parameters
gtypeThe geometry type name.
Returns
The geometry type id equivalent to the string name.
Note
If the type is unknow it returns UnknownGeometryType.

◆ getGeomTypeString()

static std::string te::gm::Geometry::getGeomTypeString ( const int &  gId)
staticinherited

It returns the TerraLib geometry type string given a type id.

Parameters
gIdThe geometry type id.
Returns
The geometry type string equivalent to the id.
Note
If the type is unknow it returns UNKNOWGEOMETRYTYPE.

◆ getMBR()

const Envelope* te::gm::Geometry::getMBR ( ) const
inherited

It returns the minimum bounding rectangle for the geometry in an internal representation.

The mbr can be constructed when reading a geometry from a database or it can be computed internally. So, if the mbr is not already set it will compute it just when this method is called. Successive calls to this method will not compute the mbr anymore.

Returns
The envelope of this geometry (i.e., the minimum bounding rectangle).
Note
It is supposed to be faster and more useful than getting the box as a polygon geometry.
TerraLib extended method.

◆ getNPoints()

std::size_t te::gm::GeometryCollection::getNPoints ( ) const
throw (
)
virtual

it returns the number of points (vertexes) in the geometry.

Returns
The number of points (vertexes) in the geometry.
Note
TerraLib extended method.

Implements te::gm::Geometry.

◆ getNumGeometries()

std::size_t te::gm::GeometryCollection::getNumGeometries ( ) const
inline

It returns the number of geometries in this GeometryCollection.

Returns
The number of geometries in this GeometryCollection.
Note
If you are using this method for a loop, try to create a temporary "const size_t variable" to keep this value; this can optimize your loop.

Definition at line 228 of file GeometryCollection.h.

◆ getSRID()

int te::gm::Geometry::getSRID ( ) const
inlineinherited

It returns the Spatial Reference System ID associated to this geometric object.

This value can be used to identify the associated Spatial Reference System.

Returns
The Spatial Reference System ID associated to this geometric object.
Note
When not set this value will be -1.

Definition at line 240 of file Geometry.h.

Referenced by te::rst::PolygonIterator< T >::getScanLineIntersectionRanges(), te::rst::PolygonIterator< T >::initialize(), and te::rst::LineIterator< T >::LineIterator().

◆ getTypeCode()

int te::gm::Geometry::getTypeCode ( ) const
virtualinherited

It returns the data type code associated to the data value.

Returns
The data type code associated to the data value.

Implements te::dt::AbstractData.

◆ getWkb()

void te::gm::Geometry::getWkb ( char *  wkb,
te::common::MachineByteOrder  byteOrder
) const
inherited

It serializes the geometry to a WKB representation into the specified buffer.

The wkb parameter must have at least getWkbSize() in order to be used. Don't pass a NULL pointer or a buffer smaller than the size needed. Note that the WKB will be on the specified byte order.

Parameters
wkbThe buffer where the Geometry will be serialized.
byteOrderThe byte order used to store/serialize the geometry.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
TerraLib extended method.

◆ getWkbSize()

std::size_t te::gm::Geometry::getWkbSize ( ) const
inherited

It returns the size required by a WKB representation for this geometric object.

This is the preferred method for creating a WKB. First of all, it gives you the possibility to use a pre-allocated buffer. So, this method can be used in conjunction with the getWkb method.

Returns
The size required by a WKB representation for the geometry object.
Note
TerraLib extended method.

◆ intersection()

virtual Geometry* te::gm::Geometry::intersection ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set intersection with another geometry.

Parameters
rhsThe other Geometry whose intersection with this Geometry will be calculated.
Returns
A Geometry representing the intersection with this Geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

Referenced by te::rst::LineIterator< T >::LineIterator().

◆ intersects()

virtual bool te::gm::Geometry::intersects ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object spatially intersects rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry intersects the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ is3D()

bool te::gm::Geometry::is3D ( ) const
inherited

It returns true if this geometric object has z coordinate values.

Returns
True if this geometric object has z coordinate values.

◆ isCollection()

bool te::gm::Geometry::isCollection ( ) const
inherited

It returns true if this geometric object is a collection.

Returns
True if this geometric object is a collection.

◆ isEmpty()

virtual bool te::gm::Geometry::isEmpty ( ) const
virtualinherited

It returns true if this geometric object is the empty Geometry.

If true, then this geometric object represents the empty point set for the coordinate space.

Returns
True if this geometric object is the empty Geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
Performed by GEOS.

◆ isGeomType()

static bool te::gm::Geometry::isGeomType ( const std::string &  stype)
staticinherited

It tells if the given string is a geometry data type.

Parameters
stypeThe geometry type to be checked.
Returns
True if the given string corresponds to a geometry type.

◆ isMeasured()

bool te::gm::Geometry::isMeasured ( ) const
inherited

It returns true if this geometric object has m coordinate values.

Returns
True if this geometric object has m coordinate values.

◆ isSimple()

virtual bool te::gm::Geometry::isSimple ( ) const
virtualinherited

It returns true if this geometric object has no anomalous points, such as self intersection or self tangency.

See the ISO and OGC documentation for an explanation about specific conditions of each type of geometry to be considered not simple.

Returns
True if this geometric object has no anomalous geometric points.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
Performed by GEOS.

◆ isValid()

virtual bool te::gm::Geometry::isValid ( ) const
virtualinherited

It tells if the geometry is well formed.

Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
TerraLib extended method.
Performed by GEOS.

◆ loadGeomTypeId()

static void te::gm::Geometry::loadGeomTypeId ( )
staticinherited

It loads the internal MAP of geometry type names to geometry type ids.

Warning
Ths method will be automatically called when geometry module is initialized!

◆ locateAlong()

virtual Geometry* te::gm::Geometry::locateAlong ( const double &  mValue) const
inlinevirtualinherited

It returns a derived GeometryCollection value according to the specified coordinate value.

Parameters
mValueThe coordinate value.
Returns
A GeometryCollection value.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
This method only applies to Point and Line geometries, including homogeneu collections of points or lines. For polygons this will return a NULL value.

Definition at line 678 of file Geometry.h.

◆ locateBetween()

virtual Geometry* te::gm::Geometry::locateBetween ( const double &  mStart,
const double &  mEnd
) const
virtualinherited

It returns a derived geometry collection value according to the range of coordinate values inclusively.

Parameters
mStartThe initial coordinate value.
mEndThe final coordinate value.
Returns
A GeometryCollection value.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
This method only applies to Point and Line geometries, including homogeneous collections of points or lines. For polygons this will return a NULL value.
The caller of this method will take the ownership of the returned Geometry.

Reimplemented in te::gm::LineString, te::gm::CircularString, te::gm::CompoundCurve, te::gm::MultiPoint, and te::gm::MultiLineString.

◆ operator=()

GeometryCollection& te::gm::GeometryCollection::operator= ( const GeometryCollection rhs)

Assignment operator.

Parameters
rhsThe other geometry.
Returns
A reference for this.

◆ overlaps()

virtual bool te::gm::Geometry::overlaps ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object spatially overlaps rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially overlaps the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ relate() [1/2]

virtual bool te::gm::Geometry::relate ( const Geometry *const  rhs,
const std::string &  matrix
) const
virtualinherited

It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix.

It does this by testing for intersections between the interior, boundary and exterior of the two geometric objects as specified by the values in the matrix.

Parameters
rhsThe other geometry to be compared.
matrixThe intersection matrix.
Returns
True if the geometry is spatially related to the other geometry according to the pattern expressed by the intersection matrix.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ relate() [2/2]

virtual std::string te::gm::Geometry::relate ( const Geometry *const  rhs) const
virtualinherited

It returns the spatial relation between this geometry object and the rhs geometry.

Parameters
rhsThe another geometry to be compared.
Returns
A string where each byte is a intersection in the pattern intersection matrix of the relationship of the two objects.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
TerraLib extended method.
This method will be handy when you don't know the spatial relation in advance.
Performed by GEOS.

◆ removeGeometryN()

void te::gm::GeometryCollection::removeGeometryN ( std::size_t  i)

It removes the n-th geometry in this geometry collection.

Parameters
iThe index of the geometry element we want to remove.
Note
It doesn't check the index range.
TerraLib extended method.

◆ setGeometryN()

void te::gm::GeometryCollection::setGeometryN ( std::size_t  i,
Geometry g
)

It sets the n-th geometry in this geometry collection.

GeometryCollection will take the ownership of the informed geometry. If there is a geometry in the given position it will be released before stting the new one.

Parameters
iThe index of the given geometry element.
gThe geometry that will be placed on the position indicated by index.
Note
It doesn't check the index range.
Geometry collection will take the ownership of the informed geometry.
TerraLib extended method.

◆ setNumGeometries()

void te::gm::GeometryCollection::setNumGeometries ( std::size_t  size)

It sets the number of geometries in this GeometryCollection.

Parameters
sizeThe new number of geometries for the GeometryCollection.
Note
If size is smaller than the current GeometryCollection size, the content is reduced to its first size elements, the rest being just dropped (the deallocation of geometries is done automatically).
If size is greater than the current GeometryCollection size, the content is expanded by inserting at the end NULL pointers to geometries as needed.
You must assure that all nGeom geometries are set before calling any other method (like getMBR).
TerraLib extended method.

◆ setSRID()

void te::gm::GeometryCollection::setSRID ( int  srid)
throw (
)
virtual

It sets the Spatial Reference System ID of the geometry collection and all its parts.

Parameters
sridThe Spatial Reference System ID to be associated to the geometric object.
Note
TerraLib extended method.

Implements te::gm::Geometry.

◆ symDifference()

virtual Geometry* te::gm::Geometry::symDifference ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set symetric difference with another geometry.

Parameters
rhsThe other geometry whose symetric difference with this geometry will be calculated.
Returns
A geometry representing the symetric difference with this geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ toString()

std::string te::gm::Geometry::toString ( void  ) const
inlinevirtualinherited

It returns the data value in a WKT representation.

Returns
The data value in a WKT representation.

Implements te::dt::AbstractData.

Definition at line 936 of file Geometry.h.

◆ touches()

virtual bool te::gm::Geometry::touches ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object spatially touches rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially touches the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ transform()

void te::gm::GeometryCollection::transform ( int  srid)
throw (te::common::Exception
)
virtual

It will transform the coordinates of the geometry collection to the new one.

After calling this method the geometry collection will be associated to the new SRID.

Parameters
sridThe new Spatial Reference System ID used to transform the coordinates of the geometry collection.
Exceptions
ExceptionIt will throw an exception if it can not do the transformation.
Note
The geometry collection must be associated to a valid SRID before calling this method.
If the geometry collection already has an associated MBR, it will automatically update it (i. e. automatically recompute it).
TerraLib extended method.

Implements te::gm::Geometry.

◆ Union()

virtual Geometry* te::gm::Geometry::Union ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set union with another geometry.

Parameters
rhsAnother geometry whose union with this geometry will be calculated.
Returns
A geometry representing the union with this geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ within()

virtual bool te::gm::Geometry::within ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object is spatially within rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry is spatially within the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

Member Data Documentation

◆ m_geometries

std::vector<Geometry*> te::gm::GeometryCollection::m_geometries
protected

The array of geometries that forms the collection.

Definition at line 321 of file GeometryCollection.h.

◆ m_gType

GeomType te::gm::Geometry::m_gType
protectedinherited

Internal geometry type.

Definition at line 942 of file Geometry.h.

◆ m_mbr

Envelope* te::gm::Geometry::m_mbr
mutableprotectedinherited

The geometry minimum bounding rectangle.

Definition at line 944 of file Geometry.h.

◆ m_srid

int te::gm::Geometry::m_srid
protectedinherited

The Spatial Reference System code associated to the Geometry.

Definition at line 943 of file Geometry.h.

◆ sm_geomTypeMap

std::map<std::string, GeomType> te::gm::Geometry::sm_geomTypeMap
staticprotectedinherited

A set of geometry type names (in UPPER CASE).

Definition at line 946 of file Geometry.h.

◆ sm_typeName

const std::string te::gm::GeometryCollection::sm_typeName
staticprivate

Geometry type name for GeometryCollection.

Definition at line 325 of file GeometryCollection.h.


The documentation for this class was generated from the following file:
