te::gm::TIN Class Referenceabstract

TIN (triangulated irregular network) is a PolyhedralSurface consisting only of Triangle patches. More...

#include <TIN.h>

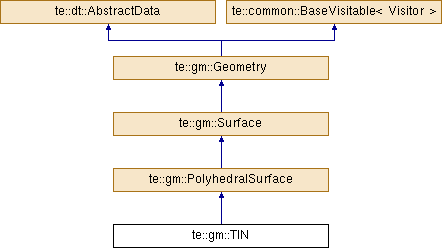

Inheritance diagram for te::gm::TIN:
te::gm::PolyhedralSurface te::gm::Surface te::gm::Geometry te::dt::AbstractData te::common::BaseVisitable< Visitor >

Public Types

typedef void ReturnType

typedef Visitor VisitorType


Public Member Functions

virtual ReturnType accept (VisitorType &guest) const=0
 It call the visit method from the guest object. More...

void add (te::gm::Polygon *g)
 It adds the triangle into the TIN. More...

void setGeometryN (std::size_t i, te::gm::Polygon *g)
 It sets the n-th triangle in this TIN. More...

Initializer methods on geometric objects

Methods for initializing a geometric object.

 TIN (std::size_t nPolygons, GeomType t, int srid=0, Envelope *mbr=0)
 It initializes the TIN with the specified spatial reference system id and envelope. More...

 TIN (const TIN &rhs)
 Copy constructor. More...

 ~TIN ()
 Destructor. More...

TINoperator= (const TIN &rhs)
 Assignment operator. More...

Re-Implmentation of methods from Geometry class

Re-Implmentation of basic methods from Geometry class.

const std::string & getGeometryType () const throw ()
 It returns the name of the instantiable subtype of Geometry of which this geometric object is an instantiable member. More...

Re-Implementation from AbstractData

Methods re-Implementated from AbstractData.

virtual te::dt::AbstractDataclone () const
 It clones the linestring. More...

PolyhedralSurface Specific Methods

Specific methods for a PolyhedralSurface.

std::size_t getNumPatches () const
 It returns the number of including polygons. More...

void setNumPatches (std::size_t size)
 It sets the number of including polygons. More...

PolygongetPatchN (std::size_t i) const
 It returns a polygon in this surface, the order is arbitrary. More...

void setPatchN (std::size_t i, Polygon *p)
 It sets the informed position polygon to the new one. More...

MultiPolygongetBoundingPolygons (const Polygon *p) const
 It returns the collection of polygons in this surface that bounds the given polygon "p" for any polygon "p" in the surface. More...

bool isClosed () const
 It returns true if the polygon closes on itself, and thus has no boundary and encloses a solid. More...

Re-Implmentation of methods from surface class

Re-Implmentation of basic methods from surface class.

double getArea () const
 It returns the area of this surface, as measured in the spatial reference system of this surface. More...

PointgetCentroid () const
 It returns the mathematical centroid for this surface as a point. More...

Coord2DgetCentroidCoord () const
 It returns the mathematical centroid for this surface as a coordinate. More...

PointgetPointOnSurface () const
 It returns a point guaranteed to be on this surface. More...

Coord2DgetCoordOnSurface () const
 It returns a coordinate guaranteed to be on this surface. More...

double getPerimeter () const
 It returns the length of the boundary for the surface. More...

Re-Implmentation of methods from Geometry class

Re-Implmentation of basic methods from Geometry class.

void setSRID (int srid) throw ()
 It sets the Spatial Reference System ID of the Geometry and all its parts if it is a GeometryCollection (or a Multi). More...

void transform (int srid) throw (te::common::Exception)
 It will transform the coordinates of the Geometry to the new one. More...

void computeMBR (bool cascade) const throw ()
 It computes the minimum bounding rectangle for the Geometry. More...

std::size_t getNPoints () const throw ()
 it returns the number of points (vertexes) in the geometry. More...

Re-Implmentation of methods from Geometry class

Re-Implmentation of basic methods from Geometry class.

Dimensionality getDimension () const throw ()
 Surfaces are 2-dimensional objects. More...

Basic Geometry Methods

Basic methods on geometric objects.

int getCoordinateDimension () const _NOEXCEPT_OP(true)
 It returns the number of measurements or axes needed to describe a position in a coordinate system. More...

GeomType getGeomTypeId () const _NOEXCEPT_OP(true)
 It returns the geometry subclass type identifier. More...

virtual const std::string get2DGeometryType () const _NOEXCEPT_OP(true)
 It returns the name of 2D geometry subclass. More...

virtual GeomType get2DGeomTypeId () const _NOEXCEPT_OP(true)
 It returns the 2D geometry subclass type identifier. More...

int getSRID () const _NOEXCEPT_OP(true)
 It returns the Spatial Reference System ID associated to this geometric object. More...

GeometrygetEnvelope () const _NOEXCEPT_OP(true)
 It returns the minimum bounding rectangle (MBR) for the geometry. More...

const EnvelopegetMBR () const _NOEXCEPT_OP(true)
 It returns the minimum bounding rectangle for the geometry in an internal representation. More...

std::string asText () const _NOEXCEPT_OP(true)
 It returns an string with the Well-Known Text Representation for the geometry. More...

char * asBinary (std::size_t &size) const _NOEXCEPT_OP(false)
 It serializes the geometric object to a Well-known Binary Representation (WKB). More...

std::size_t getWkbSize () const _NOEXCEPT_OP(true)
 It returns the size required by a WKB representation for this geometric object. More...

void getWkb (char *wkb, te::common::MachineByteOrder byteOrder) const _NOEXCEPT_OP(false)
 It serializes the geometry to a WKB representation into the specified buffer. More...

virtual bool isEmpty () const _NOEXCEPT_OP(false)
 It returns true if this geometric object is the empty Geometry. More...

virtual bool isSimple () const _NOEXCEPT_OP(false)
 It returns true if this geometric object has no anomalous points, such as self intersection or self tangency. More...

virtual bool isValid () const _NOEXCEPT_OP(false)
 It tells if the geometry is well formed. More...

bool is3D () const _NOEXCEPT_OP(true)
 It returns true if this geometric object has z coordinate values. More...

bool isMeasured () const _NOEXCEPT_OP(true)
 It returns true if this geometric object has m coordinate values. More...

bool isCollection () const _NOEXCEPT_OP(true)
 It returns true if this geometric object is a collection. More...

virtual GeometrygetBoundary () const _NOEXCEPT_OP(false)
 It returns the geometry boundary. More...

Spatial Relations

Methods for testing spatial relations between geometric objects.

Please, see OGC specification for a in depth definition of each spatial operation.

virtual bool equals (const Geometry *const rhs, const bool exact=false) const _NOEXCEPT_OP(false)
 It returns true if the geometry object is spatially equal to rhs geometry. More...

virtual bool disjoint (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object is spatially disjoint from rhs geometry. More...

virtual bool intersects (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object spatially intersects rhs geometry. More...

virtual bool touches (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object spatially touches rhs geometry. More...

virtual bool crosses (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object spatially crosses rhs geometry. More...

virtual bool within (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if the geometry object is spatially within rhs geometry. More...

virtual bool contains (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object spatially contains rhs geometry. More...

virtual bool overlaps (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object spatially overlaps rhs geometry. More...

virtual bool relate (const Geometry *const rhs, const std::string &matrix) const _NOEXCEPT_OP(false)
 It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix. More...

virtual std::string relate (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns the spatial relation between this geometry object and the rhs geometry. More...

virtual bool covers (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object spatially covers the rhs geometry. More...

virtual bool coveredBy (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns true if this geometry object is spatially covered by rhs geometry. More...

virtual GeometrylocateAlong (const double &mValue) const _NOEXCEPT_OP(false)
 It returns a derived GeometryCollection value according to the specified coordinate value. More...

virtual GeometrylocateBetween (const double &mStart, const double &mEnd) const _NOEXCEPT_OP(false)
 It returns a derived geometry collection value according to the range of coordinate values inclusively. More...

Spatial Analysis

Methods that support spatial analysis.

virtual double distance (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns the shortest distance between any two points in the two geometry objects. More...

virtual Geometrybuffer (const double &distance) const _NOEXCEPT_OP(false)
 This method calculates the buffer of a geometry. More...

virtual Geometrybuffer (const double &distance, int quadrantSegments) const _NOEXCEPT_OP(false)
 This method calculates the buffer of a geometry. More...

virtual Geometrybuffer (const double &distance, int quadrantSegments, BufferCapStyle endCapStyle) const _NOEXCEPT_OP(false)
 This method calculates the buffer of a geometry. More...

virtual GeometryconvexHull () const _NOEXCEPT_OP(false)
 This method calculates the Convex Hull of a geometry. More...

virtual Geometryintersection (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set intersection with another geometry. More...

virtual GeometryUnion (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set union with another geometry. More...

virtual Geometrydifference (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set difference with another geometry. More...

virtual GeometrysymDifference (const Geometry *const rhs) const _NOEXCEPT_OP(false)
 It returns a geometric object that represents the point set symetric difference with another geometry. More...

virtual bool dWithin (const Geometry *const rhs, const double &distance) const _NOEXCEPT_OP(false)
 It returns true if the geometries are within the specified distance. More...

AbstractData Re-implementation

Methods re-implemneted from AbstractData.

int getTypeCode () const
 It returns the data type code associated to the data value. More...

std::string toString () const
 It returns the data value in a WKT representation. More...


Static Public Member Functions

Auxiliary Methods

Auxiliary Methods.

static GeomType getGeomTypeId (const std::string &gtype)
 It returns the TerraLib geometry type id given a type string (the type string must be in capital letters). More...

static std::string getGeomTypeString (const int &gId)
 It returns the TerraLib geometry type string given a type id. More...

static bool isGeomType (const std::string &stype)
 It tells if the given string is a geometry data type. More...

static void loadGeomTypeId ()
 It loads the internal MAP of geometry type names to geometry type ids. More...


Protected Attributes

GeomType m_gType
 Internal geometry type. More...

Envelopem_mbr
 The geometry minimum bounding rectangle. More...

std::vector< Polygon * > m_polygons
 An array with the polygon list. More...

int m_srid
 The Spatial Reference System code associated to the Geometry. More...


Static Protected Attributes

static std::map< std::string, GeomTypesm_geomTypeMap
 A set of geometry type names (in UPPER CASE). More...


Static Private Attributes

static const std::string sm_typeName
 Geometry type name for TIN. More...


Detailed Description

TIN (triangulated irregular network) is a PolyhedralSurface consisting only of Triangle patches.

See also
Geometry, Point, Curve, LineString, LinearRing, Surface, Polygon, Triangle, PolyhedralSurface GeometryCollection, MultiSurface, MultiCurve, MultiPoint, MultiLineString, MultiPolygon

Definition at line 50 of file TIN.h.

Member Typedef Documentation

◆ ReturnType

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType
inherited

Definition at line 58 of file BaseVisitable.h.

◆ VisitorType

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType
inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

◆ TIN() [1/2]

te::gm::TIN::TIN ( std::size_t  nPolygons,
GeomType  t,
int  srid = 0,
Envelope mbr = 0
)

It initializes the TIN with the specified spatial reference system id and envelope.

Parameters
nPolygonsThe number of polygons forming the polyhedral.
tThe internal type of the TIN.
sridThe Spatial Reference System ID associated to the Geometry.
mbrThe minimum bounding rectangle of this geometry (i.e., its envelope).
Note
The TIN will take the ownership of the given mbr.

◆ TIN() [2/2]

te::gm::TIN::TIN ( const TIN rhs)

Copy constructor.

Parameters
rhsThe other geometry.

◆ ~TIN()

te::gm::TIN::~TIN ( )
inline

Destructor.

Definition at line 81 of file TIN.h.

Member Function Documentation

◆ accept()

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType guest) const
pure virtualinherited

It call the visit method from the guest object.

Parameters
guestThe guest or visitor.
Returns
Any valid value define by the template type R.

◆ add()

void te::gm::TIN::add ( te::gm::Polygon g)

It adds the triangle into the TIN.

Parameters
gThe geometry you want to add to the TIN.
Note
TerraLib extended method.

◆ asBinary()

char* te::gm::Geometry::asBinary ( std::size_t &  size) const
inherited

It serializes the geometric object to a Well-known Binary Representation (WKB).

Parameters
sizeThe size in bytes of the returned WKB.
Returns
The WKB representation for this object.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
The WKB will be on machine byte order.
The caller of this method will take the ownership of the returned wkb. You must use "delete [] pointer" in order to free the memory pointed by returned pointer.

◆ asText()

std::string te::gm::Geometry::asText ( ) const
inherited

It returns an string with the Well-Known Text Representation for the geometry.

Returns
The WKT for the Geometry.

◆ buffer() [1/3]

virtual Geometry* te::gm::Geometry::buffer ( const double &  distance) const
virtualinherited

This method calculates the buffer of a geometry.

Parameters
distanceDistance value.
Returns
A geometry representing all points less than or equal to the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
Performed by GEOS.

◆ buffer() [2/3]

virtual Geometry* te::gm::Geometry::buffer ( const double &  distance,
int  quadrantSegments
) const
virtualinherited

This method calculates the buffer of a geometry.

Parameters
distanceDistance value.
quadrantSegmentsA specified number of segments used to approximate the curves.
Returns
A geometry representing all points less than or equal to the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
TerraLib extended method.
Performed by GEOS.

◆ buffer() [3/3]

virtual Geometry* te::gm::Geometry::buffer ( const double &  distance,
int  quadrantSegments,
BufferCapStyle  endCapStyle
) const
virtualinherited

This method calculates the buffer of a geometry.

As in GEOS, the quadrantSegments argument allows controlling the accuracy of the approximation by specifying the number of line segments used to represent a quadrant of a circle.

Parameters
distanceDistance value.
quadrantSegmentsA specified number of segments used to approximate the curves.
endCapStyleIt specifies the shape used at the ends of linestrings.
Returns
A geometry representing all points less than or equal to the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned Geometry.
TerraLib extended method.
Performed by GEOS.

◆ clone()

virtual te::dt::AbstractData* te::gm::PolyhedralSurface::clone ( ) const
virtualinherited

It clones the linestring.

Returns
A copy of the given linestring.
Note
The caller of this method will take the ownership of the returned linestring.
The cloned linestring will not have the MBR computed. This will save time when you are just cloning a geometry and don't intend to waste time computing the bounding box. If you have another suggestion, please, let me know.

Implements te::dt::AbstractData.

◆ computeMBR()

void te::gm::PolyhedralSurface::computeMBR ( bool  cascade) const
throw (
)
virtualinherited

It computes the minimum bounding rectangle for the Geometry.

Parameters
cascadeIf true, it will update the MBR of its parts.
Note
You can use this method in order to update the MBR of the Geometry.
TerraLib extended method.

Implements te::gm::Geometry.

◆ contains()

virtual bool te::gm::Geometry::contains ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object spatially contains rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially contains the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ convexHull()

virtual Geometry* te::gm::Geometry::convexHull ( ) const
virtualinherited

This method calculates the Convex Hull of a geometry.

Returns
A geometry representing the convex hull.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
Performed by GEOS.

Referenced by te::rp::GetTPConvexHullArea().

◆ coveredBy()

virtual bool te::gm::Geometry::coveredBy ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object is spatially covered by rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry is spatially covered by the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
TerraLib extended method.
This is not the same as within. See Max Egenhofer paper on 9-intersection matrix.
Performed by GEOS.

◆ covers()

virtual bool te::gm::Geometry::covers ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object spatially covers the rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially covers the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
TerraLib extended method.
This is not the same as contains. See Max Egenhofer paper on 9-intersection matrix.
Performed by GEOS.

◆ crosses()

virtual bool te::gm::Geometry::crosses ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object spatially crosses rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially crosses the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ difference()

virtual Geometry* te::gm::Geometry::difference ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set difference with another geometry.

Parameters
rhsAnother geometry whose difference with this geometry will be calculated.
Returns
A geometry representing the difference between the geometries.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ disjoint()

virtual bool te::gm::Geometry::disjoint ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object is spatially disjoint from rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry is spatially disjoint from the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ distance()

virtual double te::gm::Geometry::distance ( const Geometry *const  rhs) const
virtualinherited

It returns the shortest distance between any two points in the two geometry objects.

Parameters
rhsThe other geometry.
Returns
The shortest distance between any two points in the two geometries.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
Performed by GEOS.

Referenced by te::gm::DistanceOrderFunctor::operator()().

◆ dWithin()

virtual bool te::gm::Geometry::dWithin ( const Geometry *const  rhs,
const double &  distance
) const
virtualinherited

It returns true if the geometries are within the specified distance.

Parameters
rhsThe other geometry whose symetric difference with this geometry will be calculated.
distanceThe distance.
Returns
True if the geometries are within the specified distance.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
TerraLib extended method.
Performed by GEOS.

◆ equals()

virtual bool te::gm::Geometry::equals ( const Geometry *const  rhs,
const bool  exact = false
) const
virtualinherited

It returns true if the geometry object is spatially equal to rhs geometry.

Parameters
rhsThe another geometry to be compared.
exactIf true checks if this geometric object has the same vertexes in the same order of rhs geometry.
Returns
True if the geometry is spatially equal to the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise an exception will be thrown.
Note
Performed by GEOS.

◆ get2DGeometryType()

virtual const std::string te::gm::Geometry::get2DGeometryType ( ) const
virtualinherited

It returns the name of 2D geometry subclass.

The name of the 2D geometry subclass may be one of the following:

Returns
The name of the geometry subclass type ide.

◆ get2DGeomTypeId()

virtual GeomType te::gm::Geometry::get2DGeomTypeId ( ) const
virtualinherited

It returns the 2D geometry subclass type identifier.

  • GeometryType = 0
  • PointType = 1
  • LineStringType = 2
  • PolygonType = 3
  • MultiPointType = 4
  • MultiLineStringType = 5
  • MultiPolygonType = 6
  • GeometryCollectionType = 7
  • CircularStringType = 8
  • CompoundCurveType = 9
  • CurvePolygonType = 10
  • MultiSurfaceType = 12
Returns
The 2D geometry subclass type identifier
Note
Please, see GeomType enumeration for possible return values.
TerraLib extended method.

◆ getArea()

double te::gm::PolyhedralSurface::getArea ( ) const
inlinevirtualinherited

It returns the area of this surface, as measured in the spatial reference system of this surface.

Returns
The area of this surface.

Implements te::gm::Surface.

Definition at line 207 of file PolyhedralSurface.h.

◆ getBoundary()

virtual Geometry* te::gm::Geometry::getBoundary ( ) const
virtualinherited

It returns the geometry boundary.

Returns
The geometry that makes the boundary of this geometry. The caller of this method will take the ownership of the returned geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ getBoundingPolygons()

MultiPolygon* te::gm::PolyhedralSurface::getBoundingPolygons ( const Polygon p) const
inherited

It returns the collection of polygons in this surface that bounds the given polygon "p" for any polygon "p" in the surface.

Parameters
pThe bounding Polygon.
Returns
The collection of polygons in this surface that bounds the given polygon "p" for any polygon "p" in the surface.
Note
The caller of this method will take the ownership of the returned geometry.

◆ getCentroid()

Point* te::gm::PolyhedralSurface::getCentroid ( ) const
inlinevirtualinherited

It returns the mathematical centroid for this surface as a point.

Returns
The mathematical centroid for this surface.
Note
The caller of this method will take the ownership of the returned point.
The result is not guaranteed to be on this Surface.

Implements te::gm::Surface.

Definition at line 221 of file PolyhedralSurface.h.

◆ getCentroidCoord()

Coord2D* te::gm::PolyhedralSurface::getCentroidCoord ( ) const
inlinevirtualinherited

It returns the mathematical centroid for this surface as a coordinate.

Returns
The mathematical centroid for this surface.
Note
The caller of this method will take the ownership of the returned coordinate.
The result is not guaranteed to be on this Surface.
TerraLib extended method.

Implements te::gm::Surface.

Definition at line 237 of file PolyhedralSurface.h.

◆ getCoordinateDimension()

int te::gm::Geometry::getCoordinateDimension ( ) const
inherited

It returns the number of measurements or axes needed to describe a position in a coordinate system.

It returns:

  • 2 for a coordinate with x, y;
  • 3 for a coordinate with x, y and z or x, y and m;
  • 4 for a coordinate with x, y, z and m.
Returns
The number of measurements or axes needed to describe a position in a coordinate system.
Note
This is NOT the same as getDimension() method!

◆ getCoordOnSurface()

Coord2D* te::gm::PolyhedralSurface::getCoordOnSurface ( ) const
inlinevirtualinherited

It returns a coordinate guaranteed to be on this surface.

Returns
A point guaranteed to be on this surface.
Note
The caller of this method will take the ownership of the returned coordinate.
TerraLib extended method.

Implements te::gm::Surface.

Definition at line 263 of file PolyhedralSurface.h.

◆ getDimension()

Dimensionality te::gm::Surface::getDimension ( ) const
throw (
)
virtualinherited

Surfaces are 2-dimensional objects.

Returns
2-dimensional.

Implements te::gm::Geometry.

◆ getEnvelope()

Geometry* te::gm::Geometry::getEnvelope ( ) const
inherited

It returns the minimum bounding rectangle (MBR) for the geometry.

As one can notice, the mbr is returned as a geometry, actually a polygon defined by the corner points of the bounding box [(MINX, MINY), (MAXX, MINY), (MAXX, MAXY), (MINX, MAXY), (MINX, MINY)].

Returns
The geometry envelope (or mbr).
Note
The caller of this method will take the ownership of the returned geometry.
If the MBR was not computed previously, it will compute it. Successive calls to this method will not compute the mbr anymore.

◆ getGeometryType()

const std::string& te::gm::TIN::getGeometryType ( ) const
throw (
)
virtual

It returns the name of the instantiable subtype of Geometry of which this geometric object is an instantiable member.

The name of the Geometry subtype for PolyhedralSurface is: Tin.

Returns
The name of the instantiable subtype of Geometry of which this geometric object is an instantiable member. In this case, it returns Polygon.

Reimplemented from te::gm::PolyhedralSurface.

◆ getGeomTypeId() [1/2]

GeomType te::gm::Geometry::getGeomTypeId ( ) const
inlineinherited

It returns the geometry subclass type identifier.

Returns
The geometry subclass type identifier
Note
Please, see GeomType enumeration for possible return values.
TerraLib extended method.

Definition at line 180 of file Geometry.h.

◆ getGeomTypeId() [2/2]

static GeomType te::gm::Geometry::getGeomTypeId ( const std::string &  gtype)
staticinherited

It returns the TerraLib geometry type id given a type string (the type string must be in capital letters).

Parameters
gtypeThe geometry type name.
Returns
The geometry type id equivalent to the string name.
Note
If the type is unknow it returns UnknownGeometryType.

◆ getGeomTypeString()

static std::string te::gm::Geometry::getGeomTypeString ( const int &  gId)
staticinherited

It returns the TerraLib geometry type string given a type id.

Parameters
gIdThe geometry type id.
Returns
The geometry type string equivalent to the id.
Note
If the type is unknow it returns UNKNOWGEOMETRYTYPE.

◆ getMBR()

const Envelope* te::gm::Geometry::getMBR ( ) const
inherited

It returns the minimum bounding rectangle for the geometry in an internal representation.

The mbr can be constructed when reading a geometry from a database or it can be computed internally. So, if the mbr is not already set it will compute it just when this method is called. Successive calls to this method will not compute the mbr anymore.

Returns
The envelope of this geometry (i.e., the minimum bounding rectangle).
Note
It is supposed to be faster and more useful than getting the box as a polygon geometry.
TerraLib extended method.

◆ getNPoints()

std::size_t te::gm::PolyhedralSurface::getNPoints ( ) const
throw (
)
virtualinherited

it returns the number of points (vertexes) in the geometry.

Returns
The number of points (vertexes) in the geometry.
Note
TerraLib extended method.

Implements te::gm::Geometry.

◆ getNumPatches()

std::size_t te::gm::PolyhedralSurface::getNumPatches ( ) const
inlineinherited

It returns the number of including polygons.

Returns
The number of including polygons.

Definition at line 133 of file PolyhedralSurface.h.

◆ getPatchN()

Polygon* te::gm::PolyhedralSurface::getPatchN ( std::size_t  i) const
inherited

It returns a polygon in this surface, the order is arbitrary.

Parameters
iThe index of the polygon component.
Returns
A polygon in this surface, the order is arbitrary.
Note
It doesn't check the index range.

◆ getPerimeter()

double te::gm::PolyhedralSurface::getPerimeter ( ) const
virtualinherited

It returns the length of the boundary for the surface.

Returns
The length of the boundary for the surface.

Implements te::gm::Surface.

◆ getPointOnSurface()

Point* te::gm::PolyhedralSurface::getPointOnSurface ( ) const
inlinevirtualinherited

It returns a point guaranteed to be on this surface.

Returns
A point guaranteed to be on this surface.
Note
The caller of this method will take the ownership of the returned point.

Implements te::gm::Surface.

Definition at line 249 of file PolyhedralSurface.h.

◆ getSRID()

int te::gm::Geometry::getSRID ( ) const
inlineinherited

It returns the Spatial Reference System ID associated to this geometric object.

This value can be used to identify the associated Spatial Reference System.

Returns
The Spatial Reference System ID associated to this geometric object.
Note
When not set this value will be -1.

Definition at line 240 of file Geometry.h.

Referenced by te::rst::PolygonIterator< T >::getScanLineIntersectionRanges(), te::rst::PolygonIterator< T >::initialize(), and te::rst::LineIterator< T >::LineIterator().

◆ getTypeCode()

int te::gm::Geometry::getTypeCode ( ) const
virtualinherited

It returns the data type code associated to the data value.

Returns
The data type code associated to the data value.

Implements te::dt::AbstractData.

◆ getWkb()

void te::gm::Geometry::getWkb ( char *  wkb,
te::common::MachineByteOrder  byteOrder
) const
inherited

It serializes the geometry to a WKB representation into the specified buffer.

The wkb parameter must have at least getWkbSize() in order to be used. Don't pass a NULL pointer or a buffer smaller than the size needed. Note that the WKB will be on the specified byte order.

Parameters
wkbThe buffer where the Geometry will be serialized.
byteOrderThe byte order used to store/serialize the geometry.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
TerraLib extended method.

◆ getWkbSize()

std::size_t te::gm::Geometry::getWkbSize ( ) const
inherited

It returns the size required by a WKB representation for this geometric object.

This is the preferred method for creating a WKB. First of all, it gives you the possibility to use a pre-allocated buffer. So, this method can be used in conjunction with the getWkb method.

Returns
The size required by a WKB representation for the geometry object.
Note
TerraLib extended method.

◆ intersection()

virtual Geometry* te::gm::Geometry::intersection ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set intersection with another geometry.

Parameters
rhsThe other Geometry whose intersection with this Geometry will be calculated.
Returns
A Geometry representing the intersection with this Geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

Referenced by te::rst::LineIterator< T >::LineIterator().

◆ intersects()

virtual bool te::gm::Geometry::intersects ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object spatially intersects rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry intersects the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ is3D()

bool te::gm::Geometry::is3D ( ) const
inherited

It returns true if this geometric object has z coordinate values.

Returns
True if this geometric object has z coordinate values.

◆ isClosed()

bool te::gm::PolyhedralSurface::isClosed ( ) const
inlineinherited

It returns true if the polygon closes on itself, and thus has no boundary and encloses a solid.

Returns
True if the polygon closes on itself, and thus has no boundary and encloses a solid.

Definition at line 190 of file PolyhedralSurface.h.

◆ isCollection()

bool te::gm::Geometry::isCollection ( ) const
inherited

It returns true if this geometric object is a collection.

Returns
True if this geometric object is a collection.

◆ isEmpty()

virtual bool te::gm::Geometry::isEmpty ( ) const
virtualinherited

It returns true if this geometric object is the empty Geometry.

If true, then this geometric object represents the empty point set for the coordinate space.

Returns
True if this geometric object is the empty Geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
Performed by GEOS.

◆ isGeomType()

static bool te::gm::Geometry::isGeomType ( const std::string &  stype)
staticinherited

It tells if the given string is a geometry data type.

Parameters
stypeThe geometry type to be checked.
Returns
True if the given string corresponds to a geometry type.

◆ isMeasured()

bool te::gm::Geometry::isMeasured ( ) const
inherited

It returns true if this geometric object has m coordinate values.

Returns
True if this geometric object has m coordinate values.

◆ isSimple()

virtual bool te::gm::Geometry::isSimple ( ) const
virtualinherited

It returns true if this geometric object has no anomalous points, such as self intersection or self tangency.

See the ISO and OGC documentation for an explanation about specific conditions of each type of geometry to be considered not simple.

Returns
True if this geometric object has no anomalous geometric points.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
Performed by GEOS.

◆ isValid()

virtual bool te::gm::Geometry::isValid ( ) const
virtualinherited

It tells if the geometry is well formed.

Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Note
TerraLib extended method.
Performed by GEOS.

◆ loadGeomTypeId()

static void te::gm::Geometry::loadGeomTypeId ( )
staticinherited

It loads the internal MAP of geometry type names to geometry type ids.

Warning
Ths method will be automatically called when geometry module is initialized!

◆ locateAlong()

virtual Geometry* te::gm::Geometry::locateAlong ( const double &  mValue) const
inlinevirtualinherited

It returns a derived GeometryCollection value according to the specified coordinate value.

Parameters
mValueThe coordinate value.
Returns
A GeometryCollection value.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
The caller of this method will take the ownership of the returned geometry.
This method only applies to Point and Line geometries, including homogeneu collections of points or lines. For polygons this will return a NULL value.

Definition at line 678 of file Geometry.h.

◆ locateBetween()

virtual Geometry* te::gm::Geometry::locateBetween ( const double &  mStart,
const double &  mEnd
) const
virtualinherited

It returns a derived geometry collection value according to the range of coordinate values inclusively.

Parameters
mStartThe initial coordinate value.
mEndThe final coordinate value.
Returns
A GeometryCollection value.
Exceptions
ExceptionIt will throw an exception if the operation could not be performed.
Note
This method only applies to Point and Line geometries, including homogeneous collections of points or lines. For polygons this will return a NULL value.
The caller of this method will take the ownership of the returned Geometry.

Reimplemented in te::gm::LineString, te::gm::CircularString, te::gm::CompoundCurve, te::gm::MultiPoint, and te::gm::MultiLineString.

◆ operator=()

TIN& te::gm::TIN::operator= ( const TIN rhs)

Assignment operator.

Parameters
rhsThe other geometry.
Returns
A reference for this.

◆ overlaps()

virtual bool te::gm::Geometry::overlaps ( const Geometry *const  rhs) const
virtualinherited

It returns true if this geometry object spatially overlaps rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially overlaps the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ relate() [1/2]

virtual bool te::gm::Geometry::relate ( const Geometry *const  rhs,
const std::string &  matrix
) const
virtualinherited

It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix.

It does this by testing for intersections between the interior, boundary and exterior of the two geometric objects as specified by the values in the matrix.

Parameters
rhsThe other geometry to be compared.
matrixThe intersection matrix.
Returns
True if the geometry is spatially related to the other geometry according to the pattern expressed by the intersection matrix.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ relate() [2/2]

virtual std::string te::gm::Geometry::relate ( const Geometry *const  rhs) const
virtualinherited

It returns the spatial relation between this geometry object and the rhs geometry.

Parameters
rhsThe another geometry to be compared.
Returns
A string where each byte is a intersection in the pattern intersection matrix of the relationship of the two objects.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
TerraLib extended method.
This method will be handy when you don't know the spatial relation in advance.
Performed by GEOS.

◆ setGeometryN()

void te::gm::TIN::setGeometryN ( std::size_t  i,
te::gm::Polygon g
)

It sets the n-th triangle in this TIN.

Parameters
iThe index of the given polygon element.
gThe polygon that will be placed on the position indicated by index.
Note
It doesn't check the index range.
TerraLib extended method.

◆ setNumPatches()

void te::gm::PolyhedralSurface::setNumPatches ( std::size_t  size)
inherited

It sets the number of including polygons.

If the new size is less than the old it will drop the geometries.

Parameters
sizeThe number of polygons for the PolyhedralSurface.
Note
TerraLib extended method.

◆ setPatchN()

void te::gm::PolyhedralSurface::setPatchN ( std::size_t  i,
Polygon p
)
inherited

It sets the informed position polygon to the new one.

Parameters
iThe polygon index.
pThe new polygon to be placed in the informed position.
Note
The polygon index start at 0.
It doesn't check the index range.
TerraLib extended method.

◆ setSRID()

void te::gm::PolyhedralSurface::setSRID ( int  srid)
throw (
)
virtualinherited

It sets the Spatial Reference System ID of the Geometry and all its parts if it is a GeometryCollection (or a Multi).

Parameters
sridThe Spatial Reference System ID to be associated to the geometric object.
Note
TerraLib extended method.

Implements te::gm::Geometry.

◆ symDifference()

virtual Geometry* te::gm::Geometry::symDifference ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set symetric difference with another geometry.

Parameters
rhsThe other geometry whose symetric difference with this geometry will be calculated.
Returns
A geometry representing the symetric difference with this geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ toString()

std::string te::gm::Geometry::toString ( void  ) const
inlinevirtualinherited

It returns the data value in a WKT representation.

Returns
The data value in a WKT representation.

Implements te::dt::AbstractData.

Definition at line 936 of file Geometry.h.

◆ touches()

virtual bool te::gm::Geometry::touches ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object spatially touches rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry spatially touches the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

◆ transform()

void te::gm::PolyhedralSurface::transform ( int  srid)
throw (te::common::Exception
)
virtualinherited

It will transform the coordinates of the Geometry to the new one.

After calling this method the Geometry will be associated to the new SRID.

Parameters
sridThe new Spatial Reference System ID used to transform the coordinates of the Geometry.
Exceptions
ExceptionIt will throw an exception if it can not do the transformation.
Note
The Geometry must be associated to a valid SRID before calling this method.
If the geometry already has an associated MBR, it will automatically update it (i. e. automatically recompute it).
TerraLib extended method.

Implements te::gm::Geometry.

◆ Union()

virtual Geometry* te::gm::Geometry::Union ( const Geometry *const  rhs) const
virtualinherited

It returns a geometric object that represents the point set union with another geometry.

Parameters
rhsAnother geometry whose union with this geometry will be calculated.
Returns
A geometry representing the union with this geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
The caller of this method will take the ownership of the returned Geometry.
Performed by GEOS.

◆ within()

virtual bool te::gm::Geometry::within ( const Geometry *const  rhs) const
virtualinherited

It returns true if the geometry object is spatially within rhs geometry.

Parameters
rhsThe other geometry to be compared.
Returns
True if the geometry is spatially within the other geometry.
Exceptions
std::exceptionIt will throw an exception if the operation could not be performed.
Warning
Don't call this method for a Heterogeneous GeometryCollection, otherwise, an exception will be thrown.
Note
Performed by GEOS.

Member Data Documentation

◆ m_gType

GeomType te::gm::Geometry::m_gType
protectedinherited

Internal geometry type.

Definition at line 942 of file Geometry.h.

◆ m_mbr

Envelope* te::gm::Geometry::m_mbr
mutableprotectedinherited

The geometry minimum bounding rectangle.

Definition at line 944 of file Geometry.h.

◆ m_polygons

std::vector<Polygon*> te::gm::PolyhedralSurface::m_polygons
protectedinherited

An array with the polygon list.

Definition at line 339 of file PolyhedralSurface.h.

◆ m_srid

int te::gm::Geometry::m_srid
protectedinherited

The Spatial Reference System code associated to the Geometry.

Definition at line 943 of file Geometry.h.

◆ sm_geomTypeMap

std::map<std::string, GeomType> te::gm::Geometry::sm_geomTypeMap
staticprotectedinherited

A set of geometry type names (in UPPER CASE).

Definition at line 946 of file Geometry.h.

◆ sm_typeName

const std::string te::gm::TIN::sm_typeName
staticprivate

Geometry type name for TIN.

Definition at line 133 of file TIN.h.


The documentation for this class was generated from the following file:
