te::mnt::ProfileTools Class Reference

#include <ProfileTools.h>

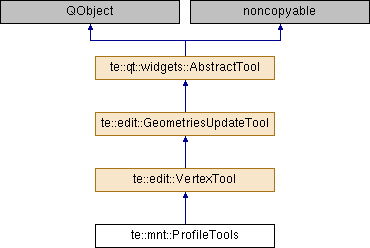

Inheritance diagram for te::mnt::ProfileTools:

Public Types
enum	StageType {   FEATURE_SELECTION, VERTEX_SEARCH, VERTEX_FOUND, VERTEX_MOVING,   VERTEX_READY_TO_ADD }
	Defines the operation stage to this tool. More...

Signals
void	geometriesEdited ()
void	geometriesStarted ()
void	toolDeleted ()

Public Member Functions
void	disableMouseEvent (QMouseEvent::Type mEvent)
std::string	getLayerId ()
std::vector< te::gm::LineString * >	getLines ()
EditType	getType ()
bool	isInUse () const
bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...
bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...
bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...
	ProfileTools (te::qt::widgets::MapDisplay *display, const te::map::AbstractLayerPtr &layer, QObject *parent=0)
void	resetVisualizationTool ()
void	setInUse (const bool &status)
void	setLayer (te::map::AbstractLayer *layer)
void	setLines (std::vector< te::gm::LineString *> &l)
void	setType (EditType t)
void	updateRepository ()
	~ProfileTools ()
AbstractTool Methods
Methods related with tool behavior.
virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)
void	pickFeature (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &env)
void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...
void	setStage (StageType stage)
void	updateCursor ()
void	updateRTree ()

Protected Attributes
QCursor	m_curCursor
	The current mapdisplay cursor. More...
StageType	m_currentStage
VertexIndex	m_currentVertexIndex
QCursor	m_cursor
	The default tool cursor. More...
MapDisplay *	m_display
	The map display associated with the tool. More...
Feature *	m_feature
bool	m_fixGeometry
bool	m_isEdited
bool	m_isInUse
te::map::AbstractLayer *	m_layer
std::vector< te::gm::LineString * >	m_lines
QMouseEvent::Type	m_mEvent
te::sam::rtree::Index< VertexIndex, 8 >	m_rtree
UndoStackManager &	m_stack
EditType	m_type

Detailed Description

Definition at line 56 of file ProfileTools.h.

Member Enumeration Documentation

StageType

enum te::edit::VertexTool::StageType

inherited

Defines the operation stage to this tool.

Enumerator
FEATURE_SELECTION	Selection of feature.
VERTEX_SEARCH	Search of vertex.
VERTEX_FOUND	Vertex found.
VERTEX_MOVING	Vertex movement.
VERTEX_READY_TO_ADD	Vertex add.

Definition at line 85 of file VertexTool.h.

Constructor & Destructor Documentation

ProfileTools()

te::mnt::ProfileTools::ProfileTools	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = 0
	)

~ProfileTools()

te::mnt::ProfileTools::~ProfileTools

(

)

Member Function Documentation

buildEnvelope()

te::gm::Envelope te::edit::VertexTool::buildEnvelope ( const QPointF &  pos )

protectedinherited

disableMouseEvent()

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type  mEvent )

inherited

geometriesEdited

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

geometriesStarted

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

getLayerId()

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

getLines()

std::vector<te::gm::LineString*> te::mnt::ProfileTools::getLines ( )

inline

Definition at line 71 of file ProfileTools.h.

getType()

EditType te::mnt::ProfileTools::getType ( )

inline

Definition at line 67 of file ProfileTools.h.

isInUse()

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent *  e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

mouseDoubleClickEvent()

bool te::mnt::ProfileTools::mouseDoubleClickEvent ( QMouseEvent *  e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note

The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::edit::VertexTool.

mouseMoveEvent()

bool te::mnt::ProfileTools::mouseMoveEvent ( QMouseEvent *  e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::edit::VertexTool.

mousePressEvent()

bool te::mnt::ProfileTools::mousePressEvent ( QMouseEvent *  e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::edit::VertexTool.

mouseReleaseEvent()

bool te::mnt::ProfileTools::mouseReleaseEvent ( QMouseEvent *  e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns

If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::edit::VertexTool.

pickFeature()

void te::edit::VertexTool::pickFeature ( const te::map::AbstractLayerPtr &  layer, const te::gm::Envelope &  env  )

protectedinherited

resetVisualizationTool()

void te::edit::VertexTool::resetVisualizationTool ( )

virtualinherited

Reimplemented from te::edit::GeometriesUpdateTool.

setCursor()

void te::edit::GeometriesUpdateTool::setCursor ( const QCursor &  cursor )

protectedvirtualinherited

It sets the tool cursor.

Parameters

cursor

The cursor that will be used during the tool operation.

Reimplemented from te::qt::widgets::AbstractTool.

setInUse()

void te::edit::GeometriesUpdateTool::setInUse ( const bool &  status )

inherited

setLayer()

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer *  layer )

inherited

setLines()

void te::mnt::ProfileTools::setLines

(

std::vector< te::gm::LineString *> &

l

)

setStage()

void te::edit::VertexTool::setStage ( StageType  stage )

protectedinherited

setType()

void te::mnt::ProfileTools::setType

(

EditType

t

)

toolDeleted

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

updateCursor()

void te::edit::VertexTool::updateCursor ( )

protectedinherited

updateRepository()

void te::mnt::ProfileTools::updateRepository

(

)

updateRTree()

void te::edit::VertexTool::updateRTree ( )

protectedinherited

Member Data Documentation

m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

m_currentStage

StageType te::edit::VertexTool::m_currentStage

protectedinherited

Definition at line 154 of file VertexTool.h.

m_currentVertexIndex

VertexIndex te::edit::VertexTool::m_currentVertexIndex

protectedinherited

Definition at line 152 of file VertexTool.h.

m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

m_feature

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 102 of file GeometriesUpdateTool.h.

m_fixGeometry

bool te::edit::VertexTool::m_fixGeometry

protectedinherited

Definition at line 156 of file VertexTool.h.

m_isEdited

bool te::edit::VertexTool::m_isEdited

protectedinherited

Definition at line 155 of file VertexTool.h.

m_isInUse

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

m_layer

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 103 of file GeometriesUpdateTool.h.

m_lines

std::vector<te::gm::LineString*> te::edit::VertexTool::m_lines

protectedinherited

Definition at line 151 of file VertexTool.h.

m_mEvent

QMouseEvent::Type te::edit::GeometriesUpdateTool::m_mEvent

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

m_rtree

te::sam::rtree::Index<VertexIndex, 8> te::edit::VertexTool::m_rtree

protectedinherited

Definition at line 153 of file VertexTool.h.

m_stack

UndoStackManager& te::edit::VertexTool::m_stack

protectedinherited

Definition at line 157 of file VertexTool.h.

m_type

EditType te::mnt::ProfileTools::m_type

protected

Definition at line 84 of file ProfileTools.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/mnt/qt/ProfileTools.h
