te::qt::widgets::AbstractTool Class Reference

This class defines an interface for objects that can receive application events and respond to them, according to specific tool behavior. Tools, in general, receives map display interaction events, like MouseClick, MouseMove, etc. Tools are created to do some GIS operation using the user interactions. More...

#include <AbstractTool.h>

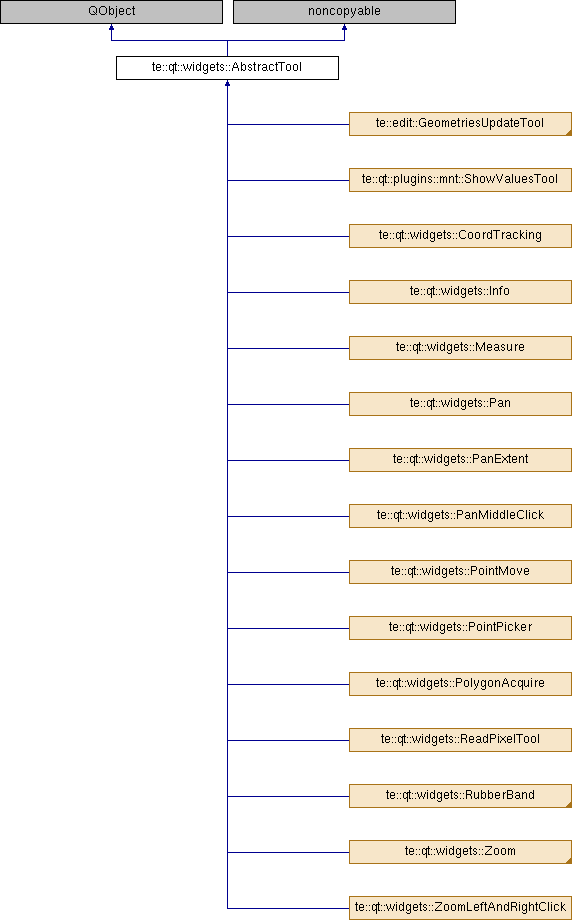

Inheritance diagram for te::qt::widgets::AbstractTool:
te::edit::GeometriesUpdateTool te::qt::plugins::mnt::ShowValuesTool te::qt::widgets::CoordTracking te::qt::widgets::Info te::qt::widgets::Measure te::qt::widgets::Pan te::qt::widgets::PanExtent te::qt::widgets::PanMiddleClick te::qt::widgets::PointMove te::qt::widgets::PointPicker te::qt::widgets::PolygonAcquire te::qt::widgets::ReadPixelTool te::qt::widgets::RubberBand te::qt::widgets::Zoom te::qt::widgets::ZoomLeftAndRightClick

Public Member Functions

virtual void setCursor (const QCursor &cursor)
 It sets the tool cursor. More...

Initializer Methods

Methods related to instantiation and destruction.

 AbstractTool (MapDisplay *display, QObject *parent=0)
 It constructs a tool associated with the given map display and with the specified cursor. More...

virtual ~AbstractTool ()
 Destructor. More...

AbstractTool Methods

Methods related with tool behavior.

virtual bool eventFilter (QObject *watched, QEvent *e)
 Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool mousePressEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

virtual bool mouseMoveEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool mouseReleaseEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool mouseDoubleClickEvent (QMouseEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool keyPressEvent (QKeyEvent *e)
 This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...


Protected Attributes

QCursor m_curCursor
 The current mapdisplay cursor. More...

QCursor m_cursor
 The default tool cursor. More...

MapDisplaym_display
 The map display associated with the tool. More...


Detailed Description

This class defines an interface for objects that can receive application events and respond to them, according to specific tool behavior. Tools, in general, receives map display interaction events, like MouseClick, MouseMove, etc. Tools are created to do some GIS operation using the user interactions.

See also
CoordTracking, Info, Measure, Pan, RubberBand, Selection, Zoom, ZoomArea, ZoomClick, ZoomKeyboard, ZoomWheel

Definition at line 63 of file AbstractTool.h.

Constructor & Destructor Documentation

◆ AbstractTool()

te::qt::widgets::AbstractTool::AbstractTool ( MapDisplay display,
QObject *  parent = 0
)

It constructs a tool associated with the given map display and with the specified cursor.

Parameters
displayThe map display associated with the tool.
parentThe tool's parent.
Note
The tool will NOT take the ownership of the given pointers.
If the given cursor is different of Qt::BlankCursor, it will be setted on map display.

◆ ~AbstractTool()

virtual te::qt::widgets::AbstractTool::~AbstractTool ( )
virtual

Destructor.

Member Function Documentation

◆ eventFilter()

virtual bool te::qt::widgets::AbstractTool::eventFilter ( QObject *  watched,
QEvent *  e
)
virtual

Filters events if this object has been installed as an event filter for the watched object.

Parameters
watchedThe watched object.
eventThe last event sent to watched object.
Note
In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.
Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::edit::GeometriesUpdateTool, te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent *  e)
virtual

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters
eThe key event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

◆ mouseDoubleClickEvent()

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent *  e)
virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters
eThe mouse event.
Returns
If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.
Note
The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::mnt::ProfileTools, and te::edit::SubtractAreaTool.

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

virtual bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent *  e)
virtual

◆ setCursor()

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor &  cursor)
virtual

It sets the tool cursor.

Parameters
cursorThe cursor that will be used during the tool operation.

Reimplemented in te::edit::GeometriesUpdateTool.

Member Data Documentation

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor
protected

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor
protected

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display
protected

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.


The documentation for this class was generated from the following file:
