This class implements a concrete tool to create points. More...

#include <CreatePointTool.h>

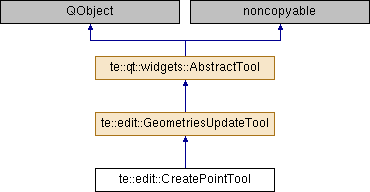

Inheritance diagram for te::edit::CreatePointTool:

Signals
void	geometriesEdited ()

void	geometriesStarted ()

void	toolDeleted ()

Public Member Functions
te::gm::Geometry *	buildPoint ()

void	disableMouseEvent (QMouseEvent::Type mEvent)

std::string	getLayerId ()

bool	isInUse () const

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

Initializer Methods
Methods related to instantiation and destruction.
	CreatePointTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, const QCursor &cursor, QObject parent=0)
	It constructs a create line tool associated with the given map display. More...

	~CreatePointTool ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

void	resetVisualizationTool ()

AbstractTool Methods
Methods related with tool behavior.
virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
void	clear ()

void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Protected Attributes
std::vector< te::gm::Coord2D >	m_coords
	The coord list managed by this tool. More...

QCursor	m_curCursor
	The current mapdisplay cursor. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isFinished
	A flag that indicates if the operations was finished. More...

bool	m_isInUse

te::map::AbstractLayer *	m_layer

QMouseEvent::Type	m_mEvent

Private Member Functions
void	draw ()

void	storeFeature ()

Detailed Description

This class implements a concrete tool to create points.

Definition at line 62 of file CreatePointTool.h.

Constructor & Destructor Documentation

◆ CreatePointTool()

te::edit::CreatePointTool::CreatePointTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		const QCursor &	cursor,
		QObject *	parent = `0`
	)

It constructs a create line tool associated with the given map display.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

◆ ~CreatePointTool()

te::edit::CreatePointTool::~CreatePointTool ( )

Destructor.

Member Function Documentation

◆ buildPoint()

te::gm::Geometry* te::edit::CreatePointTool::buildPoint ( )

◆ clear()

void te::edit::CreatePointTool::clear ( )

protected

◆ disableMouseEvent()

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type mEvent )

inherited

◆ draw()

void te::edit::CreatePointTool::draw ( )

private

◆ geometriesEdited

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

◆ geometriesStarted

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

◆ getLayerId()

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

◆ isInUse()

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

◆ mouseDoubleClickEvent()

bool te::edit::CreatePointTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mouseMoveEvent()

virtual bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::qt::widgets::Selection, te::edit::CreatePolygonTool, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::qt::widgets::PolygonAcquire, te::edit::RotateGeometryTool, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::Zoom, te::qt::widgets::PointMove, te::qt::widgets::PointPicker, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::edit::AggregateAreaTool, te::qt::widgets::PanMiddleClick, te::mnt::ProfileTools, te::edit::SubtractAreaTool, and te::qt::plugins::mnt::ShowValuesTool.

◆ mousePressEvent()

bool te::edit::CreatePointTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mouseReleaseEvent()

virtual bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Info, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::qt::widgets::Selection, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::qt::widgets::PolygonAcquire, te::edit::RotateGeometryTool, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::Zoom, te::qt::widgets::PointMove, te::qt::widgets::PointPicker, te::qt::widgets::RubberBand, te::edit::AggregateAreaTool, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::PanMiddleClick, te::mnt::ProfileTools, te::edit::SubtractAreaTool, and te::qt::widgets::ReadPixelTool.

◆ resetVisualizationTool()

void te::edit::CreatePointTool::resetVisualizationTool ( )

virtual

Reimplemented from te::edit::GeometriesUpdateTool.

◆ setCursor()

void te::edit::GeometriesUpdateTool::setCursor ( const QCursor & cursor )

protectedvirtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Reimplemented from te::qt::widgets::AbstractTool.

◆ setInUse()

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

◆ setLayer()

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

◆ storeFeature()

void te::edit::CreatePointTool::storeFeature ( )

private

◆ toolDeleted

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

Member Data Documentation

◆ m_coords

std::vector<te::gm::Coord2D> te::edit::CreatePointTool::m_coords

protected

The coord list managed by this tool.

Definition at line 111 of file CreatePointTool.h.

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

◆ m_feature

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 102 of file GeometriesUpdateTool.h.

◆ m_isFinished

bool te::edit::CreatePointTool::m_isFinished

protected

A flag that indicates if the operations was finished.

Definition at line 112 of file CreatePointTool.h.

◆ m_isInUse

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

◆ m_layer

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 103 of file GeometriesUpdateTool.h.

◆ m_mEvent

QMouseEvent::Type te::edit::GeometriesUpdateTool::m_mEvent

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/CreatePointTool.h
