This class implements a concrete tool to geographic pan operation with mouse middle click. More...

#include <PanMiddleClick.h>

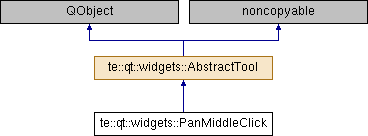

Inheritance diagram for te::qt::widgets::PanMiddleClick:

Public Member Functions
virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Initializer Methods
Methods related to instantiation and destruction.
	PanMiddleClick (MapDisplay display, QObject parent=0)
	It constructs a pan tool, with mouse middle button, associated with the given map display and with the specified cursors. More...

	~PanMiddleClick ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Attributes
QCursor	m_curCursor
	The current mapdisplay cursor. More...

QCursor	m_currentCursor
	Current cursor to be used in the end of the pan user action. More...

QCursor	m_cursor
	The default tool cursor. More...

QPoint	m_delta
	Difference between pressed point and destination point on mouse move. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

QPoint	m_origin
	Origin point on mouse pressed. More...

bool	m_panStarted
	Flag that indicates if pan operation was started. More...

QPointF	m_referencePoint
	The reference origin point, in World Coordinate System. More...

Detailed Description

This class implements a concrete tool to geographic pan operation with mouse middle click.

Definition at line 49 of file PanMiddleClick.h.

Constructor & Destructor Documentation

◆ PanMiddleClick()

te::qt::widgets::PanMiddleClick::PanMiddleClick	(	MapDisplay *	display,
		QObject *	parent = `0`
	)

It constructs a pan tool, with mouse middle button, associated with the given map display and with the specified cursors.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.; If the given cursor is different of Qt::BlankCursor, it will be setted on map display.

◆ ~PanMiddleClick()

te::qt::widgets::PanMiddleClick::~PanMiddleClick ( )

Destructor.

Member Function Documentation

◆ eventFilter()

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::edit::GeometriesUpdateTool, te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

◆ mouseDoubleClickEvent()

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::mnt::ProfileTools, and te::edit::SubtractAreaTool.

◆ mouseMoveEvent()

bool te::qt::widgets::PanMiddleClick::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mousePressEvent()

bool te::qt::widgets::PanMiddleClick::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mouseReleaseEvent()

bool te::qt::widgets::PanMiddleClick::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ setCursor()

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Reimplemented in te::edit::GeometriesUpdateTool.

Member Data Documentation

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

◆ m_currentCursor

QCursor te::qt::widgets::PanMiddleClick::m_currentCursor

protected

Current cursor to be used in the end of the pan user action.

Definition at line 92 of file PanMiddleClick.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

◆ m_delta

QPoint te::qt::widgets::PanMiddleClick::m_delta

protected

Difference between pressed point and destination point on mouse move.

Definition at line 91 of file PanMiddleClick.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

◆ m_origin

QPoint te::qt::widgets::PanMiddleClick::m_origin

protected

Origin point on mouse pressed.

Definition at line 90 of file PanMiddleClick.h.

◆ m_panStarted

bool te::qt::widgets::PanMiddleClick::m_panStarted

protected

Flag that indicates if pan operation was started.

Definition at line 89 of file PanMiddleClick.h.

◆ m_referencePoint

QPointF te::qt::widgets::PanMiddleClick::m_referencePoint

protected

The reference origin point, in World Coordinate System.

Definition at line 93 of file PanMiddleClick.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/qt/widgets/tools/PanMiddleClick.h
