te::rp::TiePointsLocatorMoravecStrategy::Parameters Class Reference

TiePointsLocator Moravec strategy parameters. More...

#include <TiePointsLocatorMoravecStrategy.h>

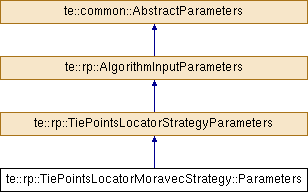

Inheritance diagram for te::rp::TiePointsLocatorMoravecStrategy::Parameters:

Public Member Functions
AbstractParameters *	clone () const
	Create a clone copy of this instance. More...
const Parameters &	operator= (const Parameters &params)
	Parameters ()
	Parameters (const Parameters &)
void	reset ()
	Clear all internal allocated resources and reset the parameters instance to its initial state. More...
bool	serialize (AlgorithmParametersSerializer &serializer) const
	Returns a parameter serialization object. More...
	~Parameters ()

Public Attributes
unsigned int	m_moravecCorrelationWindowWidth
	The correlation window width used to correlate points between the images (minimum 3, default: 21, odd number). More...
double	m_moravecMinAbsCorrelation
	The minimum acceptable absolute correlation value when matching features (when applicable), default:0.25, valid range: [0,1]. More...
unsigned int	m_moravecNoiseFilterIterations
	The number of noise filter iterations, when applicable (used to remove image noise, zero will disable the noise Filter, default:1). More...
unsigned int	m_moravecWindowWidth
	The Moravec window width used to locate canditate tie-points (minimum 3, default: 21, odd number ). More...

Detailed Description

TiePointsLocator Moravec strategy parameters.

Definition at line 55 of file TiePointsLocatorMoravecStrategy.h.

Constructor & Destructor Documentation

Parameters() [1/2]

te::rp::TiePointsLocatorMoravecStrategy::Parameters::Parameters

(

)

Parameters() [2/2]

te::rp::TiePointsLocatorMoravecStrategy::Parameters::Parameters

(

const Parameters &

)

~Parameters()

te::rp::TiePointsLocatorMoravecStrategy::Parameters::~Parameters

(

)

Member Function Documentation

clone()

AbstractParameters* te::rp::TiePointsLocatorMoravecStrategy::Parameters::clone ( ) const

virtual

Create a clone copy of this instance.

Returns

A clone copy of this instance.

Note

The caller will take the ownership of the returned pointer.

Implements te::common::AbstractParameters.

operator=()

const Parameters& te::rp::TiePointsLocatorMoravecStrategy::Parameters::operator=

(

const Parameters &

params

)

reset()

void te::rp::TiePointsLocatorMoravecStrategy::Parameters::reset ( )

virtual

Clear all internal allocated resources and reset the parameters instance to its initial state.

Implements te::common::AbstractParameters.

serialize()

bool te::rp::TiePointsLocatorMoravecStrategy::Parameters::serialize ( AlgorithmParametersSerializer &  serializer ) const

virtual

Returns a parameter serialization object.

Parameters

serializer

The output serialization object.

Returns

Returns true if ok, false on erros.

Reimplemented from te::rp::TiePointsLocatorStrategyParameters.

Member Data Documentation

m_moravecCorrelationWindowWidth

unsigned int te::rp::TiePointsLocatorMoravecStrategy::Parameters::m_moravecCorrelationWindowWidth

The correlation window width used to correlate points between the images (minimum 3, default: 21, odd number).

Definition at line 59 of file TiePointsLocatorMoravecStrategy.h.

m_moravecMinAbsCorrelation

double te::rp::TiePointsLocatorMoravecStrategy::Parameters::m_moravecMinAbsCorrelation

The minimum acceptable absolute correlation value when matching features (when applicable), default:0.25, valid range: [0,1].

Definition at line 65 of file TiePointsLocatorMoravecStrategy.h.

m_moravecNoiseFilterIterations

unsigned int te::rp::TiePointsLocatorMoravecStrategy::Parameters::m_moravecNoiseFilterIterations

The number of noise filter iterations, when applicable (used to remove image noise, zero will disable the noise Filter, default:1).

Definition at line 63 of file TiePointsLocatorMoravecStrategy.h.

m_moravecWindowWidth

unsigned int te::rp::TiePointsLocatorMoravecStrategy::Parameters::m_moravecWindowWidth

The Moravec window width used to locate canditate tie-points (minimum 3, default: 21, odd number ).

Definition at line 61 of file TiePointsLocatorMoravecStrategy.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/rp/TiePointsLocatorMoravecStrategy.h
