te::layout::ItemModelObservable Class Referenceabstract

#include <ItemModelObservable.h>

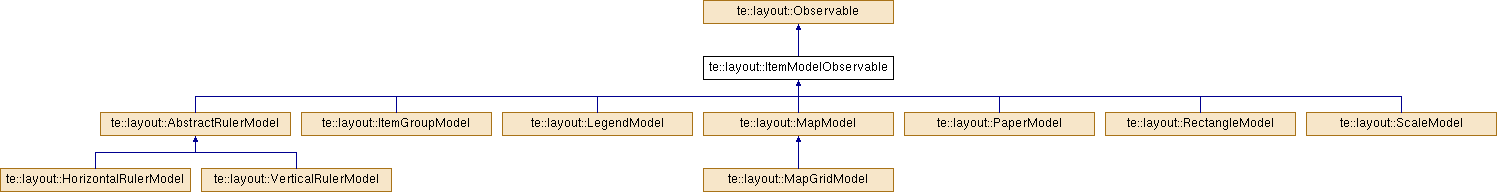

Inheritance diagram for te::layout::ItemModelObservable:
te::layout::Observable te::layout::AbstractRulerModel te::layout::ItemGroupModel te::layout::LegendModel te::layout::MapModel te::layout::PaperModel te::layout::RectangleModel te::layout::ScaleModel te::layout::HorizontalRulerModel te::layout::VerticalRulerModel te::layout::MapGridModel

Public Member Functions

virtual bool addObserver (Observer *o)

virtual bool contains (const te::gm::Coord2D &coord) const

virtual void draw (ContextItem context)=0

virtual te::color::RGBAColor getBackgroundColor ()

virtual te::color::RGBAColor getBorderColor ()

virtual te::gm::Envelope getBox ()

virtual int getId ()

virtual std::string getName ()

virtual Properties * getProperties () const

virtual LayoutAbstractObjectType getType ()

virtual int getZValue ()

virtual bool isBorder ()

 ItemModelObservable ()

virtual bool removeObserver (Observer *o)

virtual void resize (double w, double h)

virtual void setBackgroundColor (te::color::RGBAColor color)

virtual void setBorder (bool value)

virtual void setBorderColor (te::color::RGBAColor color)

virtual void setBox (te::gm::Envelope box)

virtual void setId (int id)

virtual void setName (std::string name)

virtual void setPosition (const double &x, const double &y)

virtual void setType (LayoutAbstractObjectType type)

virtual void setZValue (int zValue)

virtual void updateProperties (te::layout::Properties *properties)

virtual ~ItemModelObservable ()


Protected Member Functions

virtual void notifyAll (ContextItem context)


Protected Attributes

te::color::RGBAColor m_backgroundColor

bool m_border

te::color::RGBAColor m_borderColor

te::gm::Envelope m_box

te::gm::Coord2D m_centerCoordinate

int m_id

std::set< Observer * > m_observers

Properties * m_properties

SharedProperties * m_sharedProps

LayoutAbstractObjectType m_type

int m_zValue


Private Attributes

std::string m_name


Detailed Description

Definition at line 44 of file ItemModelObservable.h.

Constructor & Destructor Documentation

te::layout::ItemModelObservable::ItemModelObservable ( )

Definition at line 37 of file ItemModelObservable.cpp.

References m_backgroundColor, m_box, m_name, m_properties, and m_sharedProps.

te::layout::ItemModelObservable::~ItemModelObservable ( )
virtual

Definition at line 54 of file ItemModelObservable.cpp.

Member Function Documentation

bool te::layout::ItemModelObservable::addObserver ( Observer *  o)
virtual

Implements te::layout::Observable.

Definition at line 69 of file ItemModelObservable.cpp.

bool te::layout::ItemModelObservable::contains ( const te::gm::Coord2D &  coord) const
virtual

Definition at line 217 of file ItemModelObservable.cpp.

References te::gm::Envelope::isValid(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

Referenced by te::layout::ItemController::contains(), and te::layout::ItemGroup::contains().

virtual void te::layout::ItemModelObservable::draw ( ContextItem  context)
pure virtual

Implemented in te::layout::MapGridModel, te::layout::VerticalRulerModel, te::layout::HorizontalRulerModel, te::layout::LegendModel, te::layout::MapModel, te::layout::PaperModel, te::layout::ScaleModel, te::layout::ItemGroupModel, and te::layout::RectangleModel.

Referenced by te::layout::ItemController::redraw().

te::color::RGBAColor te::layout::ItemModelObservable::getBackgroundColor ( )
virtual

Definition at line 173 of file ItemModelObservable.cpp.

te::color::RGBAColor te::layout::ItemModelObservable::getBorderColor ( )
virtual

Definition at line 188 of file ItemModelObservable.cpp.

te::gm::Envelope te::layout::ItemModelObservable::getBox ( )
virtual

Implements te::layout::Observable.

Definition at line 163 of file ItemModelObservable.cpp.

Referenced by te::layout::ItemGroup::drawBackground(), te::layout::ItemGroup::paint(), and te::layout::MapItem::setPixmap().

int te::layout::ItemModelObservable::getId ( )
virtual

Implements te::layout::Observable.

Definition at line 312 of file ItemModelObservable.cpp.

Referenced by te::layout::maxTypeId().

std::string te::layout::ItemModelObservable::getName ( )
virtual

Implements te::layout::Observable.

Definition at line 200 of file ItemModelObservable.cpp.

te::layout::Properties * te::layout::ItemModelObservable::getProperties ( ) const
virtual

Implements te::layout::Observable.

Reimplemented in te::layout::MapGridModel, te::layout::LegendModel, and te::layout::ScaleModel.

Definition at line 98 of file ItemModelObservable.cpp.

References te::layout::Properties::clear(), te::layout::DataTypeBool, te::layout::DataTypeDouble, te::layout::DataTypeInt, te::layout::DataTypeString, te::layout::Property::setId(), te::layout::Property::setName(), and te::layout::Property::setValue().

Referenced by te::layout::ScaleModel::getProperties(), te::layout::LegendModel::getProperties(), and te::layout::MapGridModel::getProperties().

te::layout::LayoutAbstractObjectType te::layout::ItemModelObservable::getType ( )
virtual

Implements te::layout::Observable.

Definition at line 282 of file ItemModelObservable.cpp.

Referenced by te::layout::changeMapVisitable().

int te::layout::ItemModelObservable::getZValue ( )
virtual

Implements te::layout::Observable.

Definition at line 292 of file ItemModelObservable.cpp.

bool te::layout::ItemModelObservable::isBorder ( )
virtual

Definition at line 302 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::notifyAll ( ContextItem  context)
protectedvirtual

Implements te::layout::Observable.

Definition at line 89 of file ItemModelObservable.cpp.

bool te::layout::ItemModelObservable::removeObserver ( Observer *  o)
virtual

Implements te::layout::Observable.

Definition at line 79 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::resize ( double  w,
double  h
)
virtual

Definition at line 322 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::setBackgroundColor ( te::color::RGBAColor  color)
virtual

Definition at line 178 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::setBorder ( bool  value)
virtual

Definition at line 307 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::setBorderColor ( te::color::RGBAColor  color)
virtual

Definition at line 183 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::setBox ( te::gm::Envelope  box)
virtual

Reimplemented in te::layout::VerticalRulerModel, and te::layout::HorizontalRulerModel.

Definition at line 168 of file ItemModelObservable.cpp.

Referenced by te::layout::ItemGroup::addToGroup(), and te::layout::ItemController::setBox().

void te::layout::ItemModelObservable::setId ( int  id)
virtual

Implements te::layout::Observable.

Definition at line 317 of file ItemModelObservable.cpp.

Referenced by te::layout::BuildGraphicsItem::createItemGroup(), te::layout::BuildGraphicsItem::createLegend(), te::layout::BuildGraphicsItem::createMap(), te::layout::BuildGraphicsItem::createMapGrid(), te::layout::BuildGraphicsItem::createPaper(), te::layout::BuildGraphicsItem::createRectangle(), and te::layout::BuildGraphicsItem::createScale().

void te::layout::ItemModelObservable::setName ( std::string  name)
virtual

Definition at line 193 of file ItemModelObservable.cpp.

Referenced by te::layout::BuildGraphicsItem::createItemGroup(), te::layout::BuildGraphicsItem::createLegend(), te::layout::BuildGraphicsItem::createMap(), te::layout::BuildGraphicsItem::createMapGrid(), te::layout::BuildGraphicsItem::createPaper(), te::layout::BuildGraphicsItem::createRectangle(), te::layout::BuildGraphicsItem::createScale(), and te::layout::PaperModel::PaperModel().

void te::layout::ItemModelObservable::setPosition ( const double &  x,
const double &  y
)
virtual

Definition at line 205 of file ItemModelObservable.cpp.

Referenced by te::layout::HorizontalRulerController::setPosition(), te::layout::ItemGroupController::setPosition(), te::layout::LegendController::setPosition(), te::layout::VerticalRulerController::setPosition(), te::layout::PaperController::setPosition(), te::layout::RectangleController::setPosition(), te::layout::ScaleController::setPosition(), and te::layout::MapController::setPosition().

void te::layout::ItemModelObservable::setType ( LayoutAbstractObjectType  type)
virtual

Implements te::layout::Observable.

Definition at line 287 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::setZValue ( int  zValue)
virtual

Implements te::layout::Observable.

Definition at line 297 of file ItemModelObservable.cpp.

void te::layout::ItemModelObservable::updateProperties ( te::layout::Properties *  properties)
virtual

Implements te::layout::Observable.

Reimplemented in te::layout::LegendModel, te::layout::MapGridModel, te::layout::ScaleModel, and te::layout::MapModel.

Definition at line 227 of file ItemModelObservable.cpp.

References te::layout::Properties::contains(), te::layout::Property::getValue(), te::layout::Property::isNull(), te::layout::Variant::toBool(), te::layout::Variant::toDouble(), te::layout::Variant::toInt(), and te::layout::Variant::toString().

Referenced by te::layout::BuildGraphicsItem::createItemGroup(), te::layout::BuildGraphicsItem::createPaper(), te::layout::BuildGraphicsItem::createRectangle(), te::layout::MapModel::updateProperties(), te::layout::ScaleModel::updateProperties(), te::layout::LegendModel::updateProperties(), and te::layout::ItemController::updateProperties().

Member Data Documentation

te::color::RGBAColor te::layout::ItemModelObservable::m_backgroundColor
protected

Definition at line 97 of file ItemModelObservable.h.

Referenced by ItemModelObservable(), te::layout::PaperModel::PaperModel(), and te::layout::RectangleModel::RectangleModel().

bool te::layout::ItemModelObservable::m_border
protected

Definition at line 103 of file ItemModelObservable.h.

te::color::RGBAColor te::layout::ItemModelObservable::m_borderColor
protected

Definition at line 98 of file ItemModelObservable.h.

Referenced by te::layout::RectangleModel::RectangleModel().

te::gm::Envelope te::layout::ItemModelObservable::m_box
protected

Definition at line 95 of file ItemModelObservable.h.

Referenced by te::layout::AbstractRulerModel::AbstractRulerModel(), te::layout::ItemGroupModel::ItemGroupModel(), ItemModelObservable(), te::layout::LegendModel::LegendModel(), te::layout::MapModel::MapModel(), te::layout::RectangleModel::RectangleModel(), and te::layout::ScaleModel::ScaleModel().

te::gm::Coord2D te::layout::ItemModelObservable::m_centerCoordinate
protected

Definition at line 96 of file ItemModelObservable.h.

int te::layout::ItemModelObservable::m_id
protected

Definition at line 94 of file ItemModelObservable.h.

std::string te::layout::ItemModelObservable::m_name
private

Definition at line 106 of file ItemModelObservable.h.

Referenced by ItemModelObservable().

std::set<Observer*> te::layout::ItemModelObservable::m_observers
protected

Definition at line 93 of file ItemModelObservable.h.

Properties* te::layout::ItemModelObservable::m_properties
protected

Definition at line 99 of file ItemModelObservable.h.

Referenced by ItemModelObservable(), and te::layout::MapGridModel::MapGridModel().

SharedProperties* te::layout::ItemModelObservable::m_sharedProps
protected

Definition at line 102 of file ItemModelObservable.h.

Referenced by ItemModelObservable().

LayoutAbstractObjectType te::layout::ItemModelObservable::m_type
protected

Definition at line 100 of file ItemModelObservable.h.

int te::layout::ItemModelObservable::m_zValue
protected

Definition at line 101 of file ItemModelObservable.h.

The documentation for this class was generated from the following files:
