te::xsd::IdentityConstraint Class Reference

This is the base class for XML Schema elements that are related to identity constraint. More...

#include <IdentityConstraint.h>

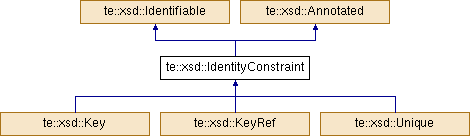

Inheritance diagram for te::xsd::IdentityConstraint:

Public Member Functions
void	addField (Field *f)
	Adds a new field to this element. More...
virtual IdentityConstraint *	clone () const =0
	It clones the object. More...
Annotation *	getAnnotation () const
	It returns the associated annotation. More...
const boost::ptr_vector< Field > &	getFields () const
	It returns the list of Fields elements of this element. More...
std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...
std::string *	getName () const
	It returns the name of this element. More...
Selector *	getSelector () const
	It returns the Selector element of this element. More...
	IdentityConstraint (std::string *name, Annotation *ann=0, std::string *id=0)
	Constructor. More...
	IdentityConstraint (const IdentityConstraint &rhs)
	Copy constructor. More...
IdentityConstraint &	operator= (const IdentityConstraint &rhs)
	Assignment operator. More...
void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...
void	setId (std::string *id)
	it sets the id. More...
void	setName (std::string *name)
	It sets a name for this element. More...
void	setSelector (Selector *s)
	It sets the Selector element of this element. More...
virtual	~IdentityConstraint ()
	Destructor. More...

Protected Attributes
boost::ptr_vector< Field >	m_fieldVec
	The list of fields. (Required at least one) More...
std::string *	m_name
	It specifies the name of this element. (Required) More...
Selector *	m_selector
	It specified the selector element of this. (Required) More...

Detailed Description

This is the base class for XML Schema elements that are related to identity constraint.

Specifically the classes Key, KeyRef and Unique are derived from this base class.

See also

Key, KeyRef, Unique

Definition at line 53 of file IdentityConstraint.h.

Constructor & Destructor Documentation

te::xsd::IdentityConstraint::IdentityConstraint	(	std::string *	name,
		Annotation *	ann = 0,
		std::string *	id = 0
	)

Constructor.

Parameters

id	It specifies a unique ID for this element. It may be a NULL value.
name	It specifies the name of this element. It is required a non-NULL value.

Note

The IdentityConstraint object will take the ownership of the id and name pointers.

te::xsd::IdentityConstraint::IdentityConstraint

(

const IdentityConstraint &

rhs

)

Copy constructor.

Parameters

rhs	Right-hand-side object.

virtual te::xsd::IdentityConstraint::~IdentityConstraint ( )

virtual

Destructor.

Member Function Documentation

void te::xsd::IdentityConstraint::addField

(

Field *

f

)

Adds a new field to this element.

Parameters

f	The field that will be added.

Note

The IdentityConstraint object will take the ownership of the given pointer.

virtual IdentityConstraint* te::xsd::IdentityConstraint::clone ( ) const

pure virtual

It clones the object.

Returns

A clone of the object. The caller will take the ownership.

Implemented in te::xsd::KeyRef, te::xsd::Key, and te::xsd::Unique.

Annotation* te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns

The associated annotation.

const boost::ptr_vector<Field>& te::xsd::IdentityConstraint::getFields

(

)

const

It returns the list of Fields elements of this element.

Returns

The list of Fields.

std::string* te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

std::string* te::xsd::IdentityConstraint::getName

(

)

const

It returns the name of this element.

Returns

The name of this element.

Selector* te::xsd::IdentityConstraint::getSelector

(

)

const

It returns the Selector element of this element.

Returns

The Selector element.

IdentityConstraint& te::xsd::IdentityConstraint::operator=

(

const IdentityConstraint &

rhs

)

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns

A reference to this object.

void te::xsd::Annotated::setAnnotation ( Annotation *  ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

void te::xsd::Identifiable::setId ( std::string *  id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

void te::xsd::IdentityConstraint::setName

(

std::string *

name

)

It sets a name for this element.

Parameters

name	A name for this element. Required a non-NULL value.

Note

The IdentityConstraint object will take the ownership of the given pointer.

void te::xsd::IdentityConstraint::setSelector

(

Selector *

s

)

It sets the Selector element of this element.

Parameters

s	It specifies the Selector element.

Note

The IdentityConstraint object will take the ownership of the given pointer.

Member Data Documentation

boost::ptr_vector<Field> te::xsd::IdentityConstraint::m_fieldVec

protected

The list of fields. (Required at least one)

Definition at line 147 of file IdentityConstraint.h.

std::string* te::xsd::IdentityConstraint::m_name

protected

It specifies the name of this element. (Required)

Definition at line 145 of file IdentityConstraint.h.

Selector* te::xsd::IdentityConstraint::m_selector

protected

It specified the selector element of this. (Required)

Definition at line 146 of file IdentityConstraint.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/xsd/IdentityConstraint.h
