This class models a keyref element from a XML Schema element. More...

#include <KeyRef.h>

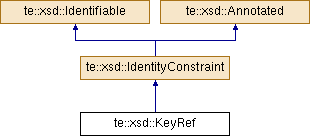

Inheritance diagram for te::xsd::KeyRef:

Public Member Functions
void	addField (Field *f)
	Adds a new field to this element. More...

IdentityConstraint *	clone () const
	It clones the object. More...

Annotation *	getAnnotation () const
	It returns the associated annotation. More...

const boost::ptr_vector< Field > &	getFields () const
	It returns the list of Fields elements of this element. More...

std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...

std::string *	getName () const
	It returns the name of this element. More...

QName *	getRef () const
	It returns the reference to a named element. More...

Selector *	getSelector () const
	It returns the Selector element of this element. More...

	KeyRef (QName refer, std::string name, Annotation ann=0, std::string id=0)
	Constructor. More...

	KeyRef (const KeyRef &rhs)
	Copy constructor. More...

KeyRef &	operator= (const KeyRef &rhs)
	Assignment operator. More...

void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...

void	setId (std::string *id)
	it sets the id. More...

void	setName (std::string *name)
	It sets a name for this element. More...

void	setRef (QName *ref)
	It sets a reference to a named attribute. More...

void	setSelector (Selector *s)
	It sets the Selector element of this element. More...

	~KeyRef ()
	Destructor. More...

Protected Attributes
boost::ptr_vector< Field >	m_fieldVec
	The list of fields. (Required at least one) More...

std::string *	m_name
	It specifies the name of this element. (Required) More...

Selector *	m_selector
	It specified the selector element of this. (Required) More...

Private Attributes
QName *	m_ref
	It specifies the name of a key or unique element defined in this or another schema. (Required) More...

Detailed Description

This class models a keyref element from a XML Schema element.

Note: Parent elements: element.

Definition at line 46 of file KeyRef.h.

Constructor & Destructor Documentation

te::xsd::KeyRef::KeyRef	(	QName *	refer,
		std::string *	name,
		Annotation *	ann = `0`,
		std::string *	id = `0`
	)

Constructor.

Parameters

id	It specifies a unique ID for the element. It may be a NULL value.
name	It specifies the name of the keyref element. It is required a non-NULL value.
ref	It specifies the name of a key or unique element defined in this or another schema. It is required a non-NULL value.

Note: The KeyRef object will take the ownership of the given pointers.

te::xsd::KeyRef::KeyRef ( const KeyRef & rhs )

Copy constructor.

Parameters

rhs	Right-hand-side object.

te::xsd::KeyRef::~KeyRef ( )

Destructor.

Member Function Documentation

void te::xsd::IdentityConstraint::addField ( Field * f )

inherited

Adds a new field to this element.

Parameters

f	The field that will be added.

Note: The IdentityConstraint object will take the ownership of the given pointer.

IdentityConstraint* te::xsd::KeyRef::clone ( ) const

virtual

It clones the object.

Returns: A clone of the object. The caller will take the ownership.

Implements te::xsd::IdentityConstraint.

Annotation* te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns: The associated annotation.

const boost::ptr_vector<Field>& te::xsd::IdentityConstraint::getFields ( ) const

inherited

It returns the list of Fields elements of this element.

Returns: The list of Fields.

std::string* te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

std::string* te::xsd::IdentityConstraint::getName ( ) const

inherited

It returns the name of this element.

Returns: The name of this element.

QName* te::xsd::KeyRef::getRef ( ) const

It returns the reference to a named element.

Returns: The reference to a named element.

Selector* te::xsd::IdentityConstraint::getSelector ( ) const

inherited

It returns the Selector element of this element.

Returns: The Selector element.

KeyRef& te::xsd::KeyRef::operator= ( const KeyRef & rhs )

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns: A reference to this object.

void te::xsd::Annotated::setAnnotation ( Annotation * ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

void te::xsd::Identifiable::setId ( std::string * id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

void te::xsd::IdentityConstraint::setName ( std::string * name )

inherited

It sets a name for this element.

Parameters

name	A name for this element. Required a non-NULL value.

Note: The IdentityConstraint object will take the ownership of the given pointer.

void te::xsd::KeyRef::setRef ( QName * ref )

It sets a reference to a named attribute.

Parameters

ref	A reference to a named attribute. Required a non-NULL value.

Note: The KeyRef object will take the ownership of the given pointer.

void te::xsd::IdentityConstraint::setSelector ( Selector * s )

inherited

It sets the Selector element of this element.

Parameters

s	It specifies the Selector element.

Note: The IdentityConstraint object will take the ownership of the given pointer.

Member Data Documentation

boost::ptr_vector<Field> te::xsd::IdentityConstraint::m_fieldVec

protectedinherited

The list of fields. (Required at least one)

Definition at line 147 of file IdentityConstraint.h.

std::string* te::xsd::IdentityConstraint::m_name

protectedinherited

It specifies the name of this element. (Required)

Definition at line 145 of file IdentityConstraint.h.

QName* te::xsd::KeyRef::m_ref

private

It specifies the name of a key or unique element defined in this or another schema. (Required)

Definition at line 104 of file KeyRef.h.

Selector* te::xsd::IdentityConstraint::m_selector

protectedinherited

It specified the selector element of this. (Required)

Definition at line 146 of file IdentityConstraint.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/xsd/KeyRef.h
