This class implements a concrete tool to move geometries. More...

#include <MoveGeometryTool.h>

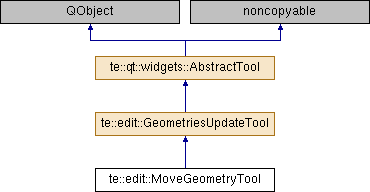

Inheritance diagram for te::edit::MoveGeometryTool:

Signals
void	endSelectCell (const std::string &, const std::size_t &, std::size_t &)

void	geometriesEdited ()

void	toolDeleted ()

Public Member Functions
std::string	getLayerId ()

bool	isInUse () const

void	resetVisualizationTool ()

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

Initializer Methods
Methods related to instantiation and destruction.
	MoveGeometryTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, const te::edit::MouseEventEdition mouseEventToSave, QObject parent=0)
	It constructs a move geometry tool associated with the given map display. More...

	~MoveGeometryTool ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

Protected Member Functions
virtual void	saveGeometry (te::gm::Geometry *gm, const int &op)

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

QPointF	m_delta
	Difference between pressed point and destination point on mouse move. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

te::map::AbstractLayer *	m_layer

MouseEventEdition	m_mouseEventToSave

bool	m_moveStarted
	Flag that indicates if move operation was started. More...

QPointF	m_origin
	Origin point on mouse pressed. More...

bool	m_selected

UndoStackManager &	m_stack

std::vector< te::edit::Feature * >	m_vecFeature

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	pickFeature (const QPointF &pos)

void	reset ()

void	storeFeature ()

void	storeUndoCommand ()

void	updateCursor ()

Detailed Description

This class implements a concrete tool to move geometries.

Definition at line 66 of file MoveGeometryTool.h.

Constructor & Destructor Documentation

te::edit::MoveGeometryTool::MoveGeometryTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		const te::edit::MouseEventEdition	mouseEventToSave,
		QObject *	parent = `0`
	)

It constructs a move geometry tool associated with the given map display.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

te::edit::MoveGeometryTool::~MoveGeometryTool ( )

Destructor.

Member Function Documentation

te::gm::Envelope te::edit::MoveGeometryTool::buildEnvelope ( const QPointF & pos )

private

void te::edit::MoveGeometryTool::draw ( )

private

void te::edit::GeometriesUpdateTool::endSelectCell	(	const std::string &	,
		const std::size_t &	,
		std::size_t &
	)

signalinherited

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

bool te::edit::MoveGeometryTool::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::MoveGeometryTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::MoveGeometryTool::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

void te::edit::MoveGeometryTool::pickFeature ( const QPointF & pos )

private

void te::edit::MoveGeometryTool::reset ( )

private

void te::edit::MoveGeometryTool::resetVisualizationTool ( )

virtual

Reimplemented from te::edit::GeometriesUpdateTool.

virtual void te::edit::GeometriesUpdateTool::saveGeometry	(	te::gm::Geometry *	gm,
		const int &	op
	)

protectedvirtualinherited

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

void te::edit::MoveGeometryTool::storeFeature ( )

privatevirtual

Reimplemented from te::edit::GeometriesUpdateTool.

void te::edit::MoveGeometryTool::storeUndoCommand ( )

privatevirtual

Reimplemented from te::edit::GeometriesUpdateTool.

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

void te::edit::MoveGeometryTool::updateCursor ( )

private

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

QPointF te::edit::MoveGeometryTool::m_delta

protected

Difference between pressed point and destination point on mouse move.

Definition at line 127 of file MoveGeometryTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 97 of file GeometriesUpdateTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

MouseEventEdition te::edit::MoveGeometryTool::m_mouseEventToSave

protected

Definition at line 129 of file MoveGeometryTool.h.

bool te::edit::MoveGeometryTool::m_moveStarted

protected

Flag that indicates if move operation was started.

Definition at line 125 of file MoveGeometryTool.h.

QPointF te::edit::MoveGeometryTool::m_origin

protected

Origin point on mouse pressed.

Definition at line 126 of file MoveGeometryTool.h.

bool te::edit::MoveGeometryTool::m_selected

protected

Definition at line 124 of file MoveGeometryTool.h.

UndoStackManager& te::edit::MoveGeometryTool::m_stack

protected

Definition at line 130 of file MoveGeometryTool.h.

std::vector<te::edit::Feature*> te::edit::MoveGeometryTool::m_vecFeature

protected

Definition at line 128 of file MoveGeometryTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/MoveGeometryTool.h
