te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters Class Reference

Segmenter Parameters. More...

#include <SegmenterRegionGrowingBaatzStrategy.h>

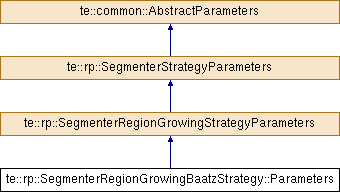

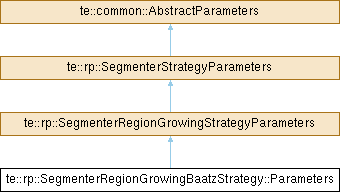

Inheritance diagram for te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters:

Public Attributes
bool	m_enableLocalMutualBestFitting
	If enabled, a merge only occurs between two segments if the minimum dissimilarity criteria is best fulfilled mutually (default: false). More...
unsigned int	m_minSegmentSize
	A positive minimum segment size (pixels number - default: 1). More...
double	m_segmentsSimilarityThreshold
	Segments similarity treshold - Use lower values to merge only those segments that are more similar - Higher values will allow more segments to be merged - valid values range: positive values - default: 0 ). More...
unsigned int	m_segmentsSimIncreaseSteps
	The maximum number of steps to increment the similarity threshold value for the cases where no segment merge occurred - zero will disable segment similarity threshold increments - defaul: 2. More...

Baatz specific parameters
std::vector< double >	m_bandsWeights
	The weight given to each band, when applicable (note: the bands weights sum must always be 1) or an empty vector indicating that all bands have the same weight. More...
double	m_colorWeight
	The weight given to the color component, deafult:0.9, valid range: [0,1]. More...
double	m_compactnessWeight
	The weight given to the compactness component, deafult:0.5, valid range: [0,1]. More...
	Parameters ()
	~Parameters ()
const Parameters &	operator= (const Parameters &params)
void	reset ()
	Clear all internal allocated resources and reset the parameters instance to its initial state. More...
AbstractParameters *	clone () const
	Create a clone copy of this instance. More...
bool	serialize (AlgorithmParametersSerializer &serializer) const
	Returns a parameter serialization object. More...

Detailed Description

Segmenter Parameters.

Definition at line 59 of file SegmenterRegionGrowingBaatzStrategy.h.

Constructor & Destructor Documentation

Parameters()

te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::Parameters

(

)

~Parameters()

te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::~Parameters

(

)

Member Function Documentation

clone()

AbstractParameters * te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::clone ( ) const

virtual

Create a clone copy of this instance.

Returns

A clone copy of this instance.

Note

The caller will take the ownership of the returned pointer.

Implements te::common::AbstractParameters.

operator=()

const Parameters & te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::operator=

(

const Parameters &

params

)

reset()

void te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::reset ( )

virtual

Clear all internal allocated resources and reset the parameters instance to its initial state.

Reimplemented from te::rp::SegmenterRegionGrowingStrategyParameters.

serialize()

bool te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::serialize ( AlgorithmParametersSerializer &  serializer ) const

virtual

Returns a parameter serialization object.

Parameters

serializer

The output serialization object.

Returns

Returns true if ok, false on erros.

Reimplemented from te::rp::SegmenterRegionGrowingStrategyParameters.

Member Data Documentation

m_bandsWeights

std::vector< double > te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::m_bandsWeights

The weight given to each band, when applicable (note: the bands weights sum must always be 1) or an empty vector indicating that all bands have the same weight.

Definition at line 67 of file SegmenterRegionGrowingBaatzStrategy.h.

m_colorWeight

double te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::m_colorWeight

The weight given to the color component, deafult:0.9, valid range: [0,1].

Definition at line 69 of file SegmenterRegionGrowingBaatzStrategy.h.

m_compactnessWeight

double te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::m_compactnessWeight

The weight given to the compactness component, deafult:0.5, valid range: [0,1].

Definition at line 71 of file SegmenterRegionGrowingBaatzStrategy.h.

m_enableLocalMutualBestFitting

bool te::rp::SegmenterRegionGrowingStrategyParameters::m_enableLocalMutualBestFitting

inherited

If enabled, a merge only occurs between two segments if the minimum dissimilarity criteria is best fulfilled mutually (default: false).

Definition at line 50 of file SegmenterRegionGrowingStrategyParameters.h.

m_minSegmentSize

unsigned int te::rp::SegmenterRegionGrowingStrategyParameters::m_minSegmentSize

inherited

A positive minimum segment size (pixels number - default: 1).

Definition at line 44 of file SegmenterRegionGrowingStrategyParameters.h.

m_segmentsSimilarityThreshold

double te::rp::SegmenterRegionGrowingStrategyParameters::m_segmentsSimilarityThreshold

inherited

Segments similarity treshold - Use lower values to merge only those segments that are more similar - Higher values will allow more segments to be merged - valid values range: positive values - default: 0 ).

Definition at line 46 of file SegmenterRegionGrowingStrategyParameters.h.

m_segmentsSimIncreaseSteps

unsigned int te::rp::SegmenterRegionGrowingStrategyParameters::m_segmentsSimIncreaseSteps

inherited

The maximum number of steps to increment the similarity threshold value for the cases where no segment merge occurred - zero will disable segment similarity threshold increments - defaul: 2.

Definition at line 48 of file SegmenterRegionGrowingStrategyParameters.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/rp/SegmenterRegionGrowingBaatzStrategy.h
