This class implements a concrete tool to get informations about a specified feature using pointing operation. More...

#include <Info.h>

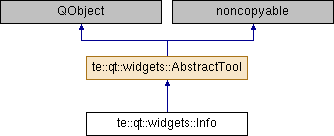

Inheritance diagram for te::qt::widgets::Info:

Public Slots
void	setLayers (const std::list< te::map::AbstractLayerPtr > &layers)

Public Member Functions
virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Initializer Methods
Methods related to instantiation and destruction.
	Info (MapDisplay display, const QCursor &cursor, const std::list< te::map::AbstractLayerPtr > &layers, QObject parent=0)
	It constructs a info tool associated with the given map display. More...

	~Info ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Private Member Functions
void	drawGeometry (te::gm::Geometry *g)

void	getGeometryInfo (QTreeWidgetItem layerItem, te::da::DataSet dataset, const std::string &geomPropertyName, const te::gm::Envelope &e, int srid, bool needRemap)

void	getInfo (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &e)

void	getRasterInfo (QTreeWidgetItem layerItem, te::rst::Raster raster, const te::gm::Envelope &e, int srid, bool needRemap)

Private Attributes
QTreeWidget *	m_infoWidget
	Widget used to show the informations. More...

std::list< te::map::AbstractLayerPtr >	m_layers
	The layer list that will be queried. More...

Detailed Description

This class implements a concrete tool to get informations about a specified feature using pointing operation.

Definition at line 74 of file Info.h.

Constructor & Destructor Documentation

te::qt::widgets::Info::Info	(	MapDisplay *	display,
		const QCursor &	cursor,
		const std::list< te::map::AbstractLayerPtr > &	layers,
		QObject *	parent = `0`
	)

It constructs a info tool associated with the given map display.

Parameters

display	The map display associated with the tool.
cursor	The tool cursor.
layers	The layer list that will be queried.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

te::qt::widgets::Info::~Info ( )

Destructor.

Member Function Documentation

void te::qt::widgets::Info::drawGeometry ( te::gm::Geometry * g )

private

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

void te::qt::widgets::Info::getGeometryInfo	(	QTreeWidgetItem *	layerItem,
		te::da::DataSet *	dataset,
		const std::string &	geomPropertyName,
		const te::gm::Envelope &	e,
		int	srid,
		bool	needRemap
	)

private

void te::qt::widgets::Info::getInfo	(	const te::map::AbstractLayerPtr &	layer,
		const te::gm::Envelope &	e
	)

private

void te::qt::widgets::Info::getRasterInfo	(	QTreeWidgetItem *	layerItem,
		te::rst::Raster *	raster,
		const te::gm::Envelope &	e,
		int	srid,
		bool	needRemap
	)

private

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

virtual bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::qt::plugins::mnt::ShowValuesTool, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

virtual bool te::qt::widgets::AbstractTool::mousePressEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::DeleteGeometryTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::ZoomLeftAndRightClick, te::edit::AggregateAreaTool, te::edit::EditInfoTool, and te::edit::SubtractAreaTool.

bool te::qt::widgets::Info::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::qt::widgets::Info::setLayers ( const std::list< te::map::AbstractLayerPtr > & layers )

slot

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

QTreeWidget* te::qt::widgets::Info::m_infoWidget

private

Widget used to show the informations.

Definition at line 128 of file Info.h.

std::list<te::map::AbstractLayerPtr> te::qt::widgets::Info::m_layers

private

The layer list that will be queried.

Definition at line 127 of file Info.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/qt/widgets/tools/Info.h
