#include <EditInfoTool.h>

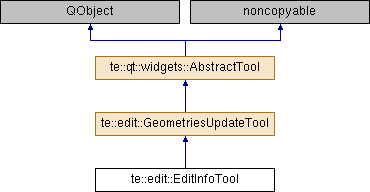

Inheritance diagram for te::edit::EditInfoTool:

Signals
void	endSelectCell (const std::string &, const std::size_t &, std::size_t &)

void	geometriesEdited ()

void	toolDeleted ()

Public Member Functions
void	cancelEditionTool ()

	EditInfoTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)

bool	isInUse () const

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

	~EditInfoTool ()

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

Protected Member Functions
virtual void	saveGeometry (te::gm::Geometry *gm, const int &op)

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

te::map::AbstractLayer *	m_layer

Private Slots
void	onAttributesTreeWidgetItemDoubleClicked (QTreeWidgetItem *item, int column)

void	onCancelPushButtonPressed ()

void	onOkPushButtonPressed ()

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	getInfo (const te::gm::Envelope &e)

std::auto_ptr< te::dt::AbstractData >	getValue (int type, QString value) const

void	pickFeature (const te::map::AbstractLayerPtr &layer, const QPointF &pos)

void	reset ()

void	updateCursor ()

Private Attributes
std::map< std::size_t, te::dt::AbstractData * >	m_data

te::da::DataSet *	m_dataset
	The attributes dataset type. More...

QDialog *	m_dialog

bool	m_forceSearch

QTreeWidget *	m_infoWidget
	Widget used to show the informations. More...

std::vector< std::size_t >	m_restrictivePropertyPos

Detailed Description

Definition at line 32 of file EditInfoTool.h.

Constructor & Destructor Documentation

te::edit::EditInfoTool::EditInfoTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

te::edit::EditInfoTool::~EditInfoTool ( )

Member Function Documentation

te::gm::Envelope te::edit::EditInfoTool::buildEnvelope ( const QPointF & pos )

private

void te::edit::EditInfoTool::cancelEditionTool ( )

virtual

Reimplemented from te::edit::GeometriesUpdateTool.

void te::edit::EditInfoTool::draw ( )

private

void te::edit::GeometriesUpdateTool::endSelectCell	(	const std::string &	,
		const std::size_t &	,
		std::size_t &
	)

signalinherited

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

void te::edit::EditInfoTool::getInfo ( const te::gm::Envelope & e )

private

std::auto_ptr<te::dt::AbstractData> te::edit::EditInfoTool::getValue	(	int	type,
		QString	value
	)		const

private

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

virtual bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::qt::plugins::mnt::ShowValuesTool, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

bool te::edit::EditInfoTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

virtual bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Info, te::qt::widgets::Selection, te::edit::MoveGeometryTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::qt::widgets::PointPicker, and te::qt::widgets::ReadPixelTool.

void te::edit::EditInfoTool::onAttributesTreeWidgetItemDoubleClicked	(	QTreeWidgetItem *	item,
		int	column
	)

privateslot

void te::edit::EditInfoTool::onCancelPushButtonPressed ( )

privateslot

void te::edit::EditInfoTool::onOkPushButtonPressed ( )

privateslot

void te::edit::EditInfoTool::pickFeature	(	const te::map::AbstractLayerPtr &	layer,
		const QPointF &	pos
	)

private

void te::edit::EditInfoTool::reset ( )

private

virtual void te::edit::GeometriesUpdateTool::saveGeometry	(	te::gm::Geometry *	gm,
		const int &	op
	)

protectedvirtualinherited

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

void te::edit::EditInfoTool::updateCursor ( )

private

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

std::map<std::size_t, te::dt::AbstractData*> te::edit::EditInfoTool::m_data

private

Definition at line 72 of file EditInfoTool.h.

te::da::DataSet* te::edit::EditInfoTool::m_dataset

private

The attributes dataset type.

Definition at line 71 of file EditInfoTool.h.

QDialog* te::edit::EditInfoTool::m_dialog

private

Definition at line 74 of file EditInfoTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 89 of file GeometriesUpdateTool.h.

bool te::edit::EditInfoTool::m_forceSearch

private

Definition at line 76 of file EditInfoTool.h.

QTreeWidget* te::edit::EditInfoTool::m_infoWidget

private

Widget used to show the informations.

Definition at line 75 of file EditInfoTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 87 of file GeometriesUpdateTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 90 of file GeometriesUpdateTool.h.

std::vector<std::size_t> te::edit::EditInfoTool::m_restrictivePropertyPos

private

Definition at line 73 of file EditInfoTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/edit/qt/tools/EditInfoTool.h
